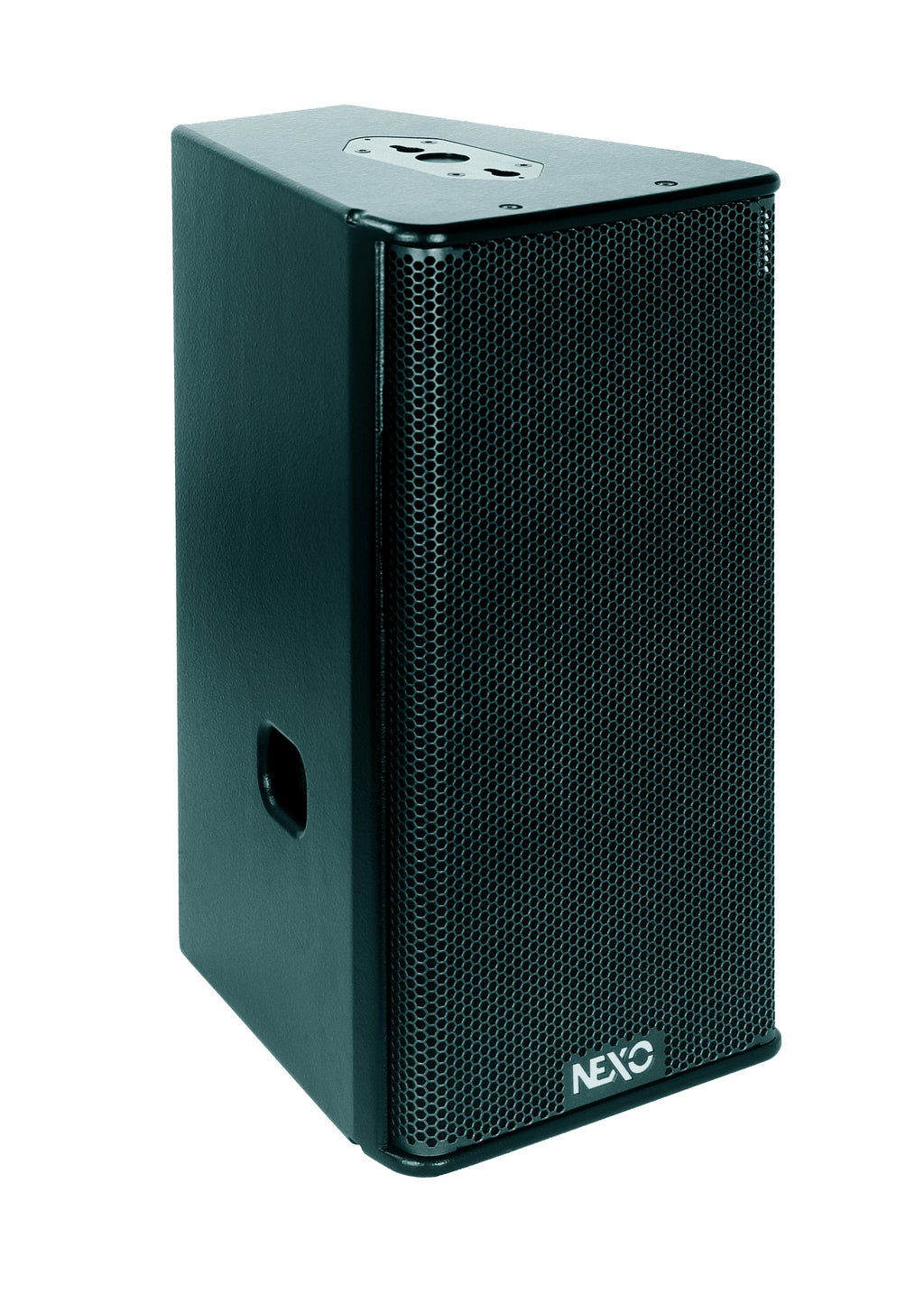

NEXO GEO S1230 12-inch 2-Way Horn-Loaded Loudspeaker, Black

The NEXO GEO S1230 is a compact, 2-way loudspeaker cabinet combining a 12-inch (30 cm) high excursion neodymium driver with a 3-inch voice coil, 1.4-inch throat HF driver, built on NEXO's Advanced GEO Hyperbolic Wavesource for coherent wave propagation.

With a frequency response of 53Hz – 19kHz ±3dB, 103 dB sensitivity and 131 dB maximum SPL, the cabinet delivers scalable high-output performance suited to applications from theatre to arena scale, fixed or mobile. Horizontal dispersion is configurable between 80° and 120°, with a 28.5° coupling plane for predictable array coverage.

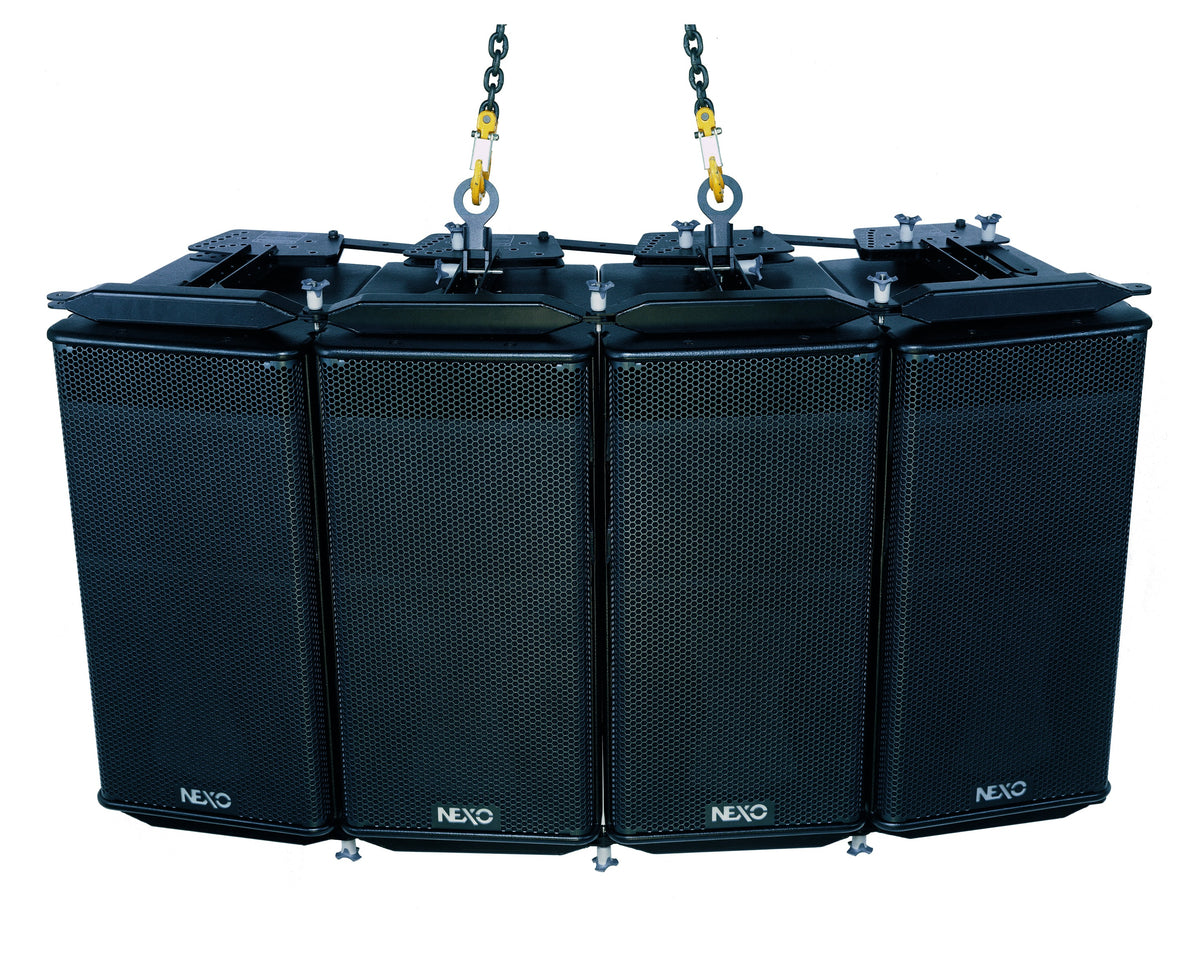

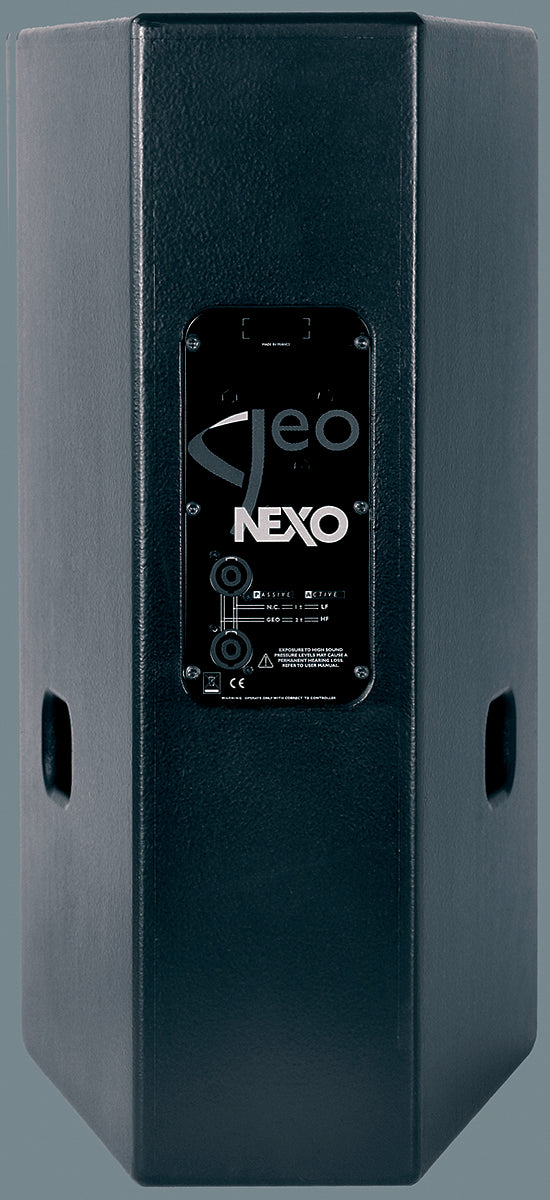

Connectivity is via 2x NL4MP Speakon 4-pole connectors (In & Through), with a recommended amplifier power of 900 W into a 16 ohm nominal impedance. The cabinet can be configured with GeoSoft2 over an EtherSound network, and an integral rigging system allows angles from 22.5° to 30° for flown or ground-stacked arrays.

• 12-inch neodymium LF driver with 1.4-inch throat HF driver
• 131 dB maximum SPL, 103 dB sensitivity
• Configurable 80°/120° horizontal dispersion
• 900 W recommended power, 16 ohm nominal impedance
• Baltic Birch ply cabinet with structured black coating, 26.8 kg
