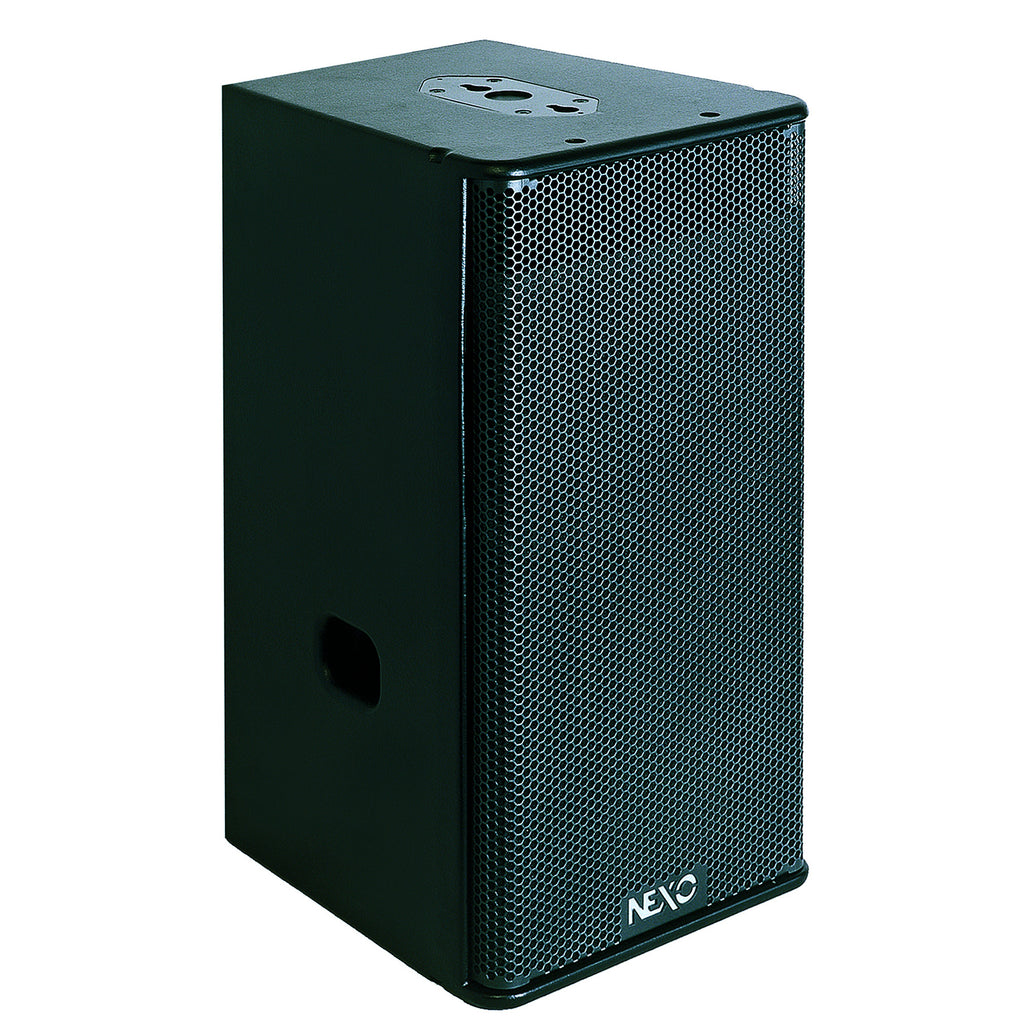

NEXO GEO S1210-ST 12-inch 2-Way Line Array Element, Stadium Black

The NEXO GEO S1210-ST is a compact, 2-way line array element and a high-output, long-throw version of the standard GEO S1210 cabinet, purpose-built for stadium installations where extended throw and speech intelligibility are required.

The cabinet combines a 3-inch voice coil, 1.4-inch throat 16Ω neodymium HF driver mounted on a 5° hyperboloid reflective wavesource with a 12-inch (30 cm) high excursion neodymium LF driver, delivering a frequency response of 53 Hz – 19 kHz ±3 dB and 105 dB sensitivity. Non-coupling plane dispersion is configurable between 80° and 120°, while coupling plane coverage depends on the array configuration.

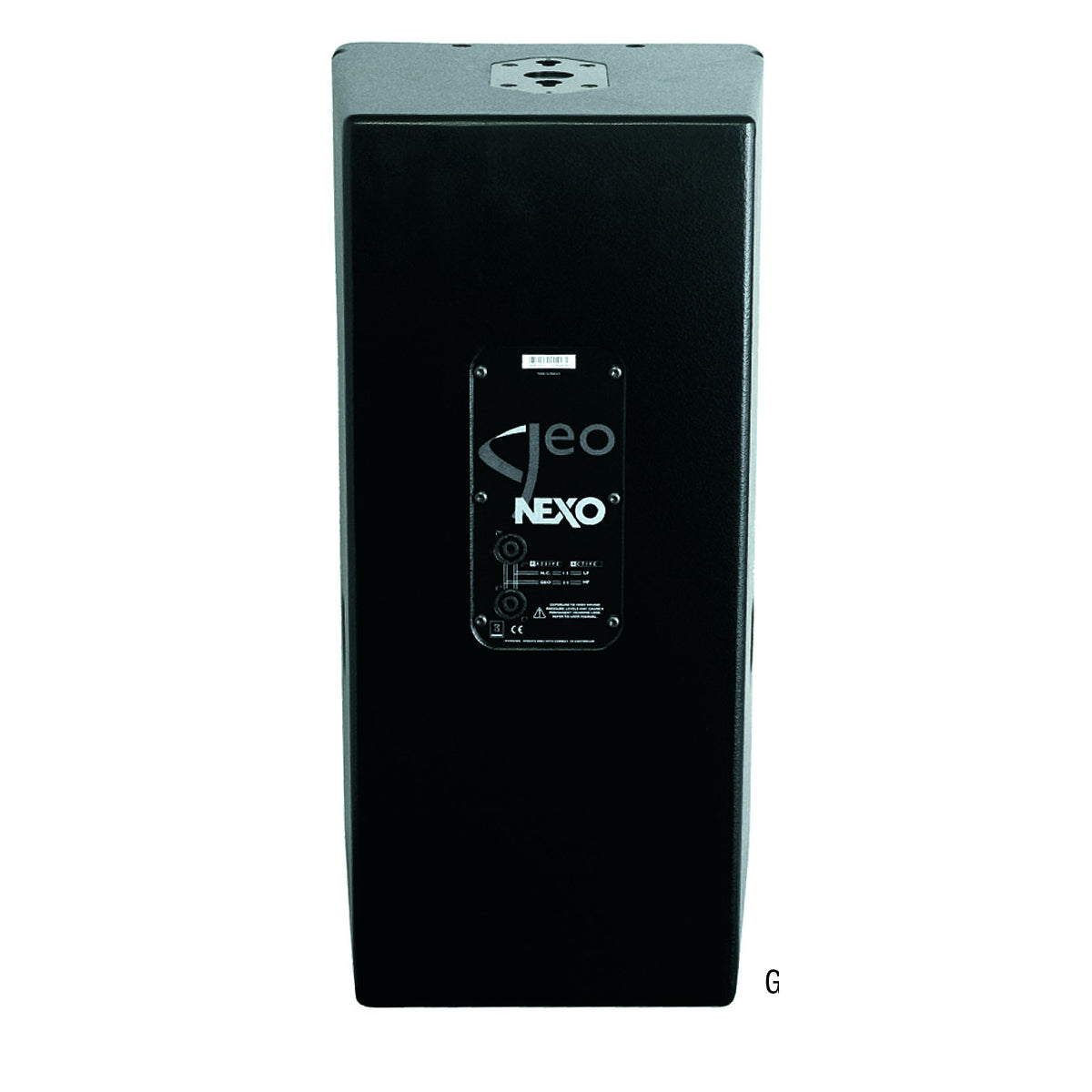

Connectivity is via 2x NL4MP Speakon 4-pole connectors (In & Through), and the system supports NS-1 configurable control over an EtherSound network for flexible system tuning and monitoring.

• 2-way line array element, 12-inch LF neodymium driver
• Hyperbolic Wavesource HF horn, 5° curvature
• Frequency response 53 Hz – 19 kHz ±3 dB, 105 dB sensitivity
• Configurable 80°/120° non-coupling plane dispersion
• Baltic Birch ply enclosure, structured black coating, 28.05 kg
