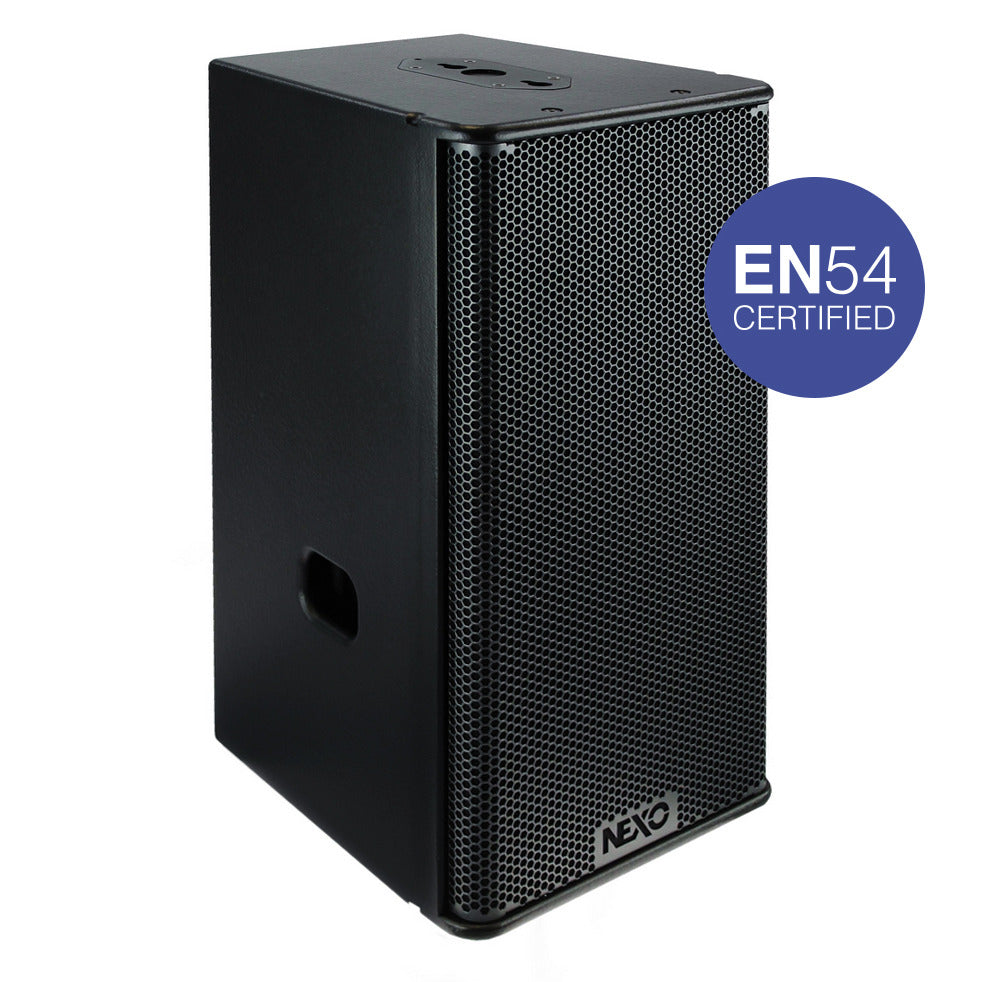

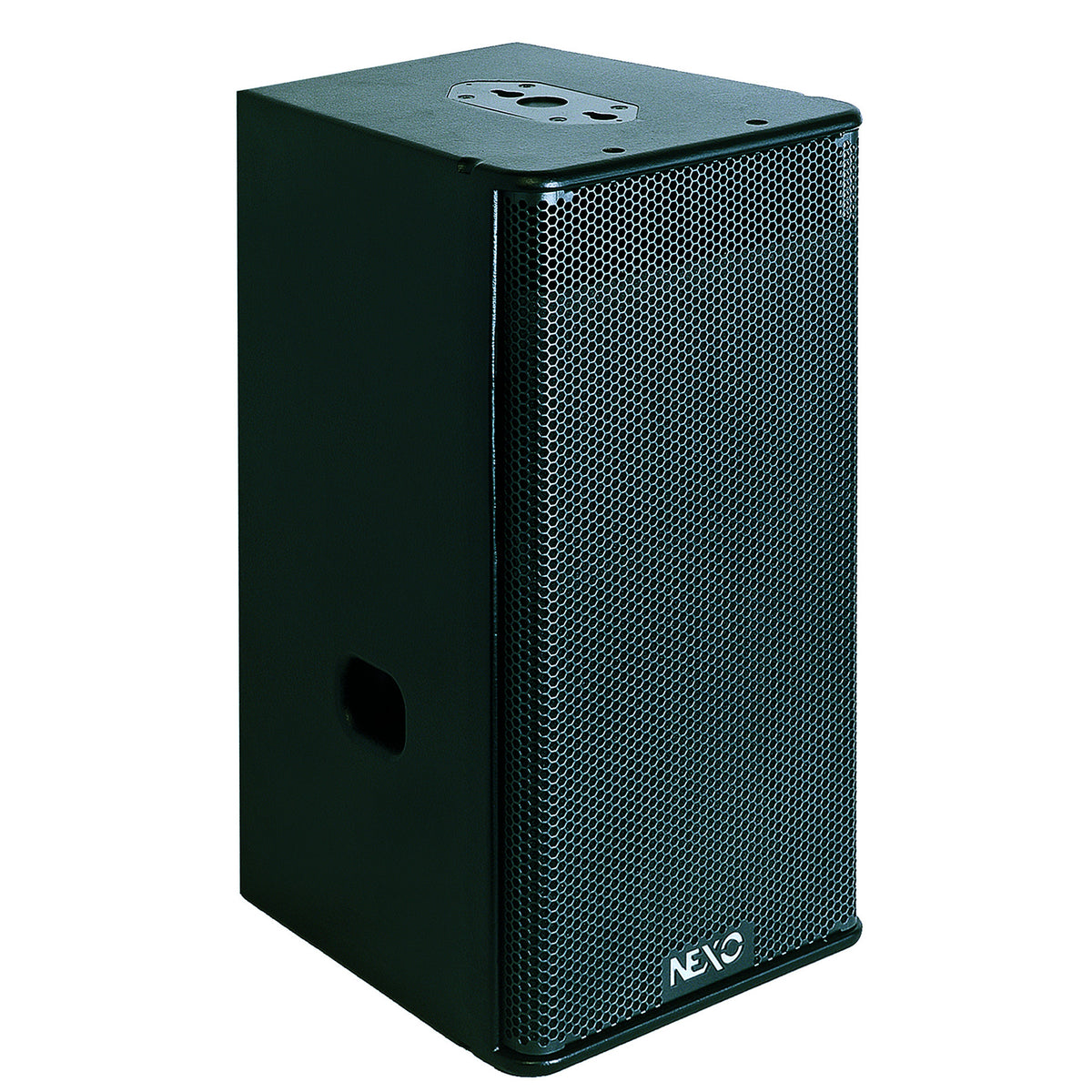

NEXO GEO S1210-ST 12-inch 2-Way Horn-Loaded Loudspeaker, Black

The NEXO GEO S1210-ST is a compact, high-output 2-way loudspeaker cabinet developed as a long-throw version of the standard GEO S1210, intended for stadium and large-venue installations where extended throw distance and high SPL are required.

The cabinet combines a 12-inch (30cm) high excursion neodymium LF driver with a 3-inch voice coil, 1.4-inch throat neodymium HF compression driver mounted on a 5° hyperboloid reflective wavesource, delivering coherent wave propagation and enhanced speech intelligibility across a 53Hz – 19kHz ±3dB frequency response at 105 dB sensitivity. Horizontal dispersion is configurable at 80° or 120°, while vertical coupling is configuration dependent for array flexibility.

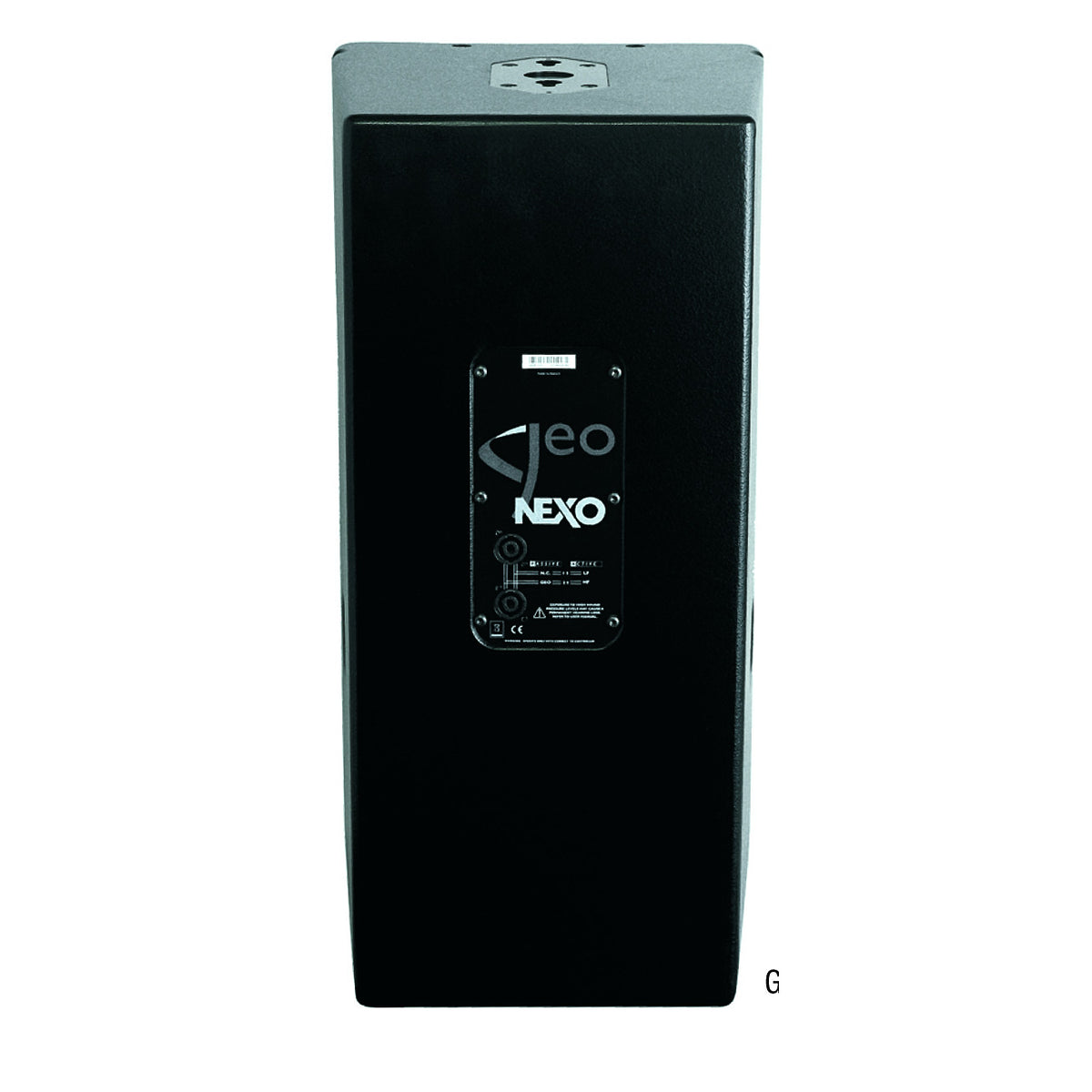

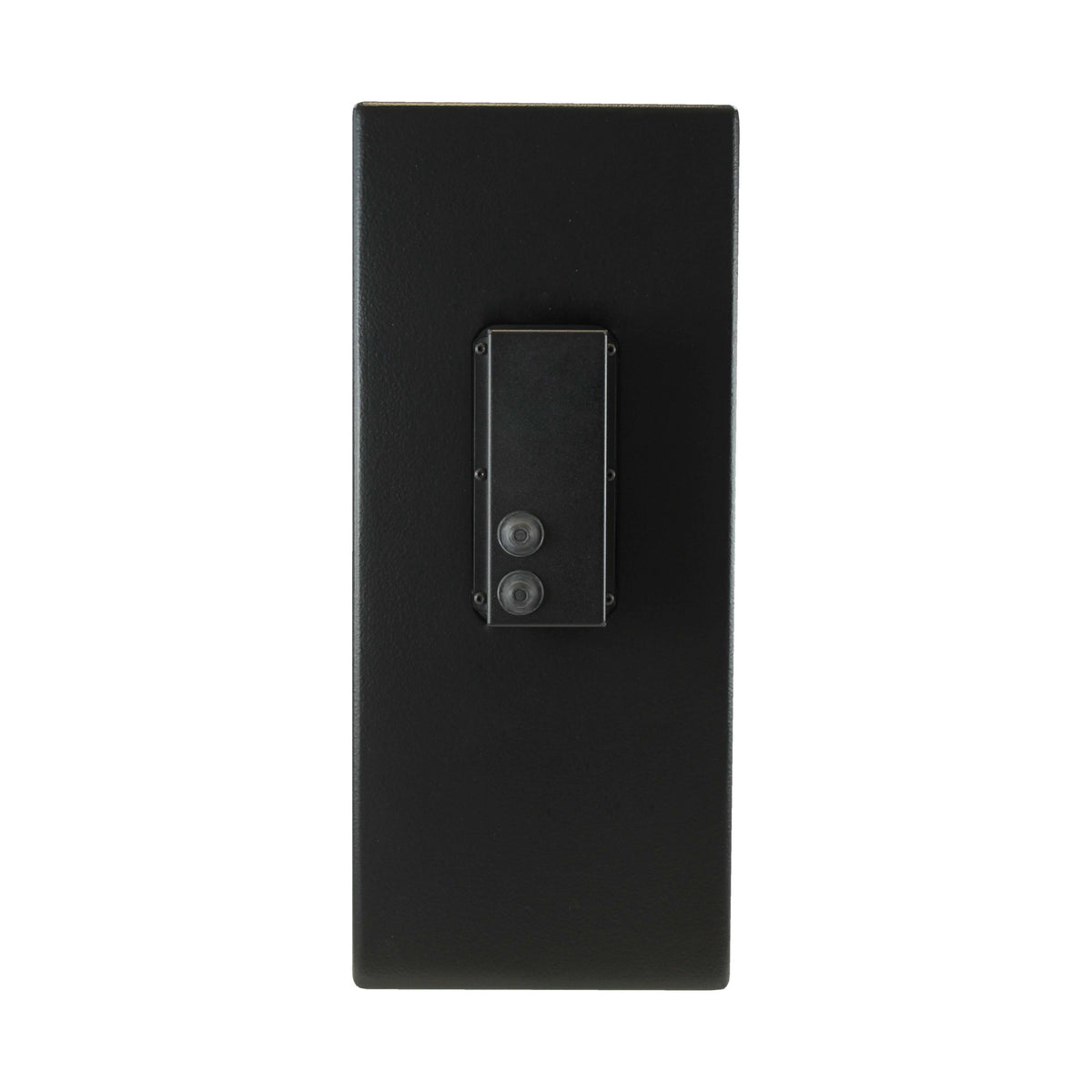

Connectivity is provided via 2x NL4MP Speakon 4-pole connectors for in and through wiring, with NS-1 configurable control over an EtherSound network for system management. The enclosure is built from Baltic birch ply with a structured black coating, measuring 675 x 344 x 378 mm and weighing 28.05 kg.

• 12-inch neodymium LF driver with 3-inch voice coil HF compression driver
• 5° hyperboloid wavesource for coherent wave propagation
• Configurable 80°/120° horizontal dispersion
• 53Hz – 19kHz ±3dB frequency response, 105 dB sensitivity
• NS-1 configurable via EtherSound network
