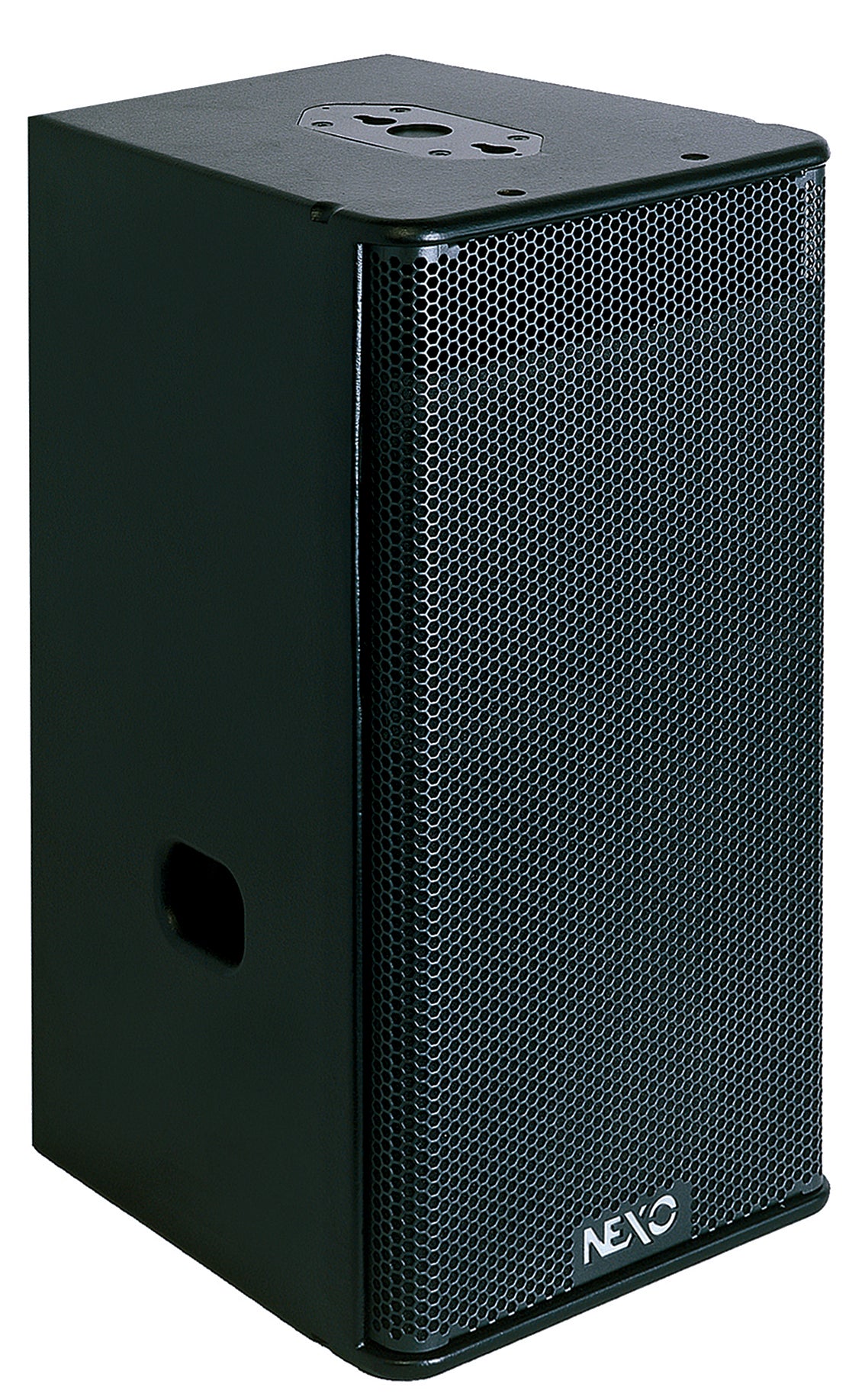

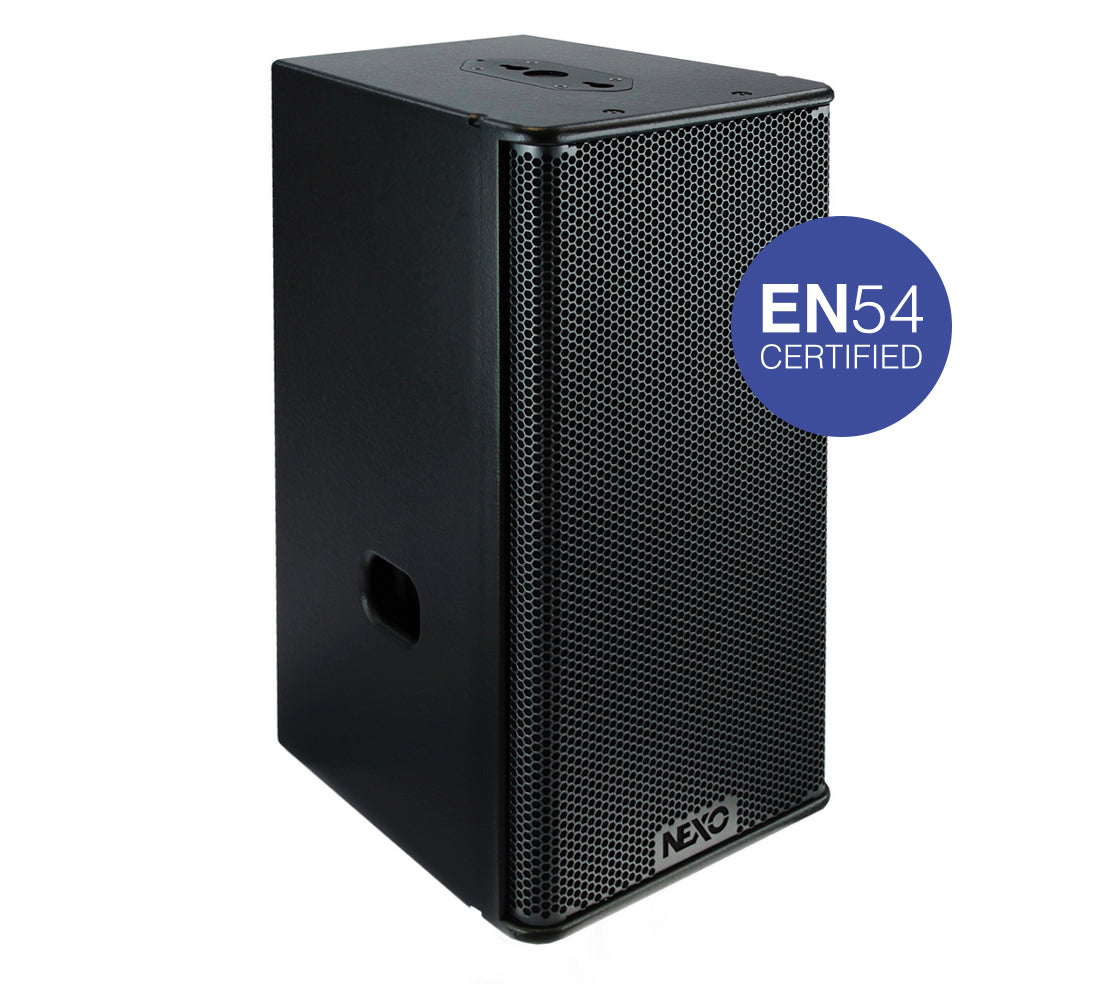

NEXO GEO S1210 EN54 12-inch Horn-Loaded 2-Way Loudspeaker, Black

The NEXO GEO S1210 EN54 is a compact, 2-way horn-loaded loudspeaker cabinet designed for scalable, high-output sound reinforcement, with this EN54 variant intended for life-safety and evacuation sound applications.

The cabinet combines a 3-inch voice coil, 1.4-inch throat compression driver on a 5° hyperboloid reflective wavesource with a 12-inch high-excursion neodymium woofer, delivering a frequency response of 53 Hz – 19 kHz ±3 dB and a sensitivity of 103 dB. Non-coupling plane dispersion is configurable between 80° and 120°, while coupling plane behaviour depends on the chosen array configuration.

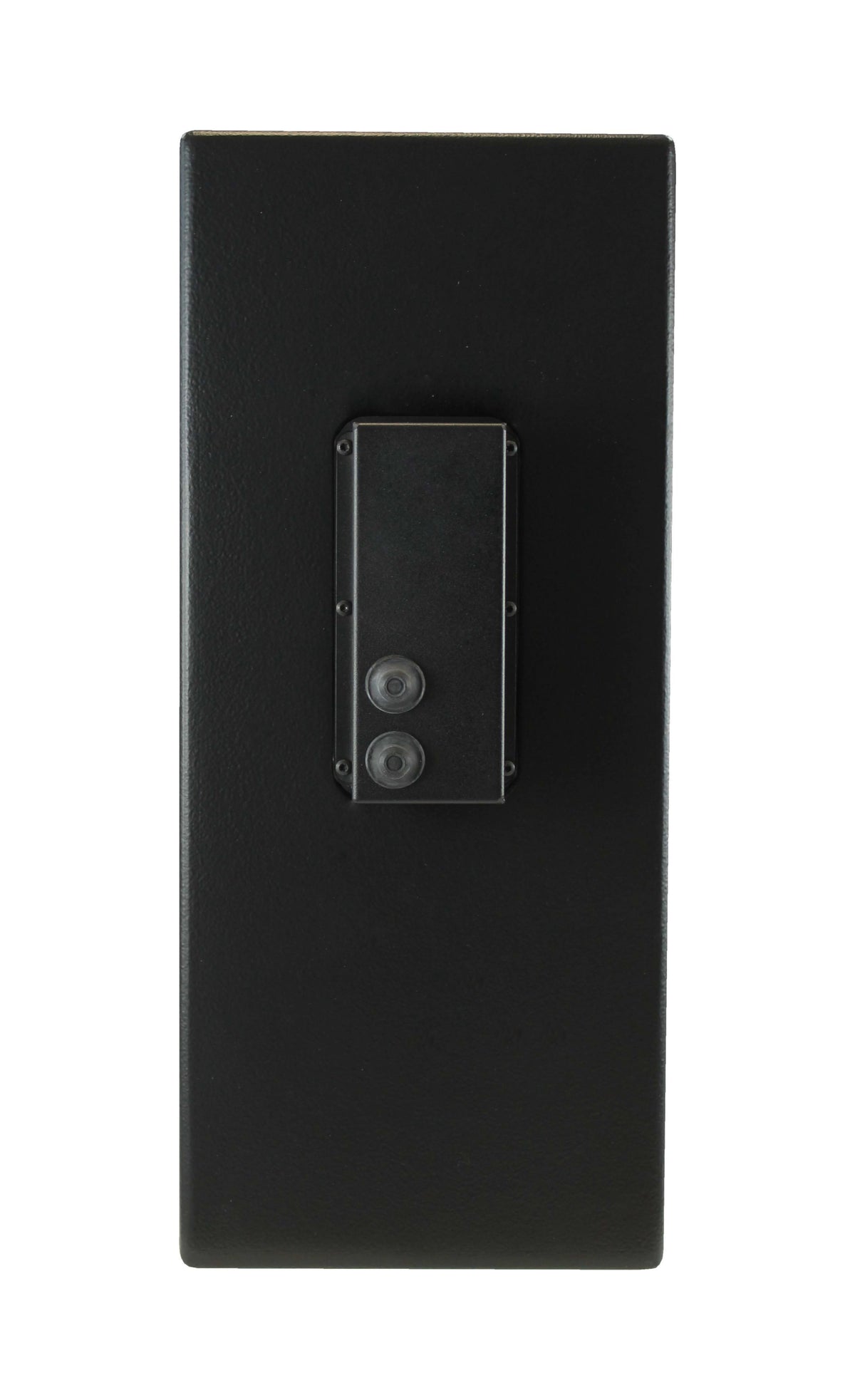

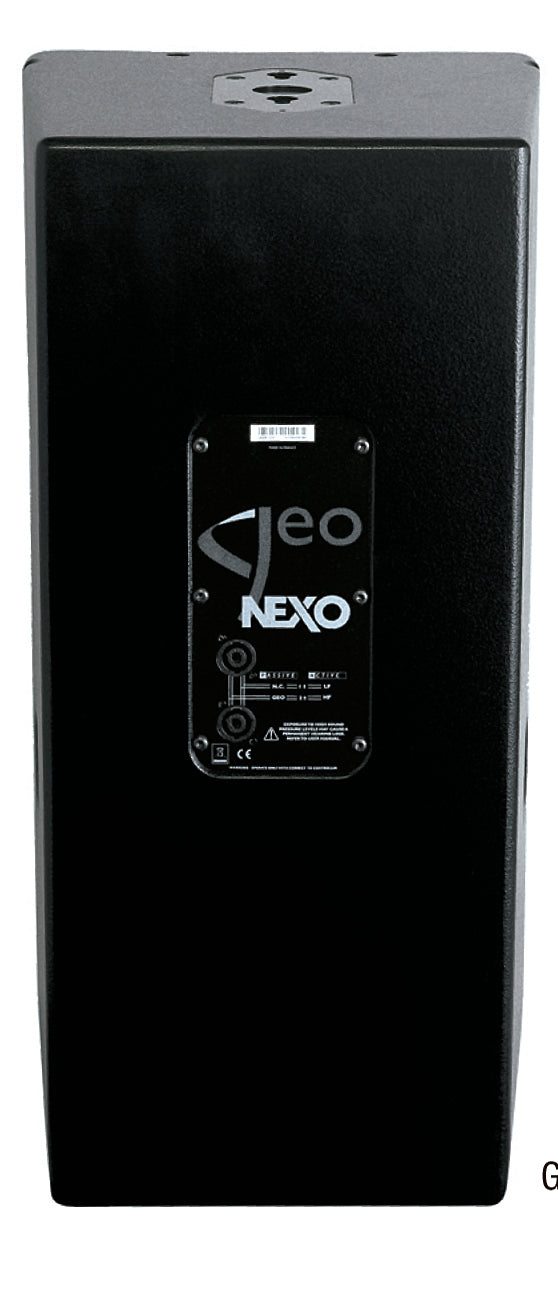

Connectivity is via 2x NL4MP Speakon 4-pole connectors (In & Through), with system control through GeoSoft2 over an EtherSound network. An integral rigging system allows angles from 0.20° to 10° for flexible array configurations, and the enclosure is built from Baltic Birch ply with a structured black coating.

• 2-way horn-loaded design, 12-inch woofer
• 103 dB sensitivity, 16 ohm nominal impedance
• Configurable 80°/120° dispersion

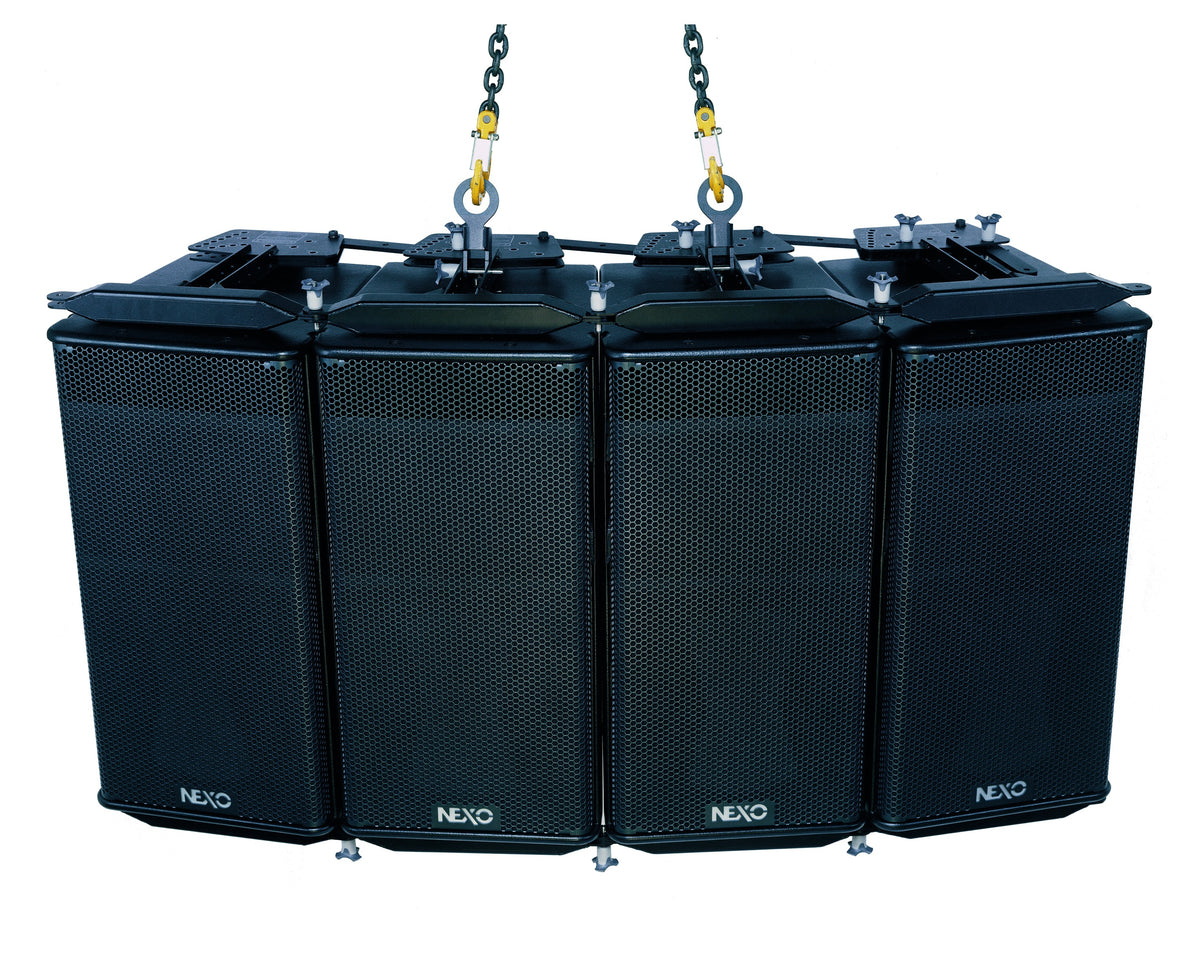

• Integral rigging, 0.20°–10° angles
• Dimensions 674 x 344 x 378 mm, 28.05 kg
