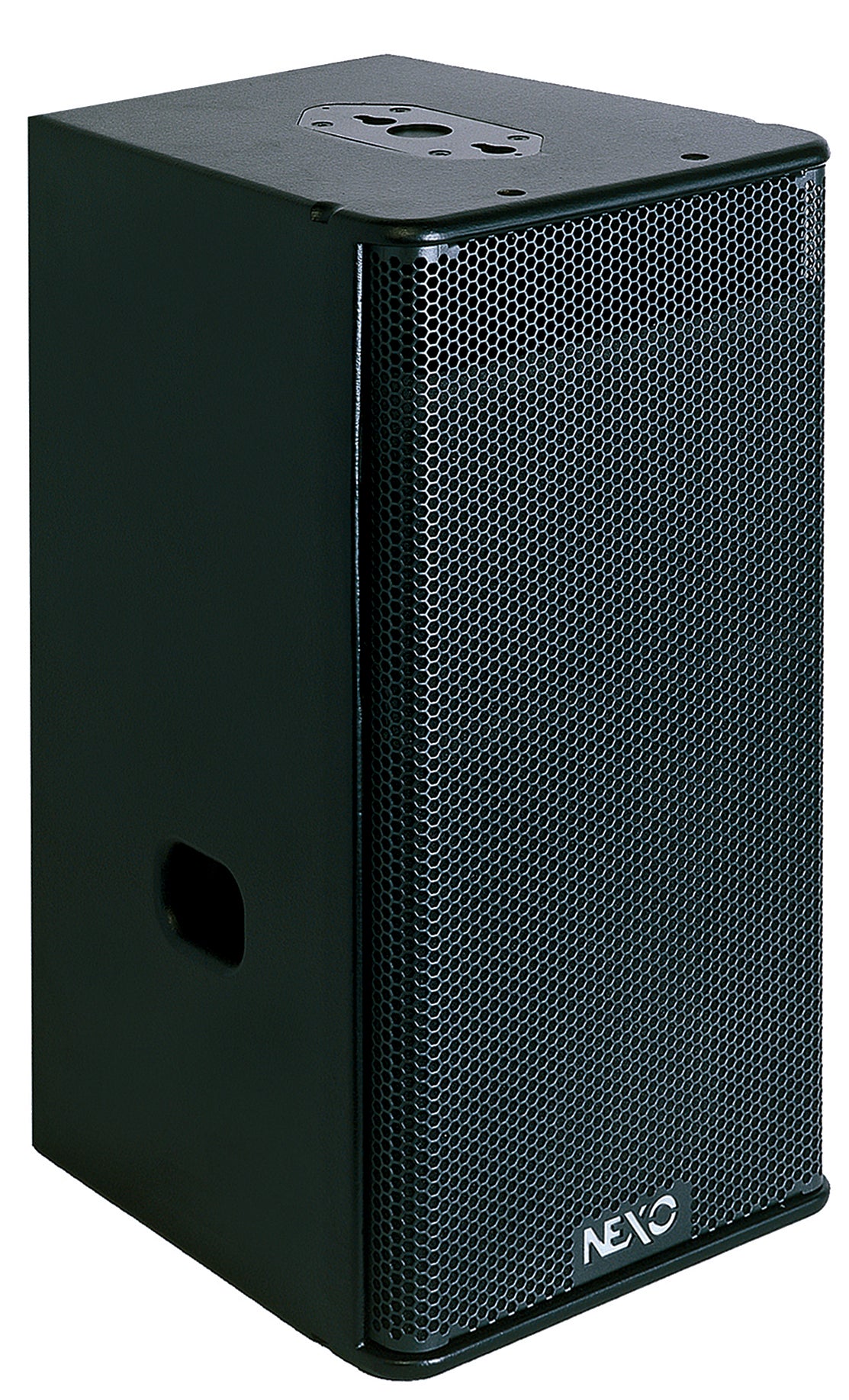

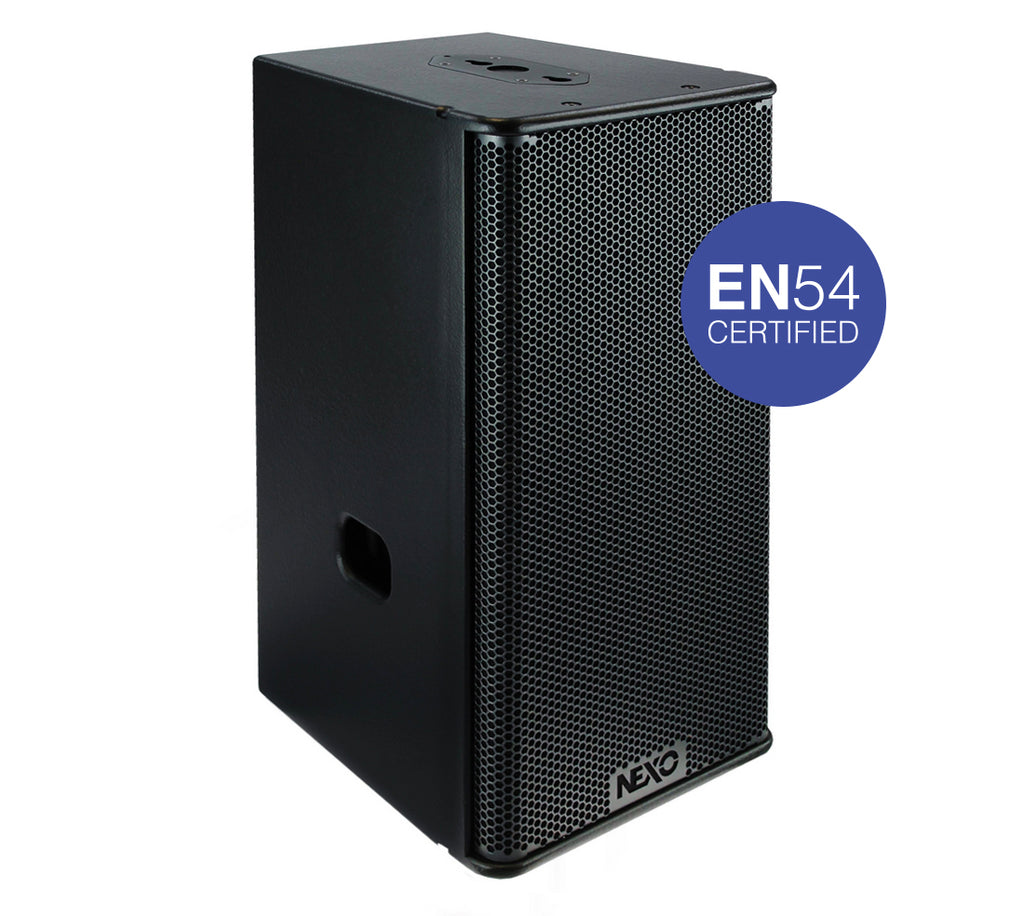

NEXO GEO S1210-CP 12-inch 2-Way Horn-Loaded Loudspeaker, Black

The NEXO GEO S1210-CP is a compact, 2-way loudspeaker module from the GEO S12 series, built for scalable, high-output sound reinforcement in touring and fixed installation applications ranging from theatres to arenas.

The cabinet combines a 12" (30cm) high excursion neodymium driver with a 3" voice coil, 1.4" throat compression driver mounted on a 5° hyperboloid reflective wavesource, delivering a frequency response of 53 Hz – 19 kHz ±3 dB and a sensitivity of 103 dB. Horizontal dispersion is configurable at 80° or 120°, while coupling-plane coverage depends on array configuration, allowing coherent wave propagation across large-scale deployments.

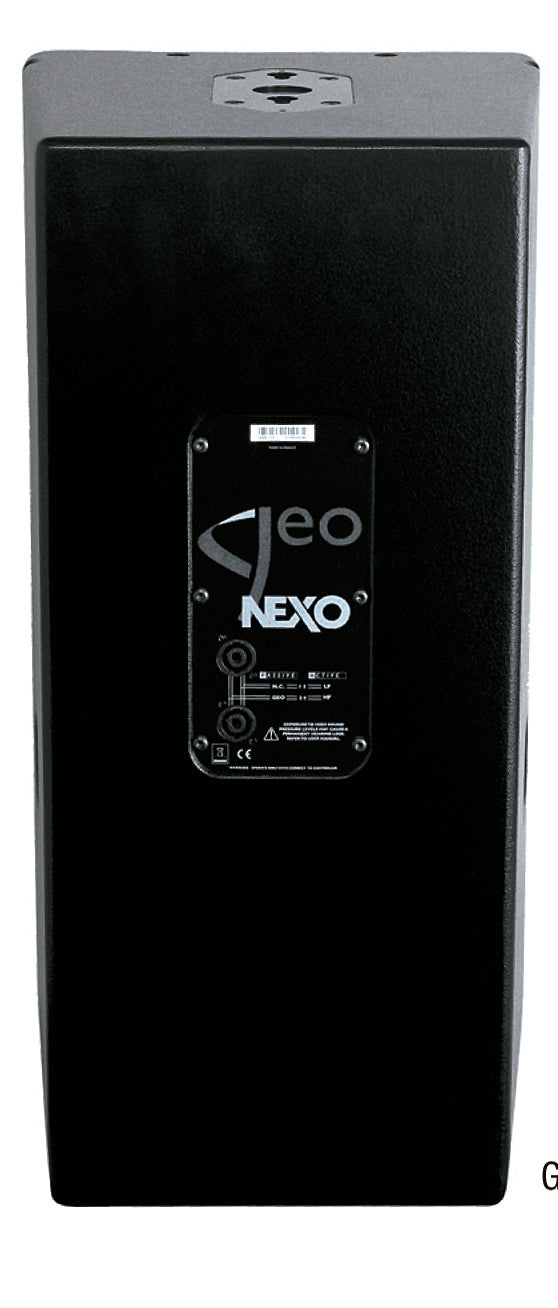

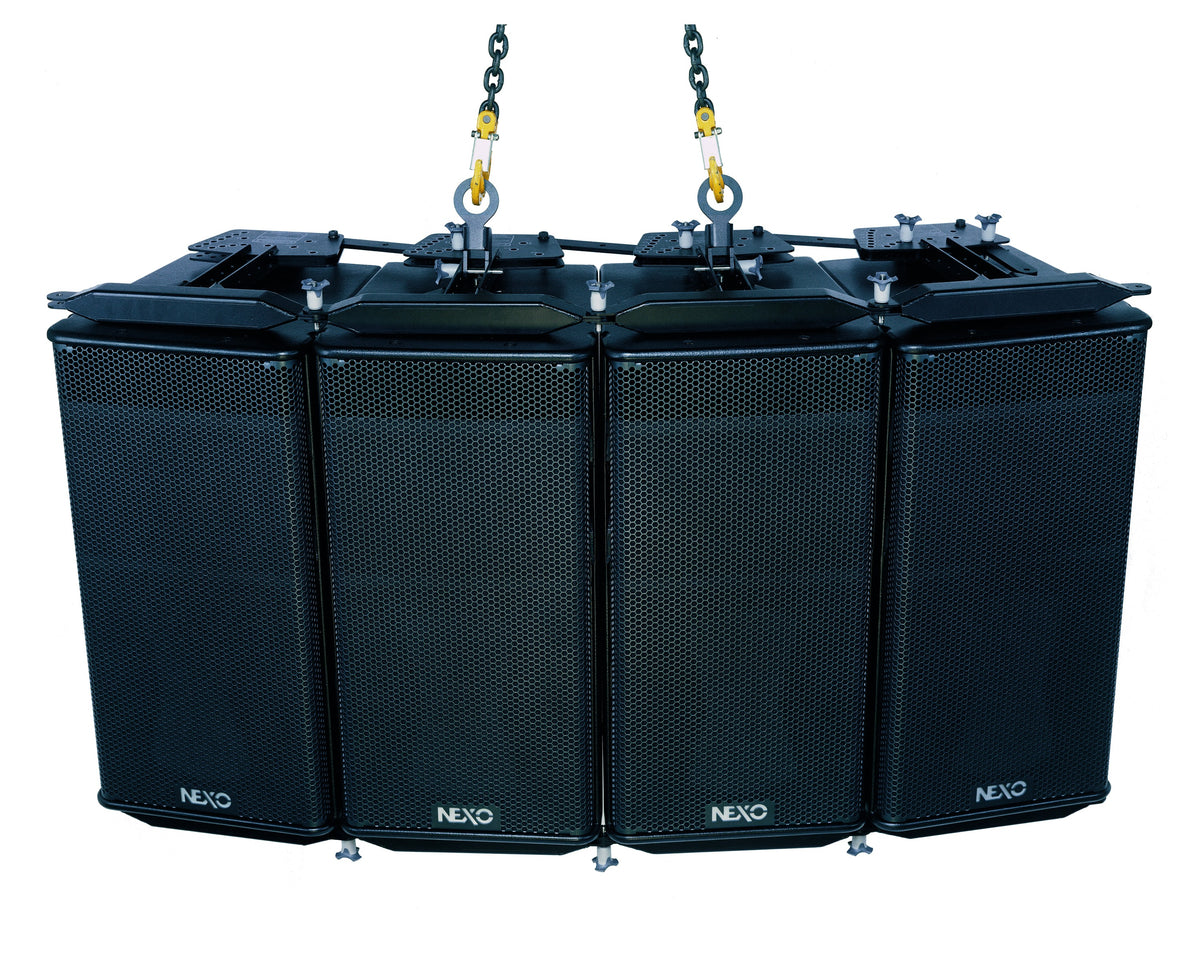

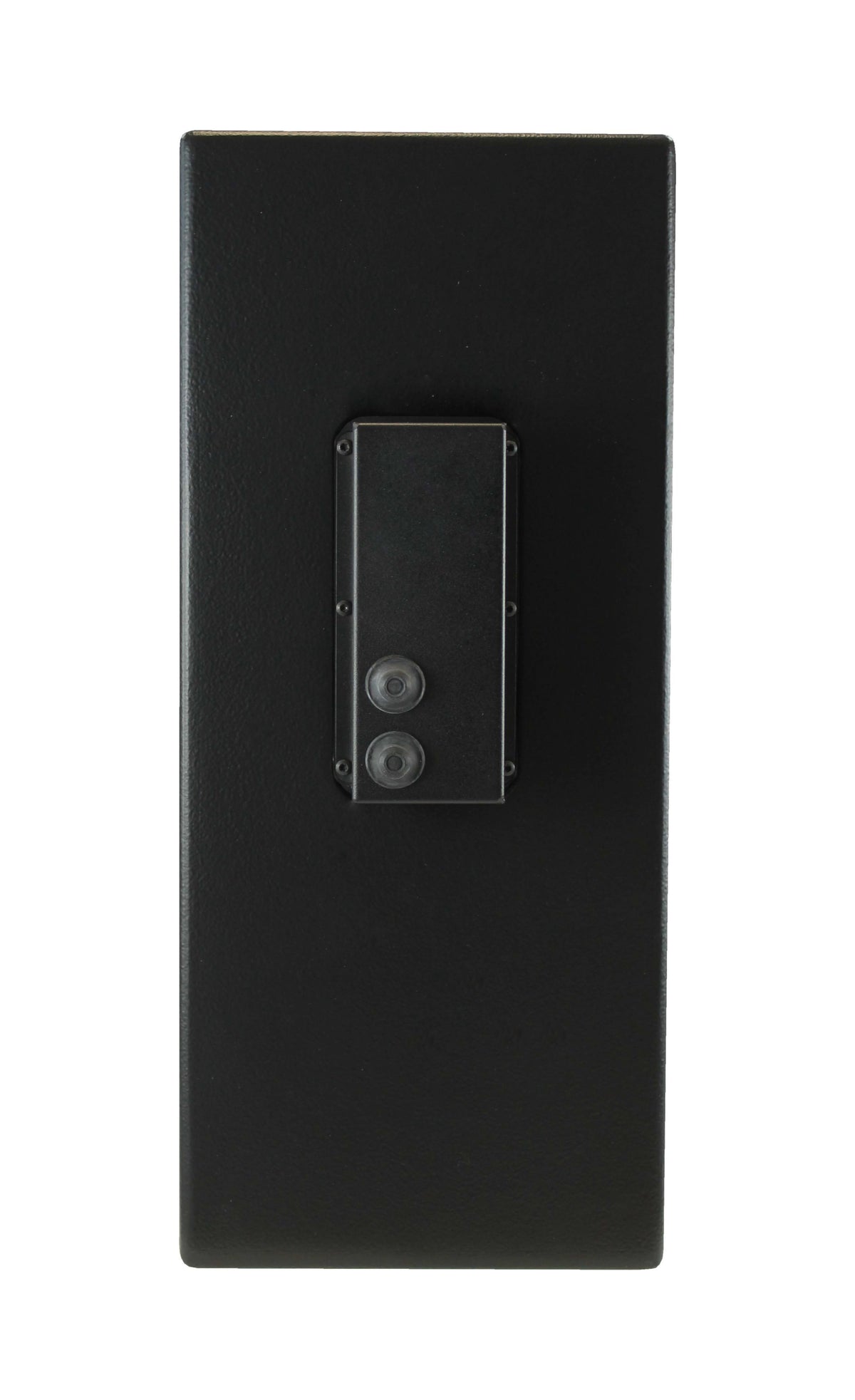

Connectivity is provided via 2x NL4MP Speakon 4-pole connectors for input and through-wiring, with system control managed through GeoSoft2 software over an EtherSound network. An integral rigging system allows angles from 0.20° to 10° between cabinets for flexible array building.

• Driver configuration: 1x 12" LF/MF + 1x 3" HF compression driver
• Frequency response: 53 Hz – 19 kHz ±3 dB
• Sensitivity: 103 dB, 16 Ω nominal impedance
• Recommended power: 1750 W
• Dimensions: 674 x 344 x 378 mm, 28.05 kg

The cabinet is finished in Baltic Birch ply with a structured black coating and is backed by a 2-year warranty.
