NEXO GEO S1210 12-inch 2-Way Point Source Loudspeaker, Custom, Black

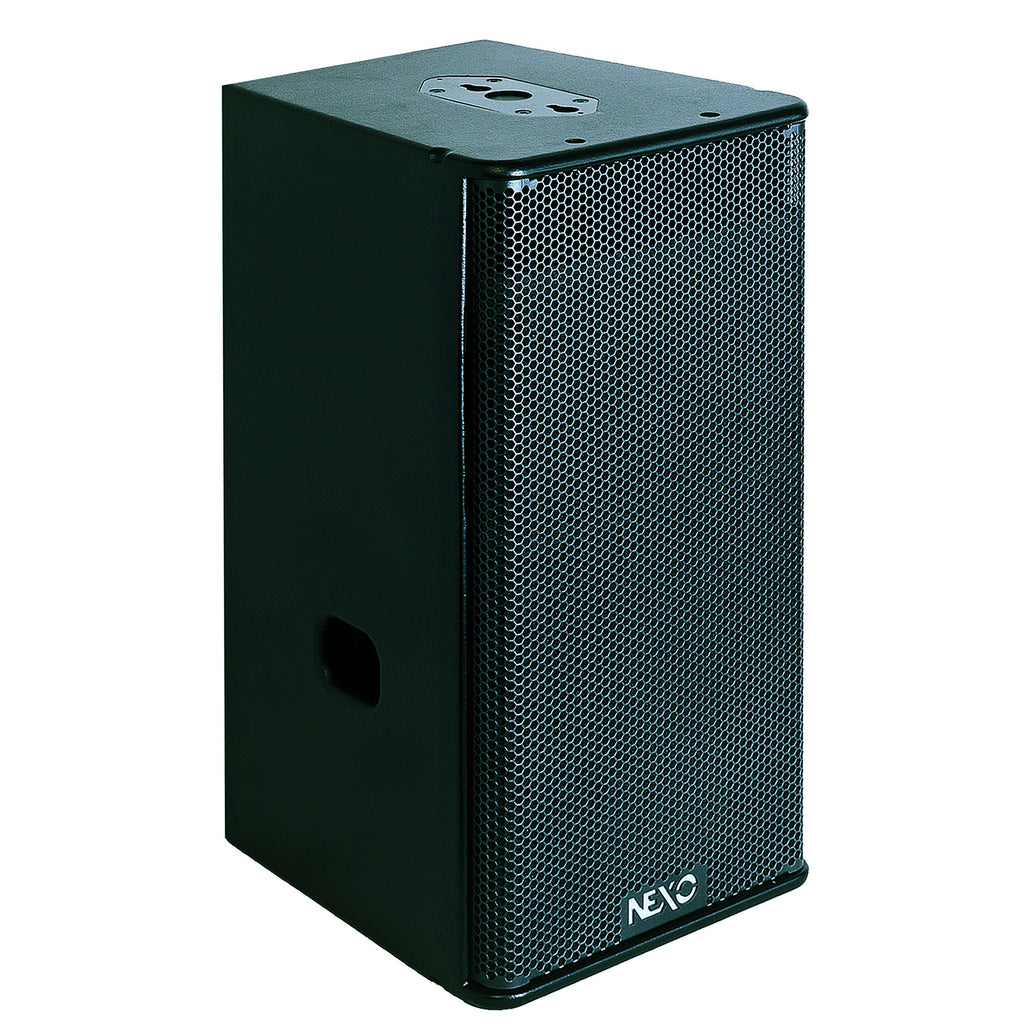

The NEXO GEO S1210 is a compact, 2-way point source loudspeaker module designed for scalable high-output applications, from theatre to arena-sized fixed and mobile installations. This custom cabinet variant (01GEOS1210-CP) retains the standard GEO S1210 acoustic architecture within a Baltic Birch plywood enclosure finished in structured black coating.

The module combines a 12" (30 cm) high excursion neodymium MF/LF driver with a 3" voice coil, 1.4" throat HF compression driver mounted on a 5° hyperboloid reflective wavesource, delivering a frequency response of 53 Hz – 19 kHz ±3 dB and a sensitivity of 103 dB. Non-coupling plane dispersion is configurable between 80° and 120°, while coupling plane behaviour depends on array configuration.

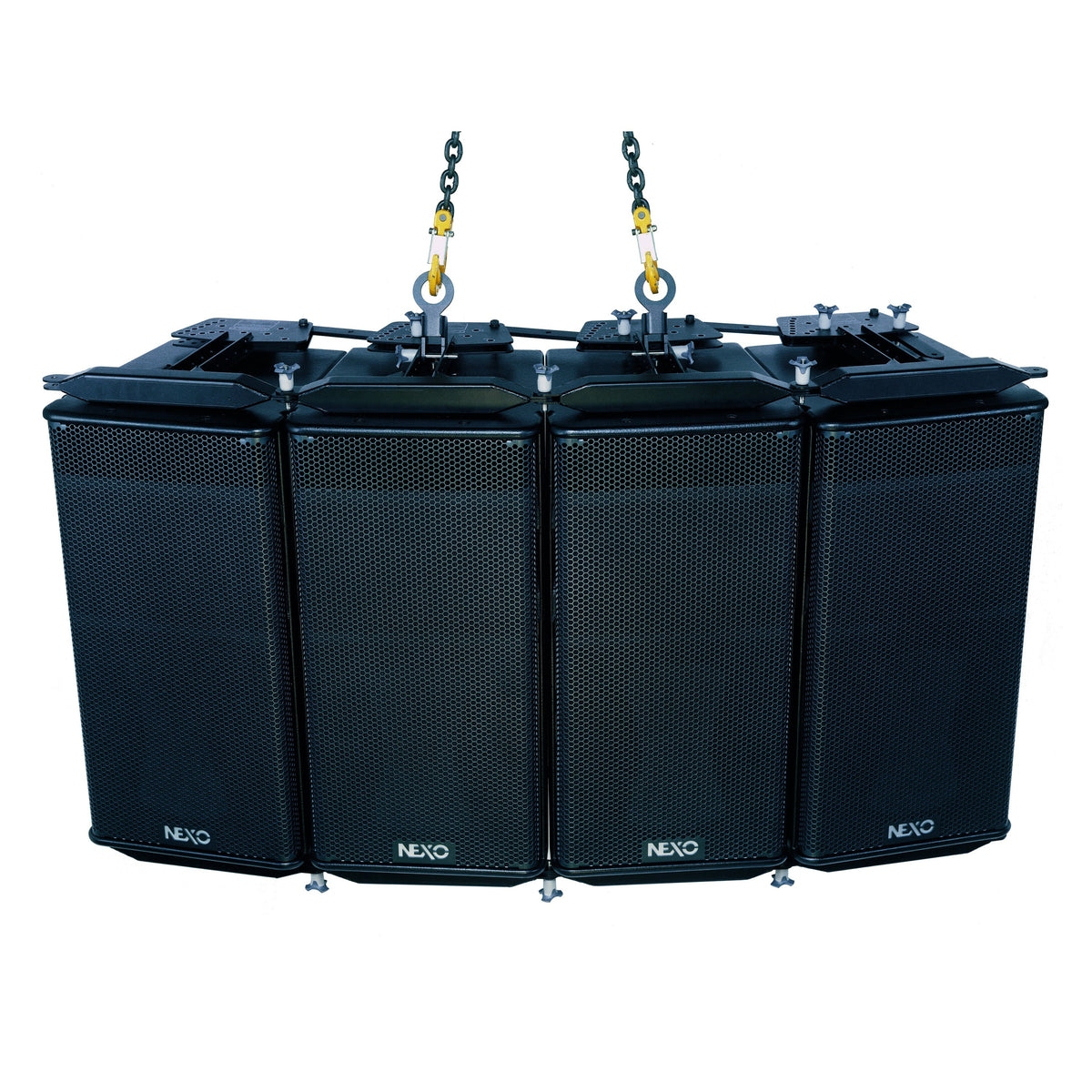

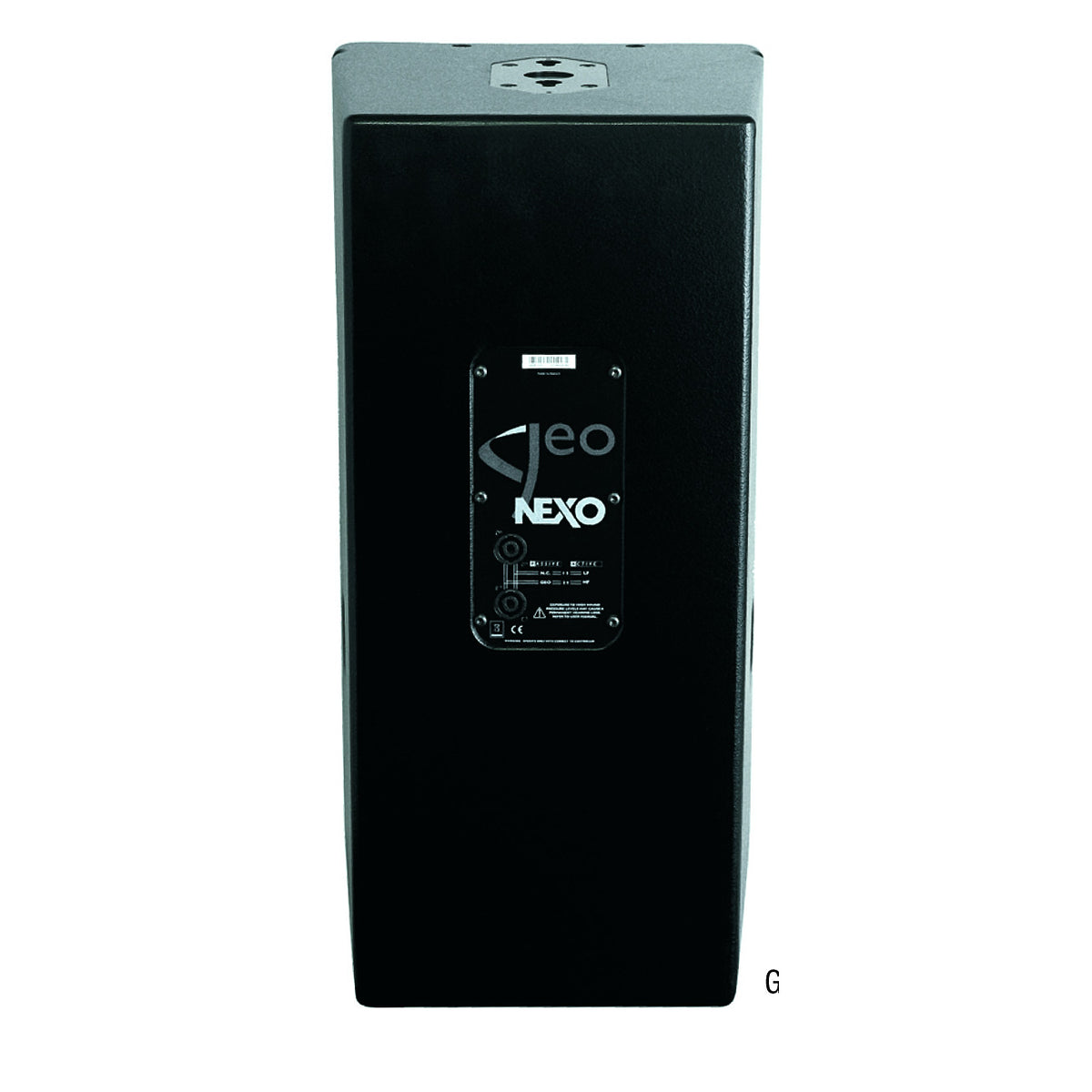

Connectivity is provided via 2x NL4MP Speakon 4-pole connectors (In & Through), with system control and configuration handled through EtherSound network and GeoSoft2 software. An integral rigging system allows angles from 0.20° to 10° for flexible array building.

• Frequency response: 53 Hz – 19 kHz ±3 dB
• Sensitivity: 103 dB
• Nominal impedance: 16 Ω, recommended power 1,750 W
• Dimensions: 674 x 344 x 378 mm, 28.05 kg
• 2-year warranty
