NEXO GEO S1210 12-inch 2-Way Loudspeaker, Black

The NEXO GEO S1210 is a compact, scalable 2-way loudspeaker cabinet designed for touring and fixed installation applications ranging from theatre to arena-sized venues. It pairs a 12-inch high excursion neodymium driver for mid/low frequencies with a 3-inch voice coil, 1.4-inch throat compression driver mounted on a 5° hyperboloid reflective wavesource for high frequencies.

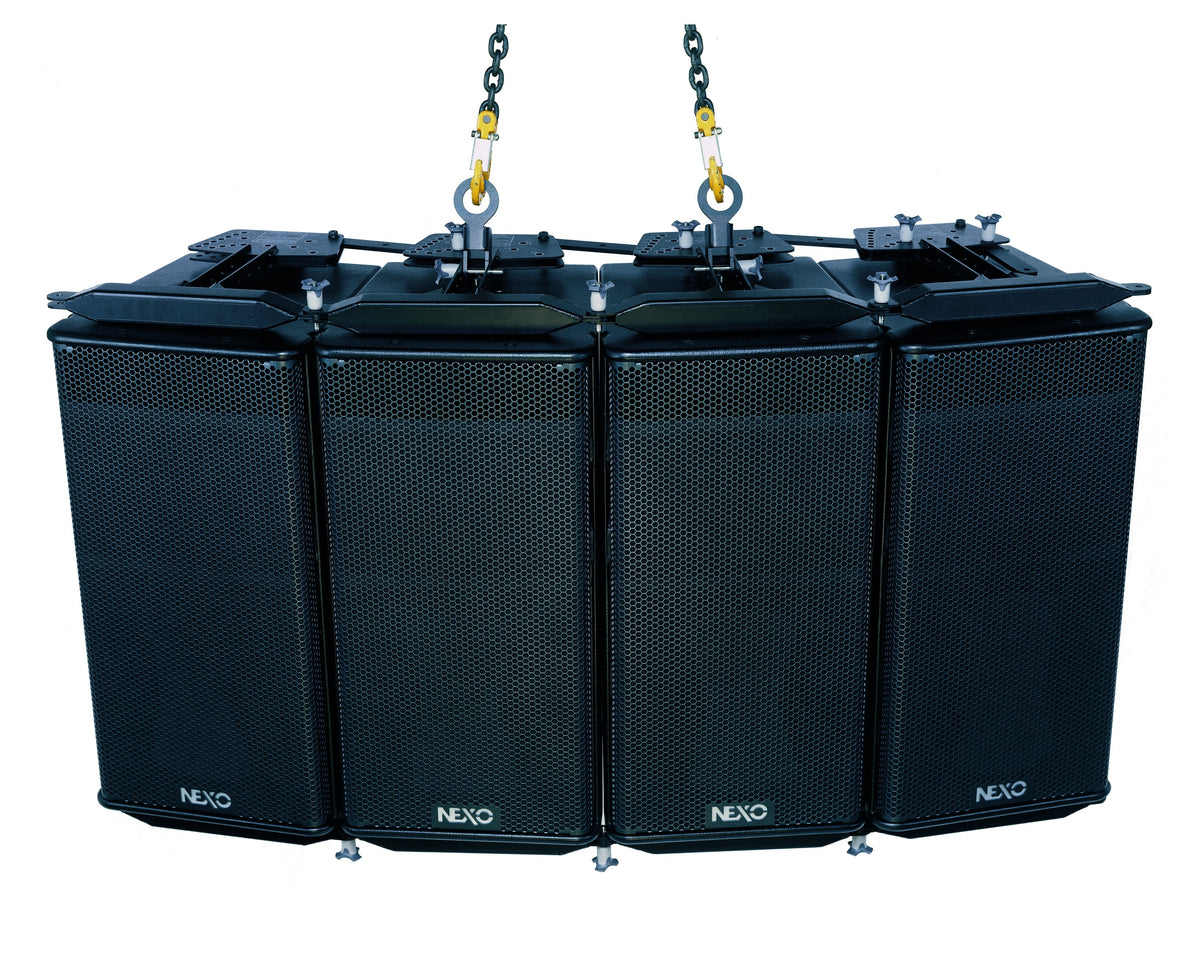

The cabinet delivers 103 dB sensitivity and accepts up to 1,550 W of recommended amplifier power, with a frequency response of 53Hz – 19kHz ±3dB. Horizontal dispersion is configurable between 80° and 120° in the non-coupling plane, and an integral rigging system allows cabinet angles from 0.20° to 10° for building arrays.

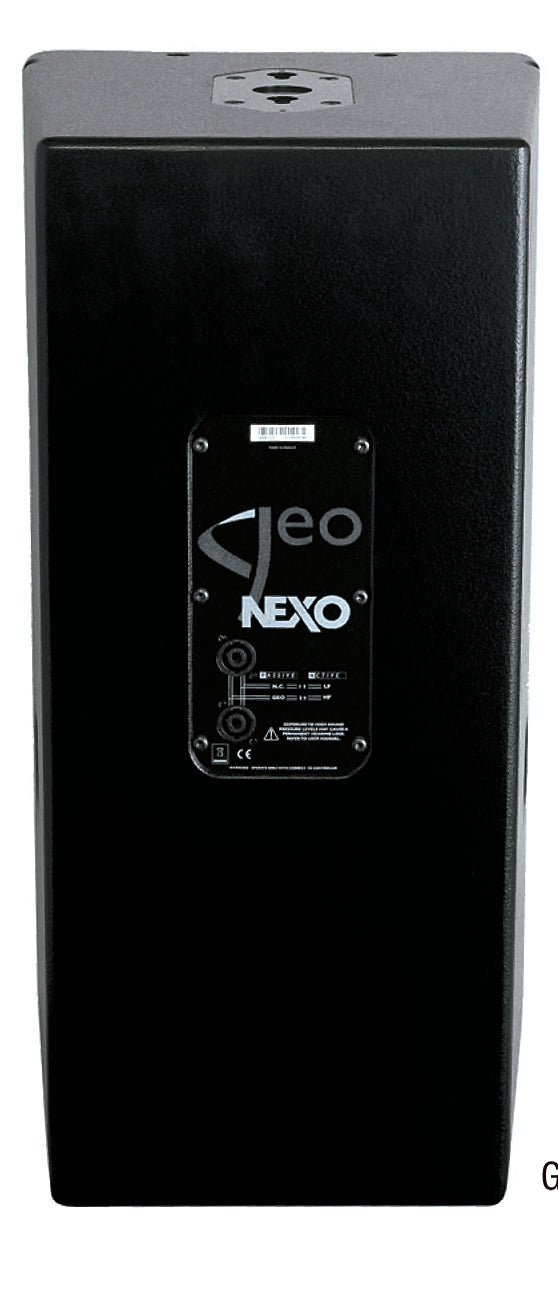

Connectivity is via 2x NL4MP Speakon 4-pole connectors (in & through), with system control through GeoSoft2 configuration software, EtherSound networking and the NEXO TDcontroller. The enclosure is built from Baltic birch plywood with a structured black coating and is covered by a 2-year warranty.

• 12-inch neodymium MF/LF driver with hyperboloid HF wavesource
• 103 dB sensitivity, 16 Ω nominal impedance
• 1,550 W recommended amplifier power
• Configurable 80°/120° dispersion
• Dimensions 674 x 344 x 378 mm, 28.05 kg
