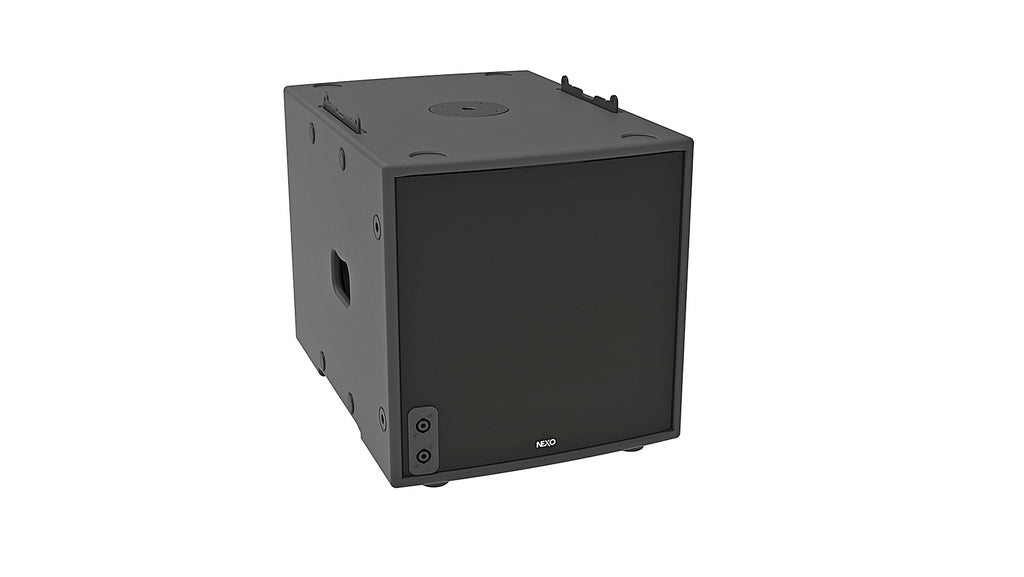

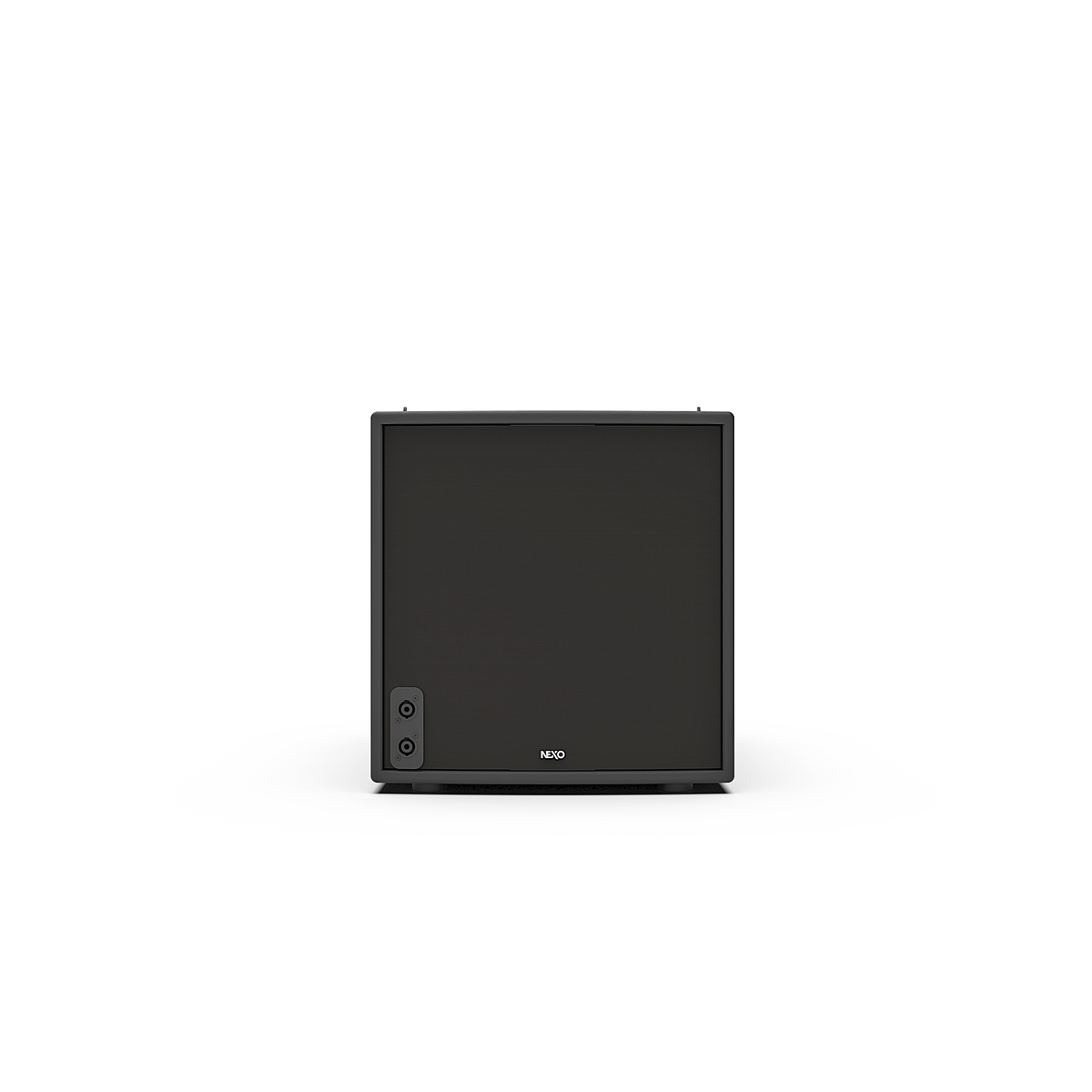

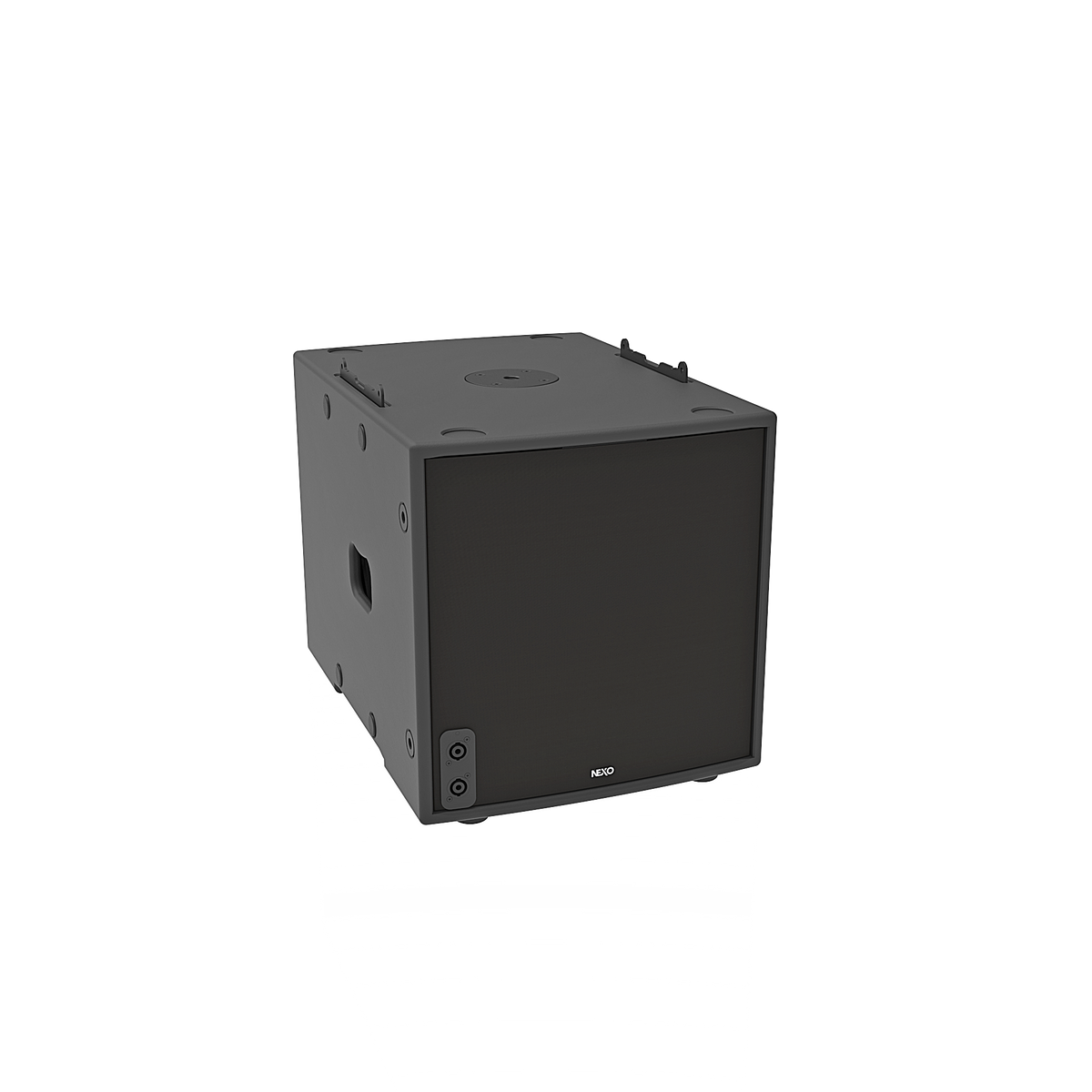

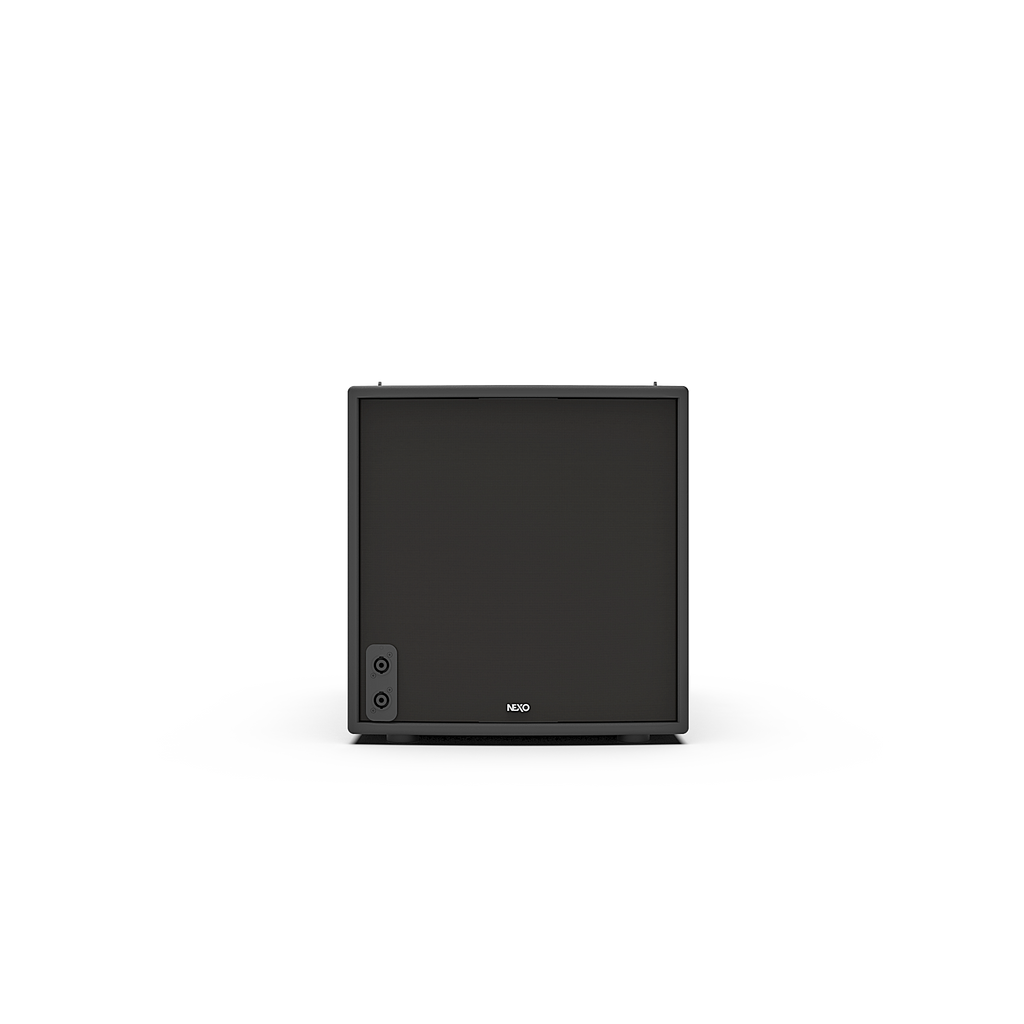

NEXO GEO M6 MSUB12 12-inch Bass-Reflex Subwoofer, Touring Version

The NEXO GEO M6 MSUB12 is a 12-inch bass-reflex subwoofer designed for touring and live sound applications, built around a single long excursion Neodymium driver delivering up to 130 dB maximum SPL and 102 dB sensitivity.

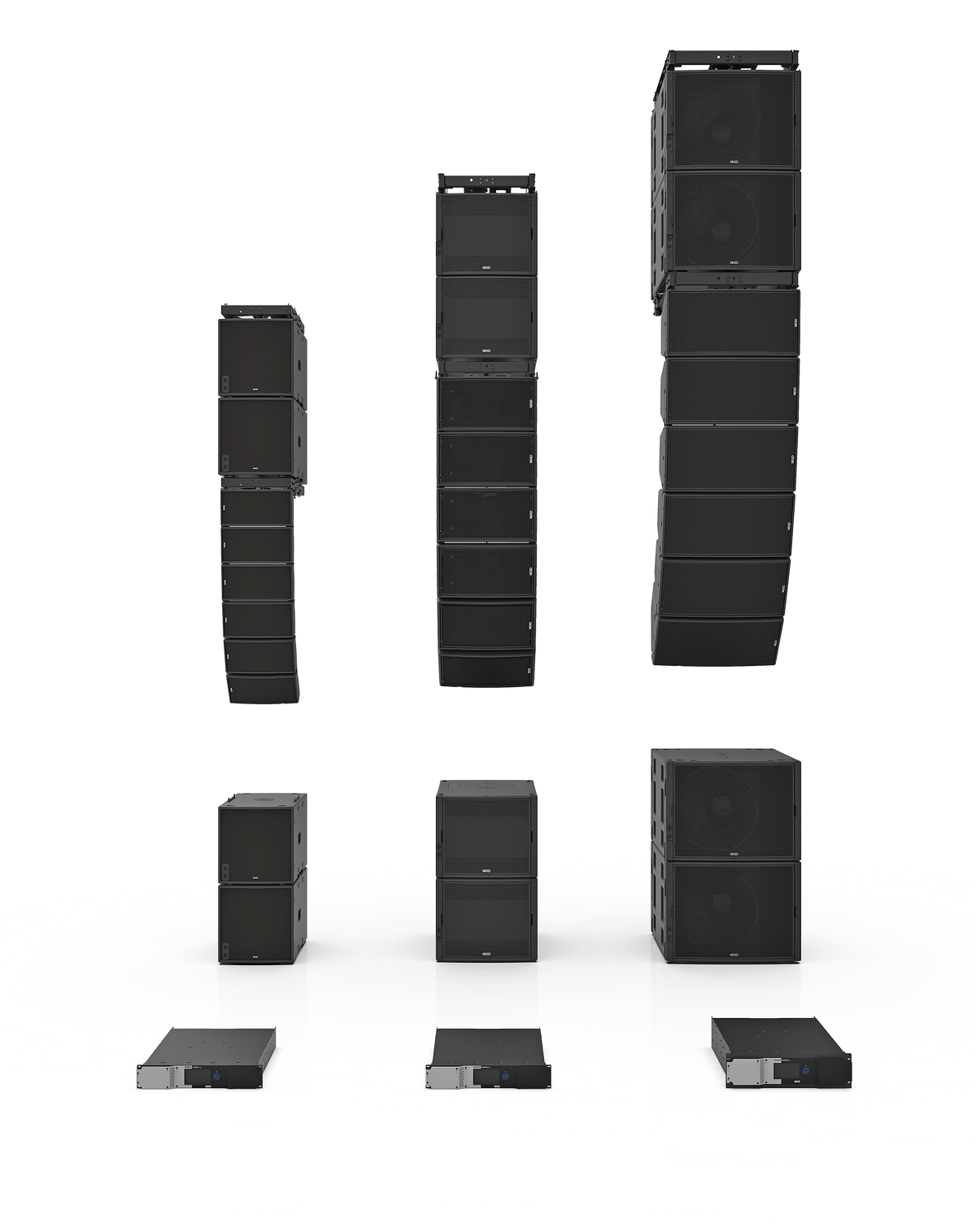

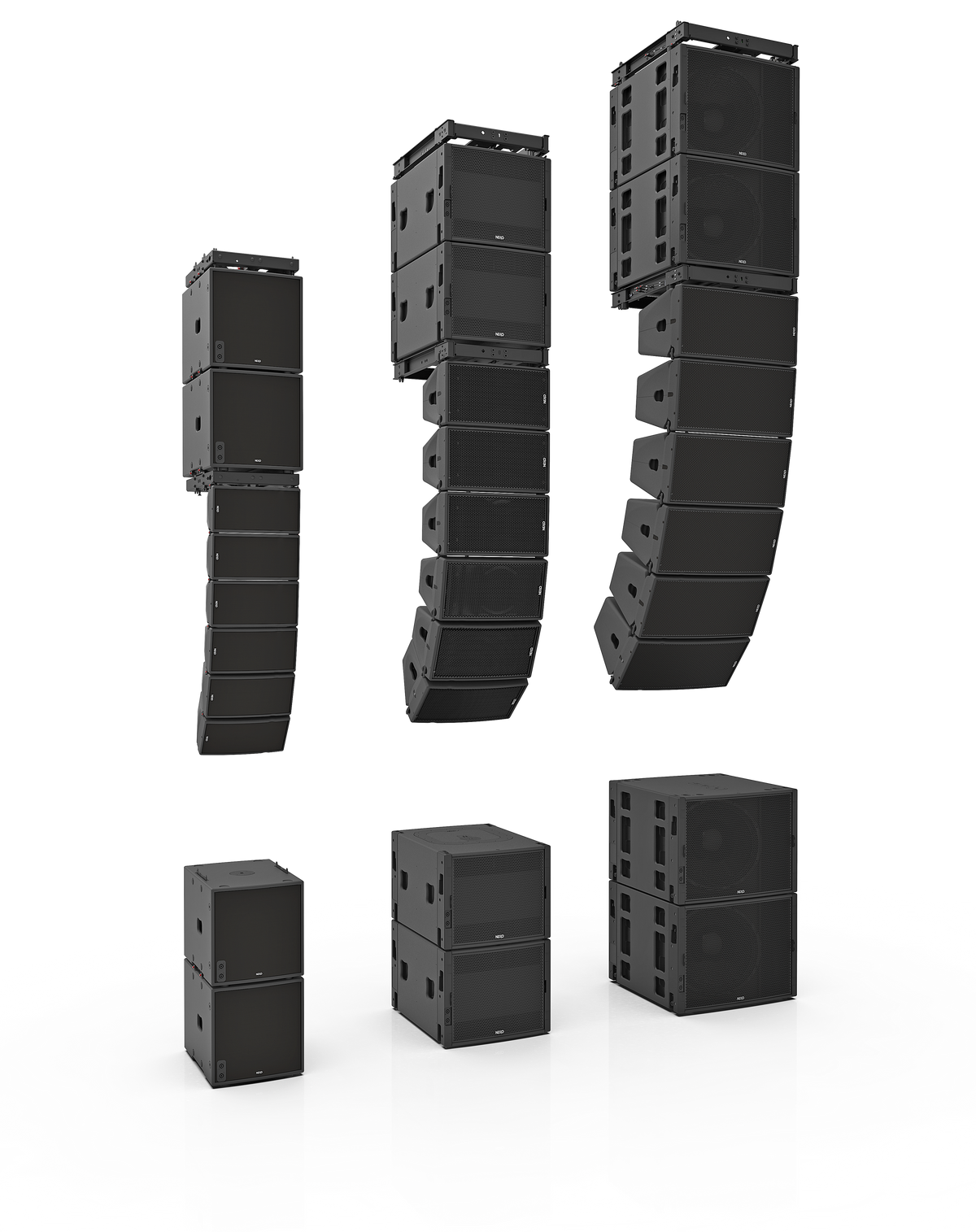

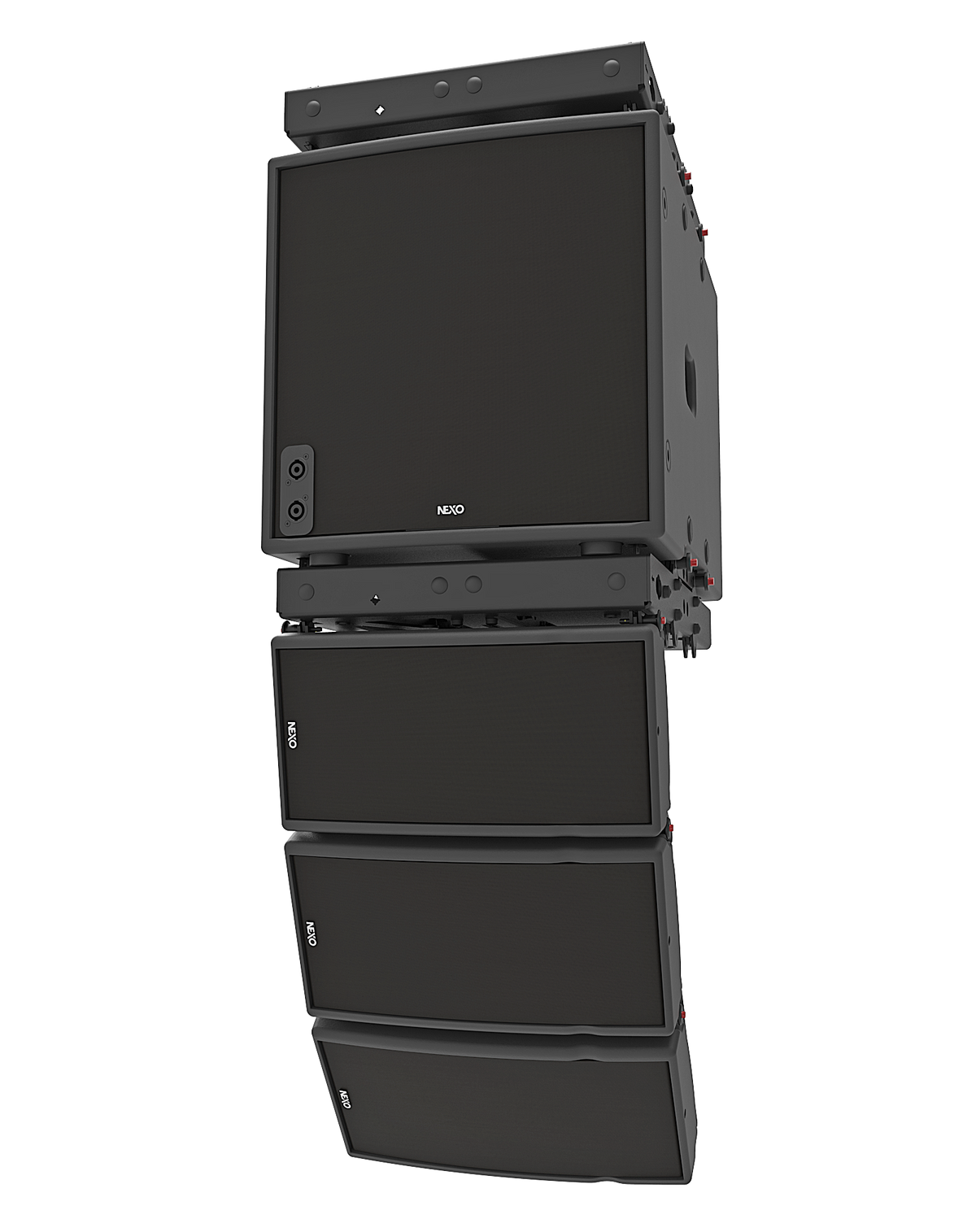

Frequency response extends from 45 Hz to 150 Hz (±6 dB), with a nominal impedance of 6 Ohms and a recommended amplifier power of 700 W, suited to high-output low-frequency reinforcement in arrayed or stacked configurations alongside the GEO M6 main element.

The touring version features 4x NL4 4-pole connectors for front (MSUB12) and through (Through) signal routing, enabling cardioid front-to-back configurations. The cabinet is constructed from Baltic Birch Plywood and finished in black, rated for operation between 0°C and 40°C.

• 12-inch long excursion Neodymium driver, 6 Ohms
• Frequency response: 45 Hz–150 Hz (±6 dB)
• Max SPL: 130 dB, sensitivity 102 dB
• Recommended power: 700 W
• Dimensions: 433 x 396 x 550 mm, 23 kg
