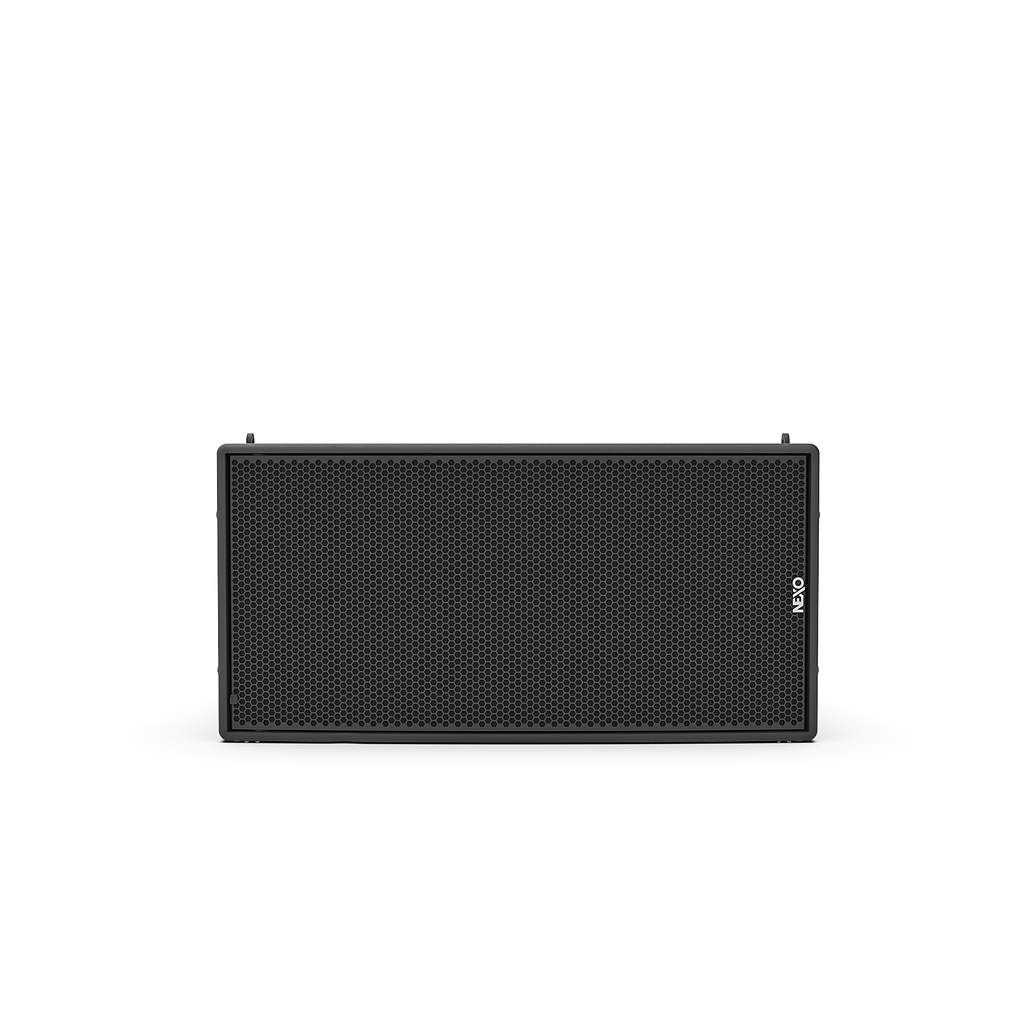

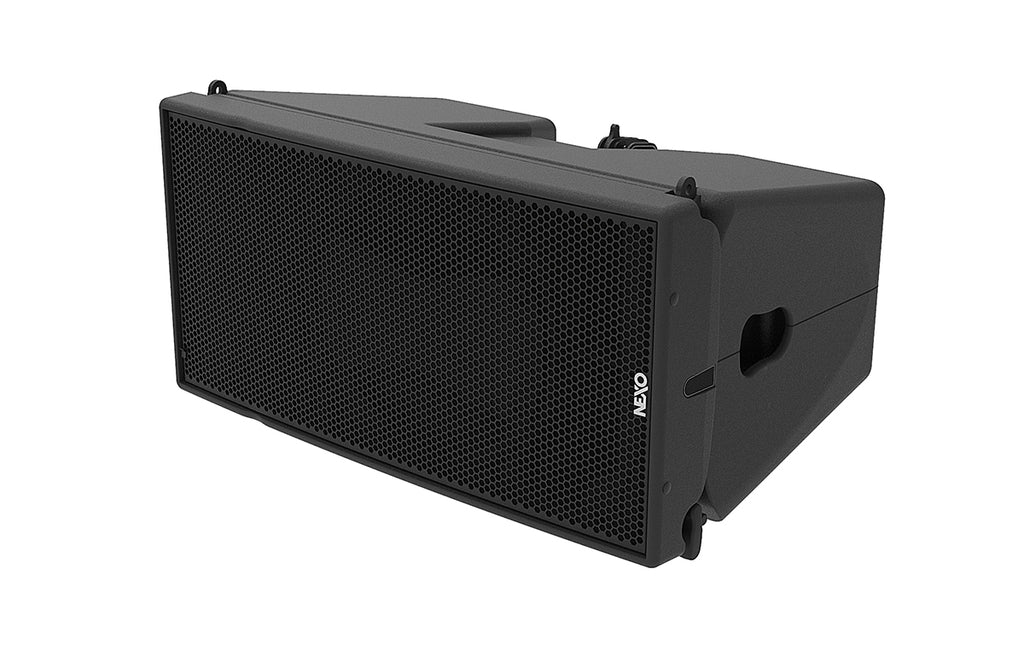

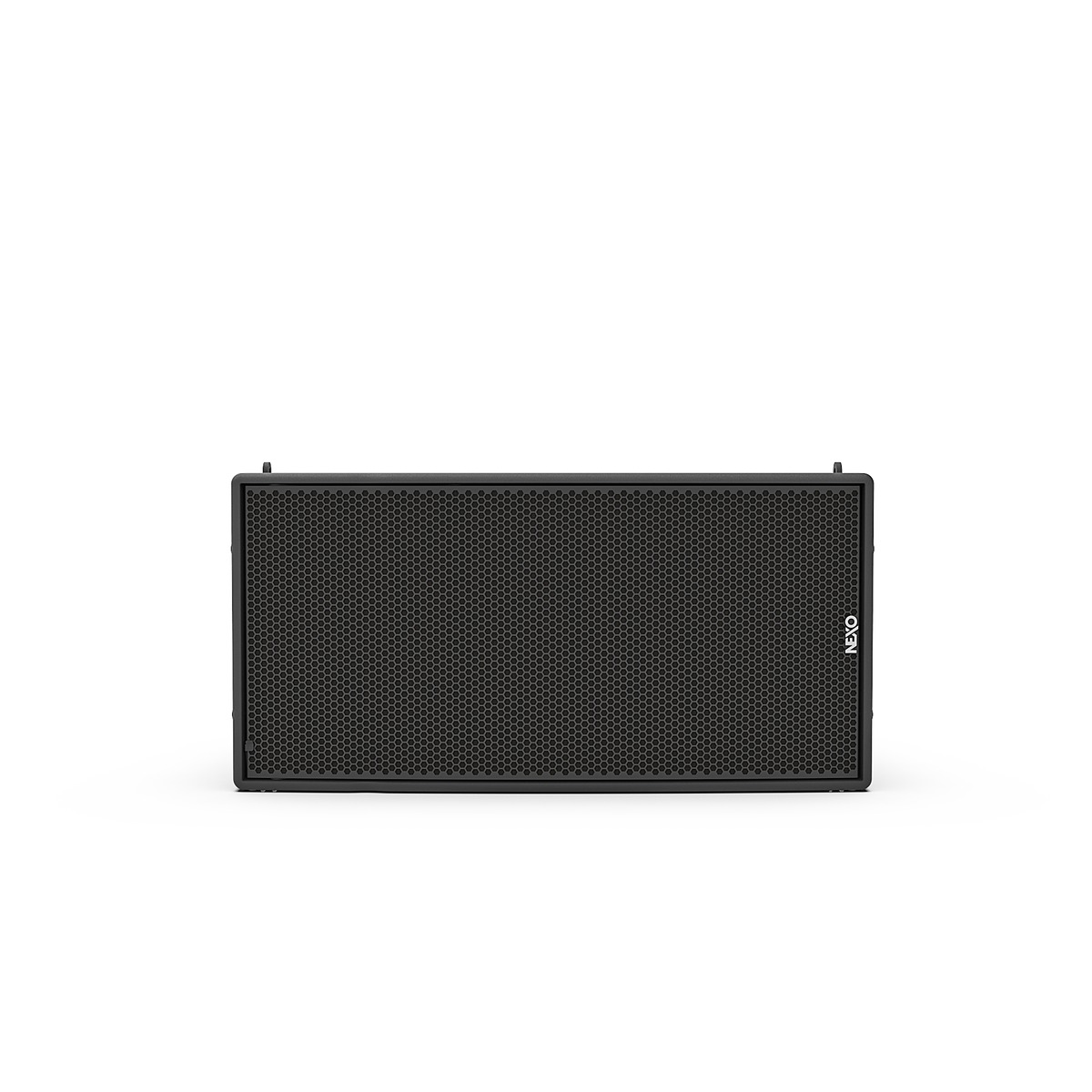

NEXO GEO M1220 12-inch Horn-Loaded 2-Way Line Array Element, Touring Version, White

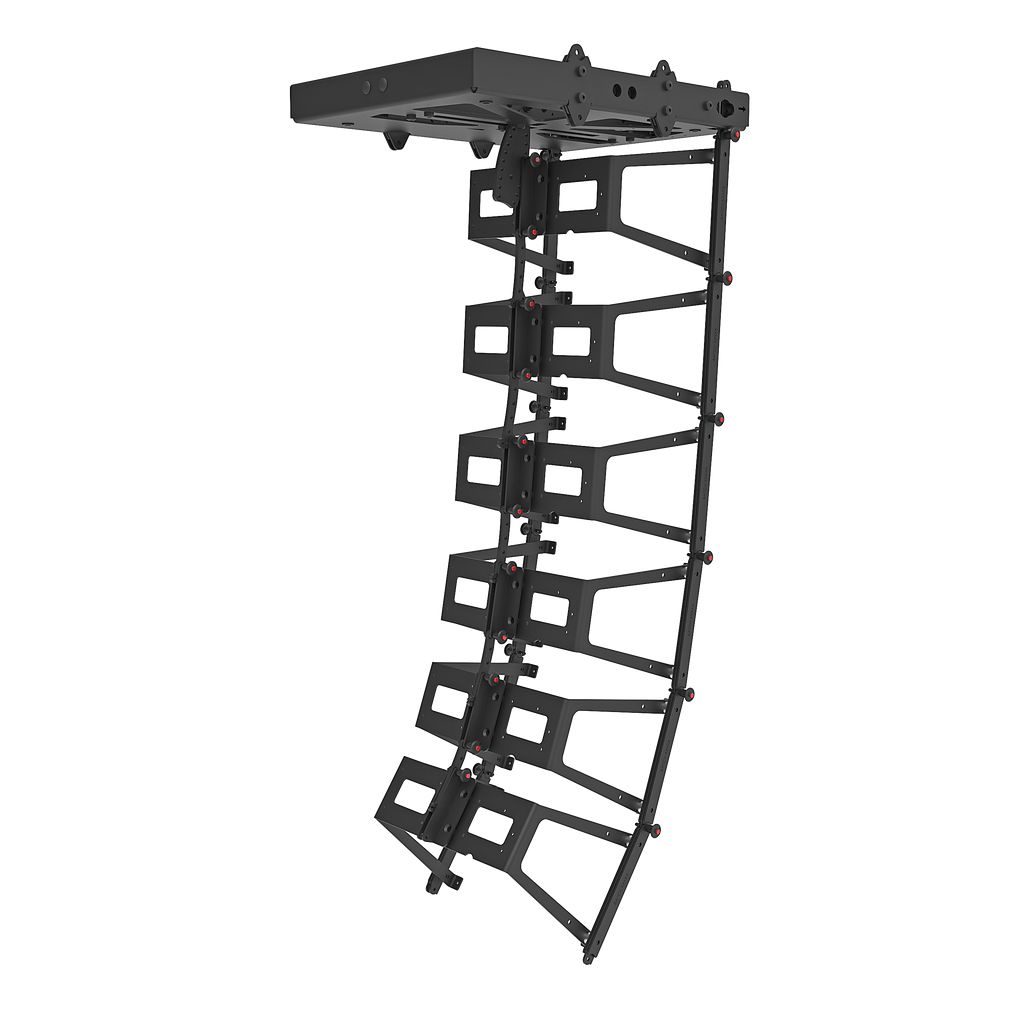

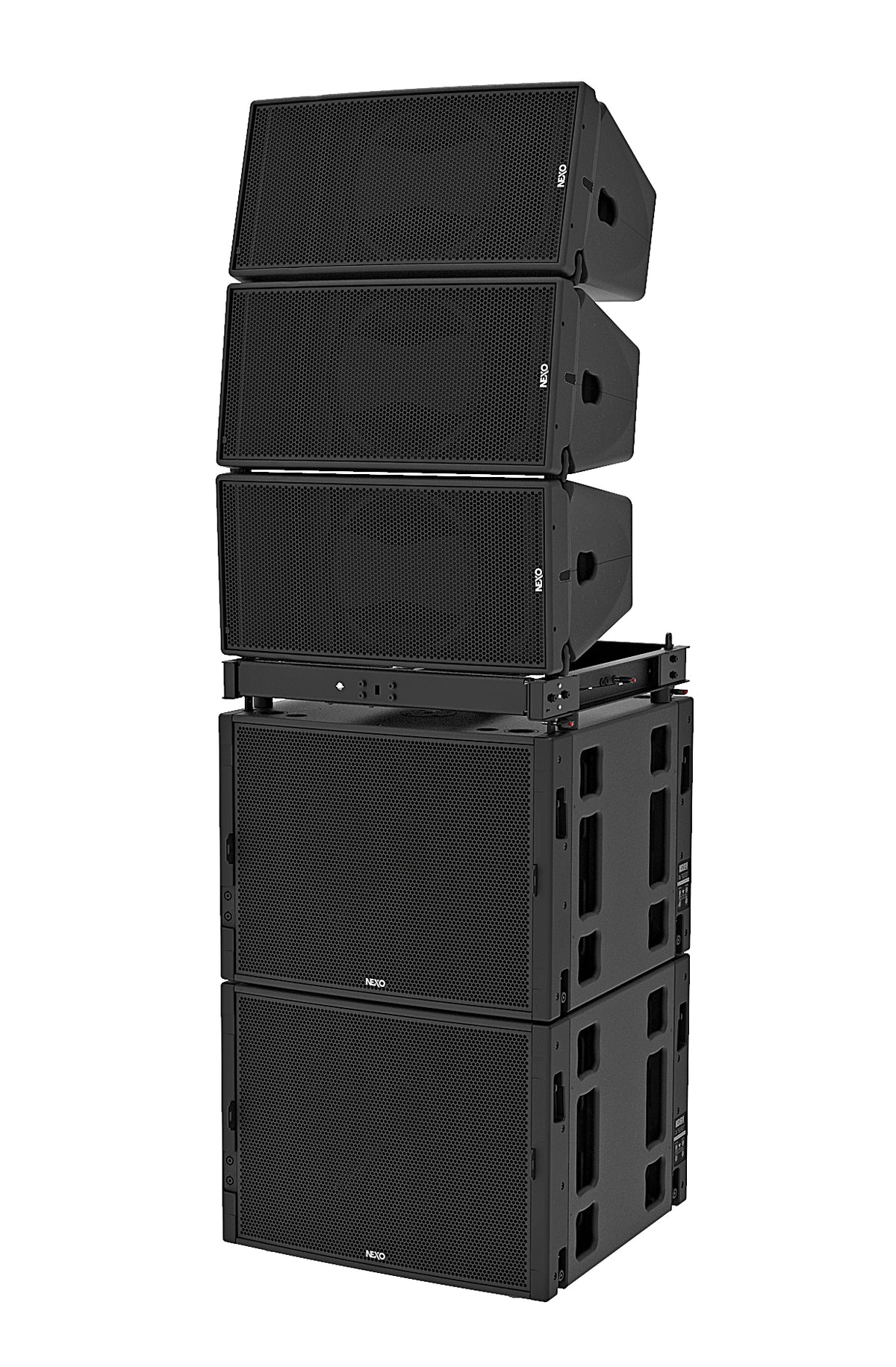

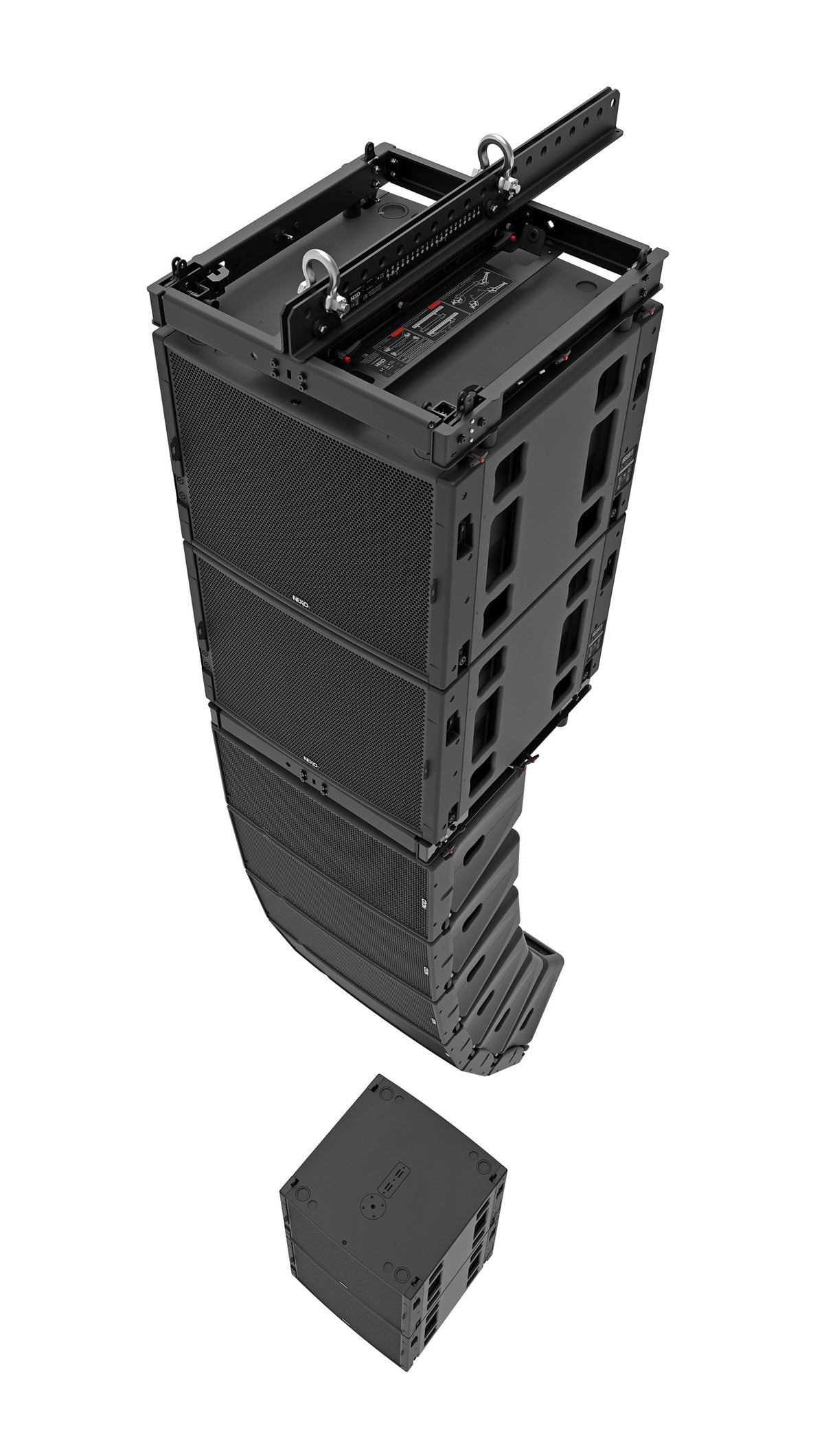

The NEXO GEO M1220 is a 2-way line array element combining a 12-inch long excursion Neodymium LF driver with a 3-inch voice coil, 1.4-inch throat HF driver mounted on an HR Wavesource horn. Designed for touring and live event reinforcement, it can be used alone or alongside the companion MSUB18 subwoofer, flown or stacked thanks to integrated rigging hardware with AutoRig.

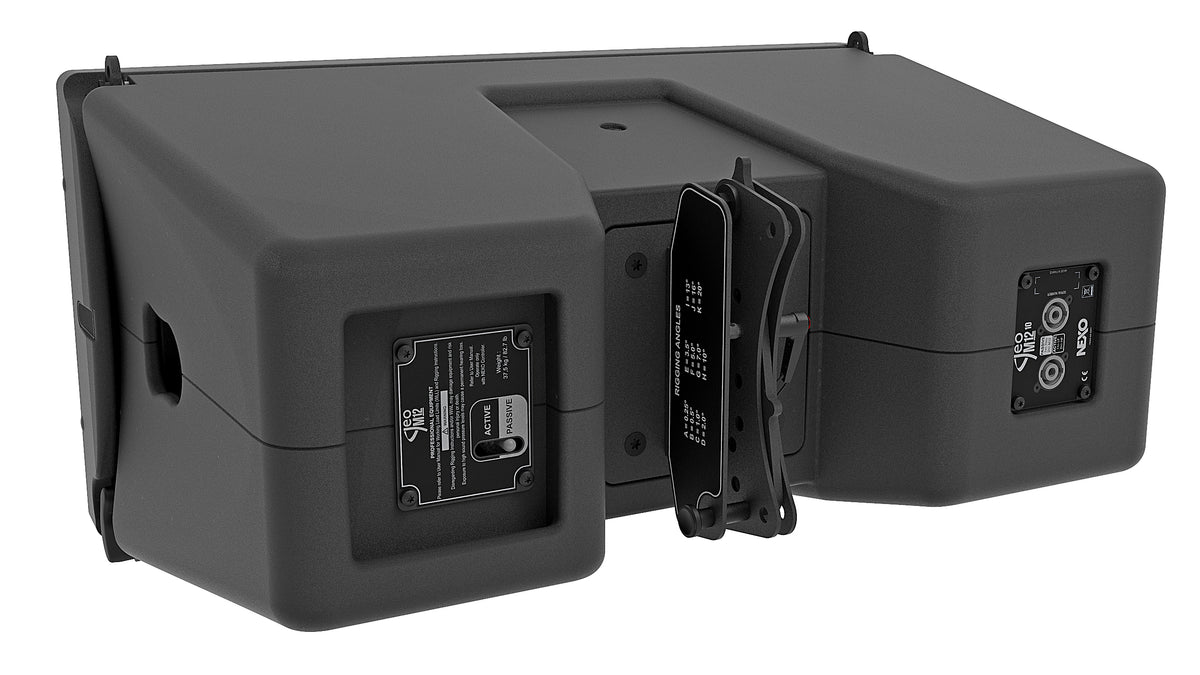

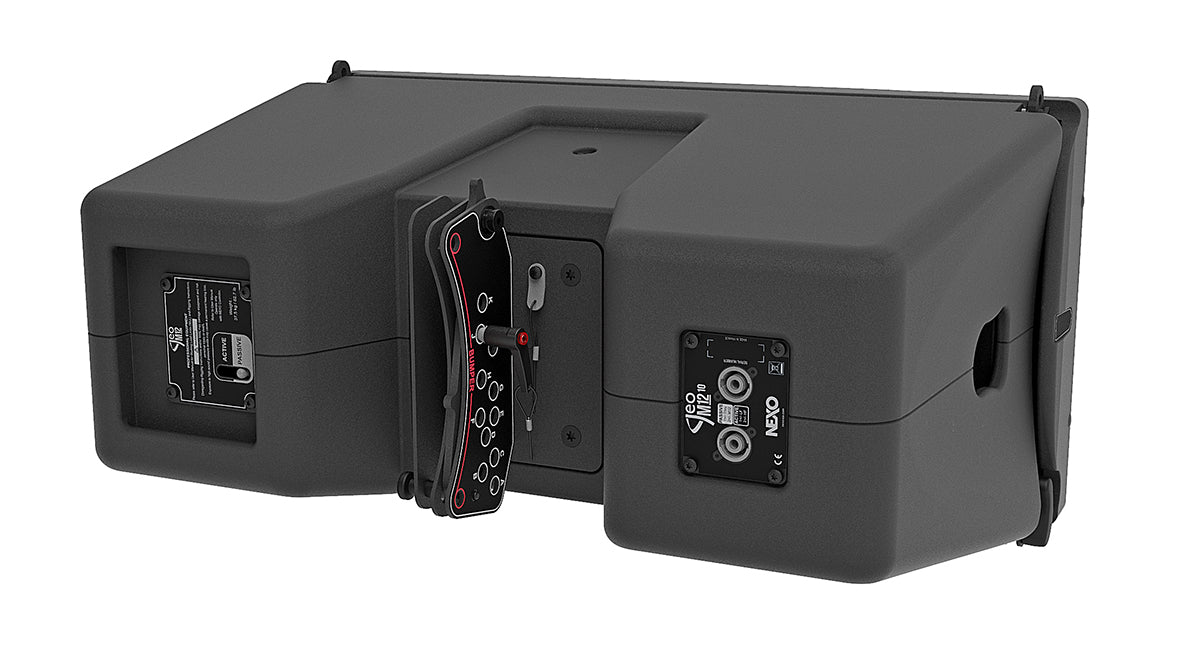

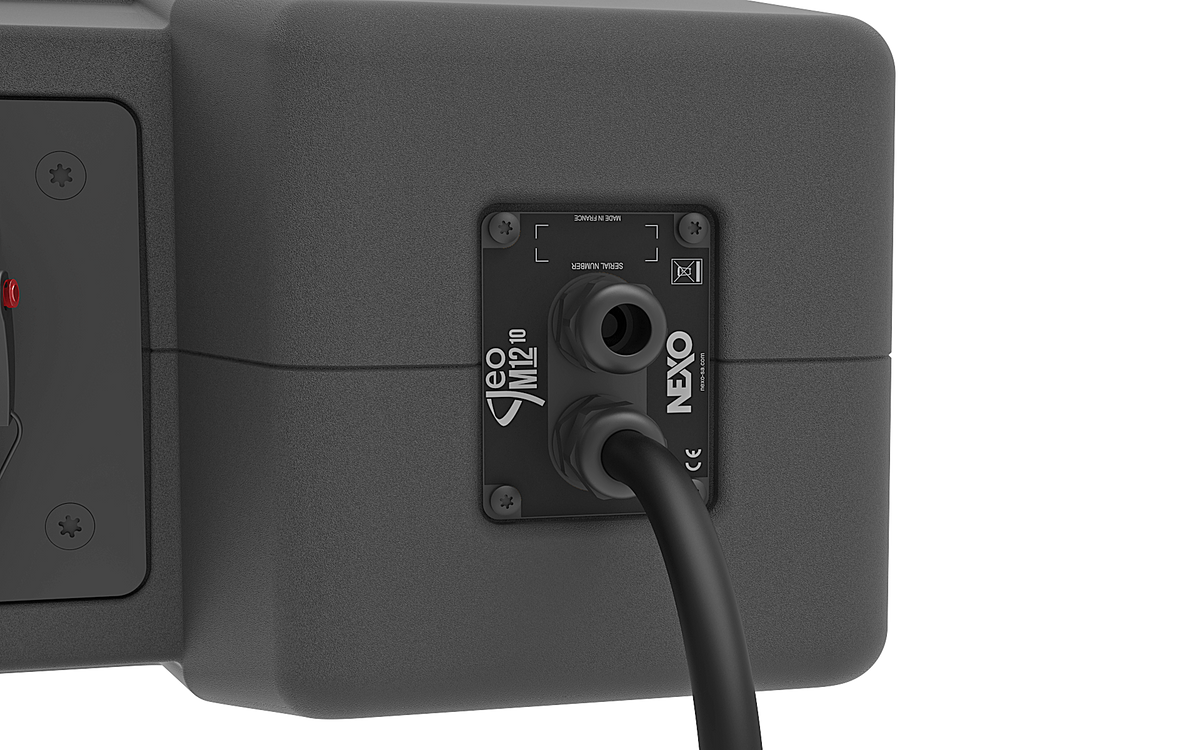

Performance highlights include a frequency response of 50 Hz to 20 kHz, 105 dB sensitivity and up to 140 dB maximum SPL, with 20° vertical and 80° horizontal dispersion (expandable to 120° using the optional CDD module). The enclosure can run in active or passive mode via a ruggedized, recessed, waterproof switch, with inputs provided through 2x NL4 4-pole connectors in this Touring version.

Built from a lightweight polyurethane composite with a honeycomb structure, the GEO M1220 weighs 34 kg and measures 700 x 370 x 446 mm. It is supplied in white and backed by a 5-year warranty, incorporating technology derived from NEXO's flagship STM series line array system.

• 12-inch Neodymium LF driver + 3-inch/1.4-inch HF driver
• 140 dB max SPL, 105 dB sensitivity
• 20° x 80° dispersion, expandable to 120°
• Active or passive switchable operation
• 5-year warranty, white finish
