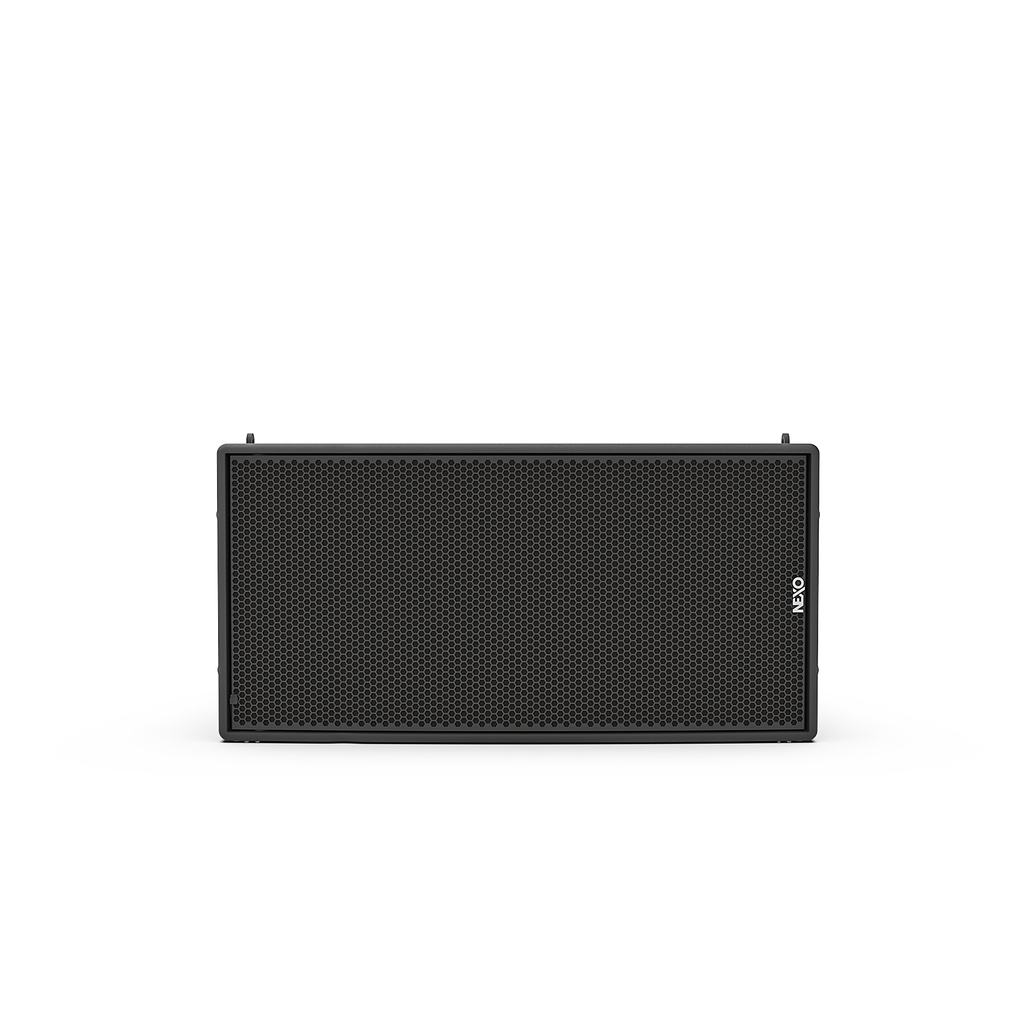

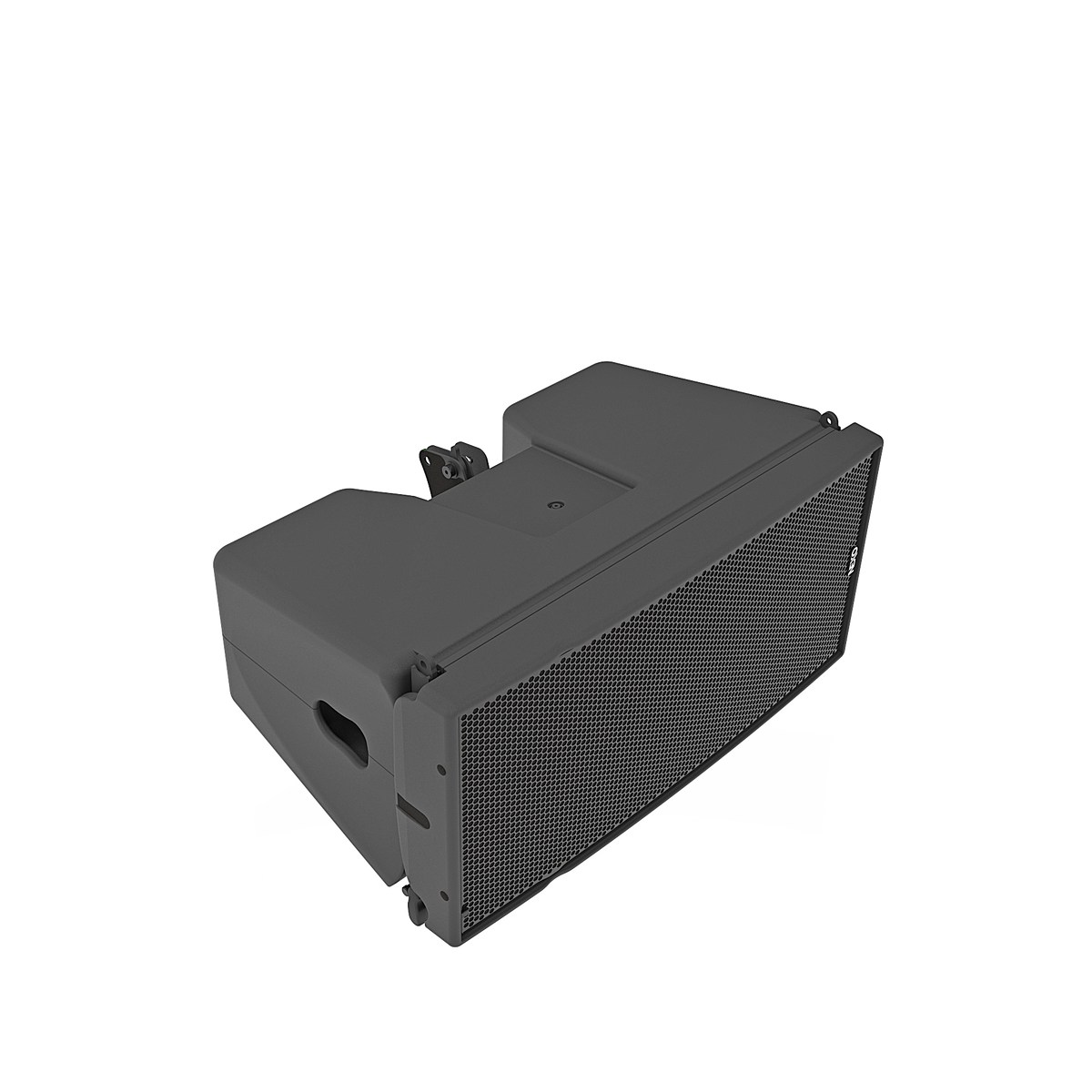

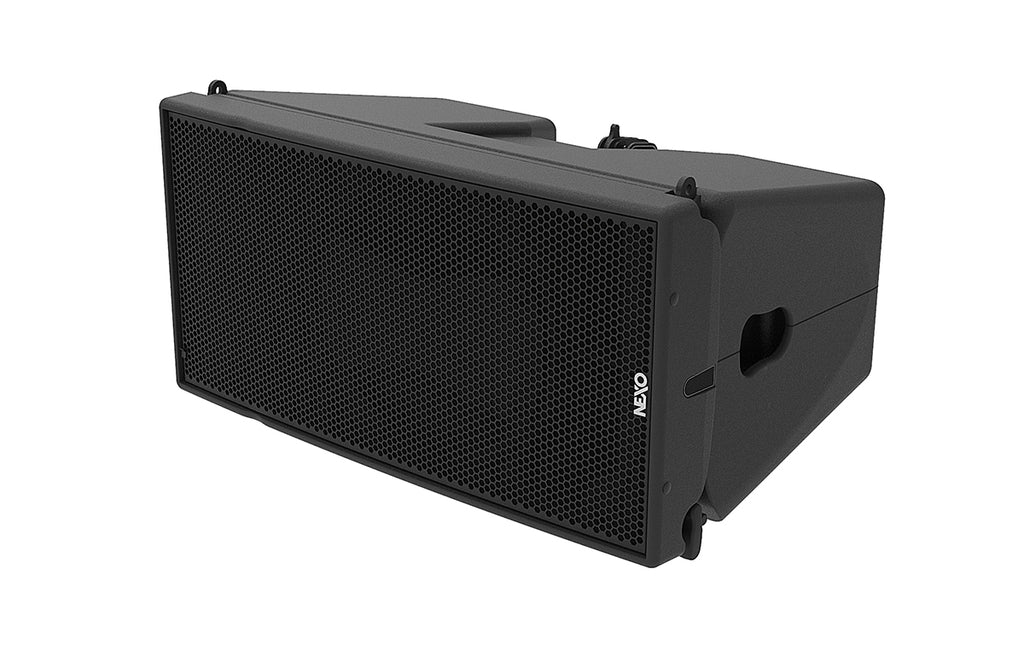

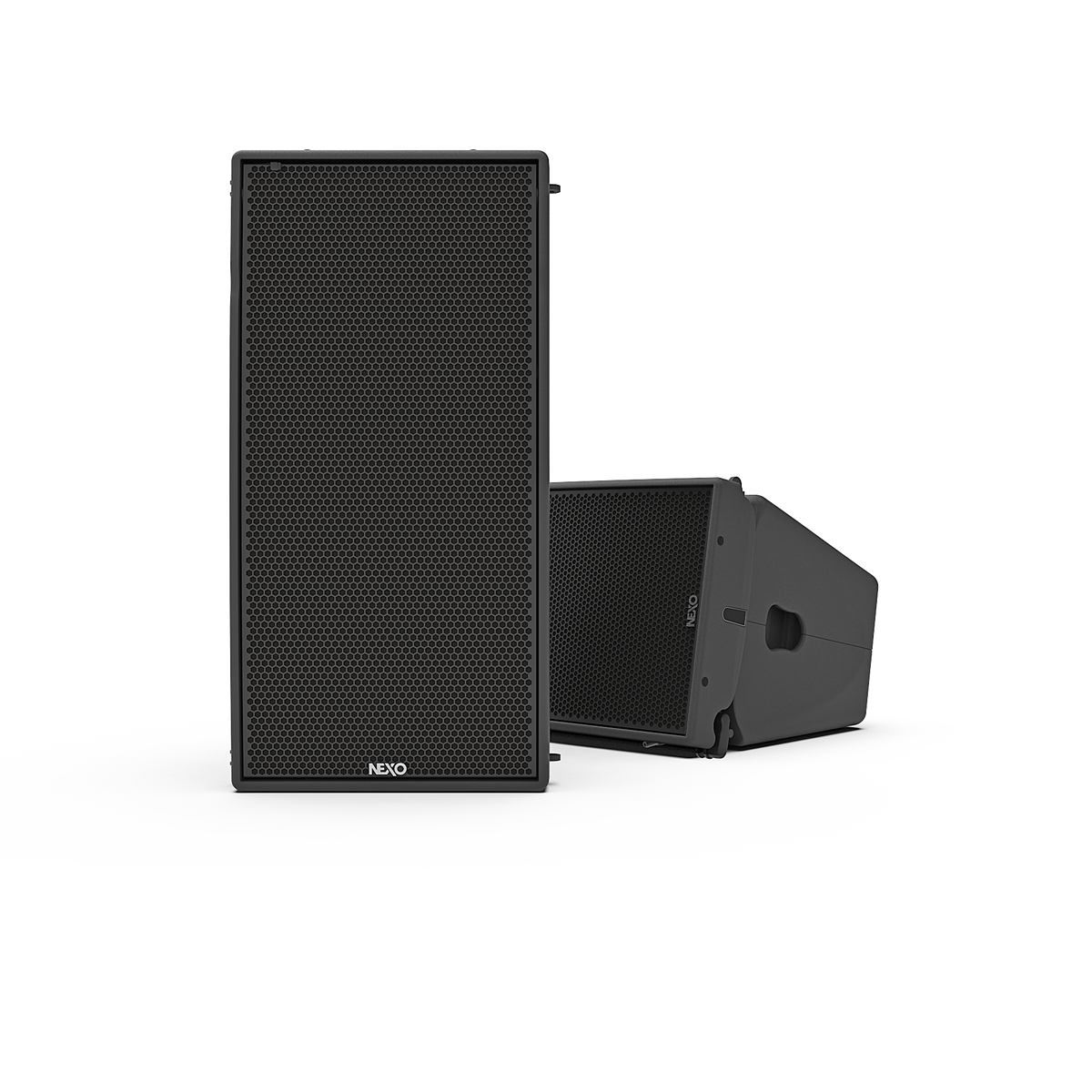

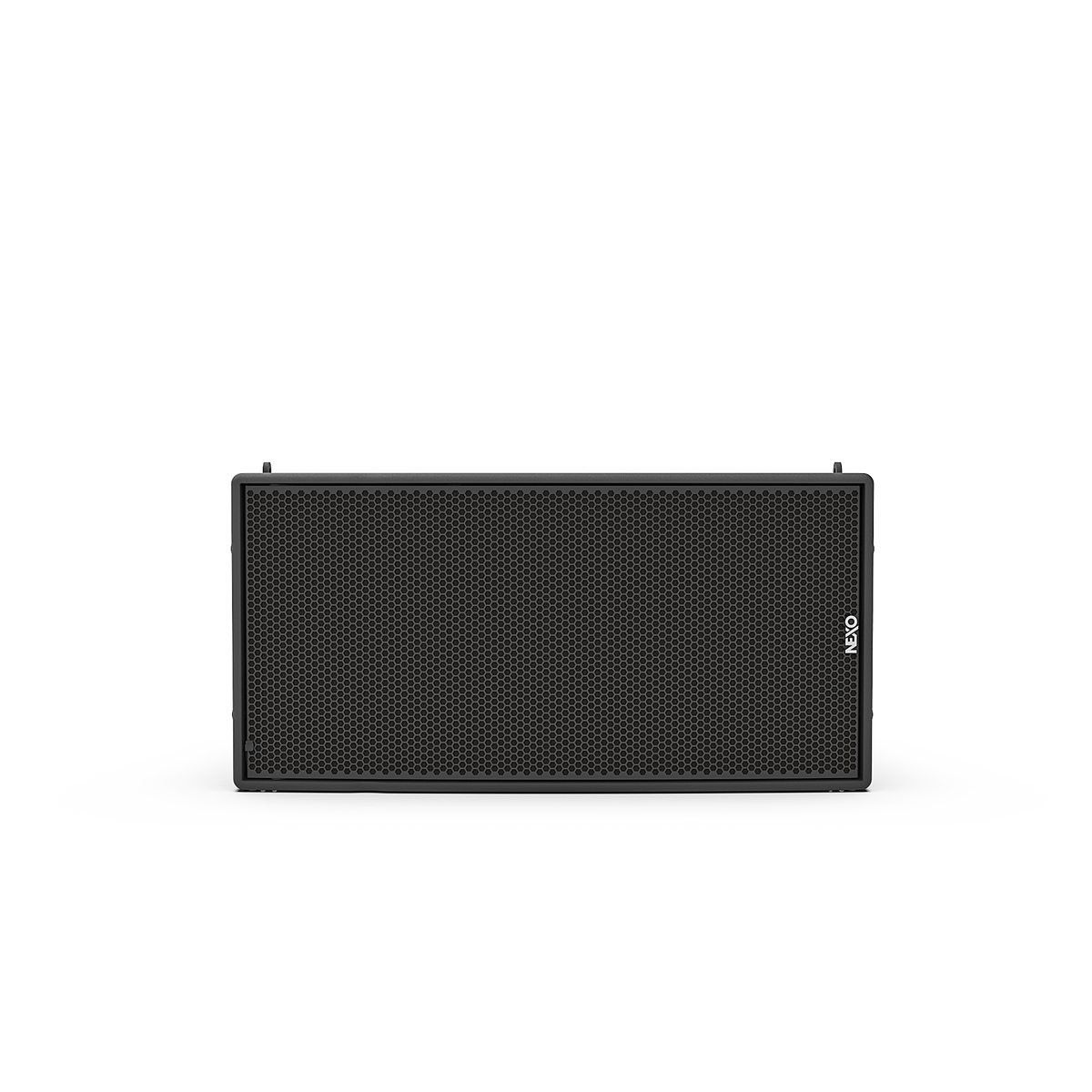

NEXO GEO M1220 12-inch 2-Way Line Array Element, Touring Version

The NEXO GEO M1220 is a 12-inch, 2-way line array element designed for touring and live sound reinforcement. It combines a long-excursion Neodymium LF driver with a 3-inch voice coil, 1.4-inch throat HF driver on NEXO's HR Wavesource waveguide, delivering high output with controlled dispersion.

With a frequency response of 50 Hz to 20 kHz, 105 dB sensitivity and 140 dB maximum SPL, the GEO M1220 is built for demanding touring and rental applications. Its 20° vertical dispersion pattern allows precise array configuration, while an optional CD horizontal widening extends horizontal coverage to 120°.

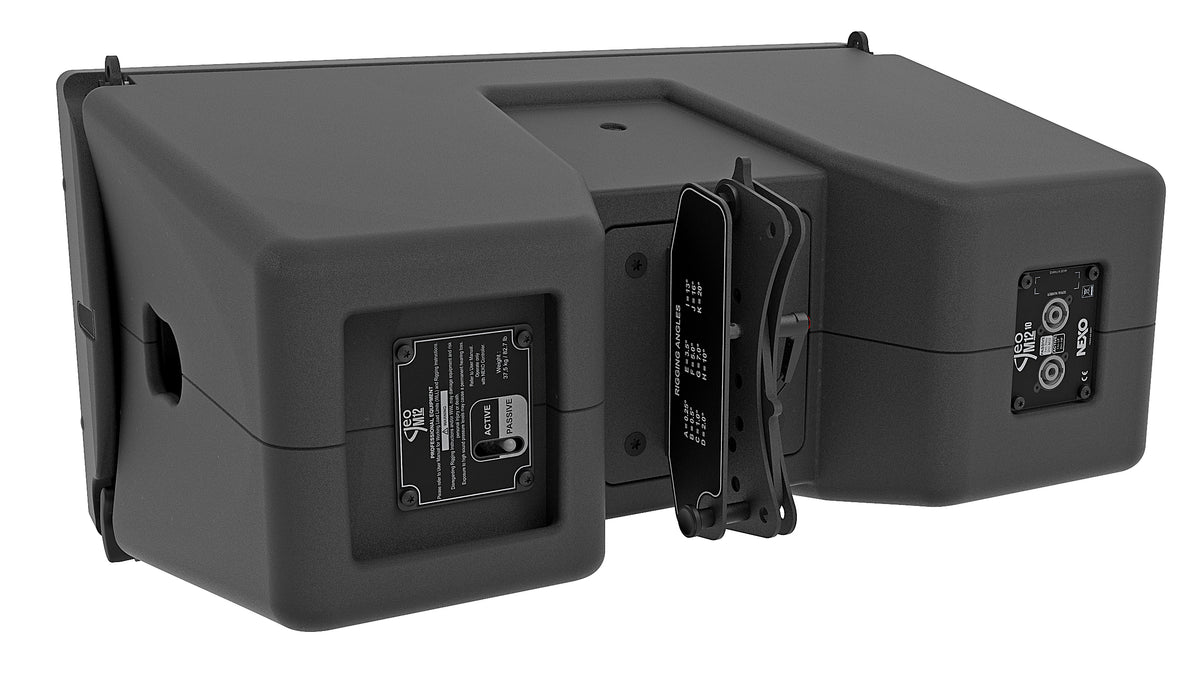

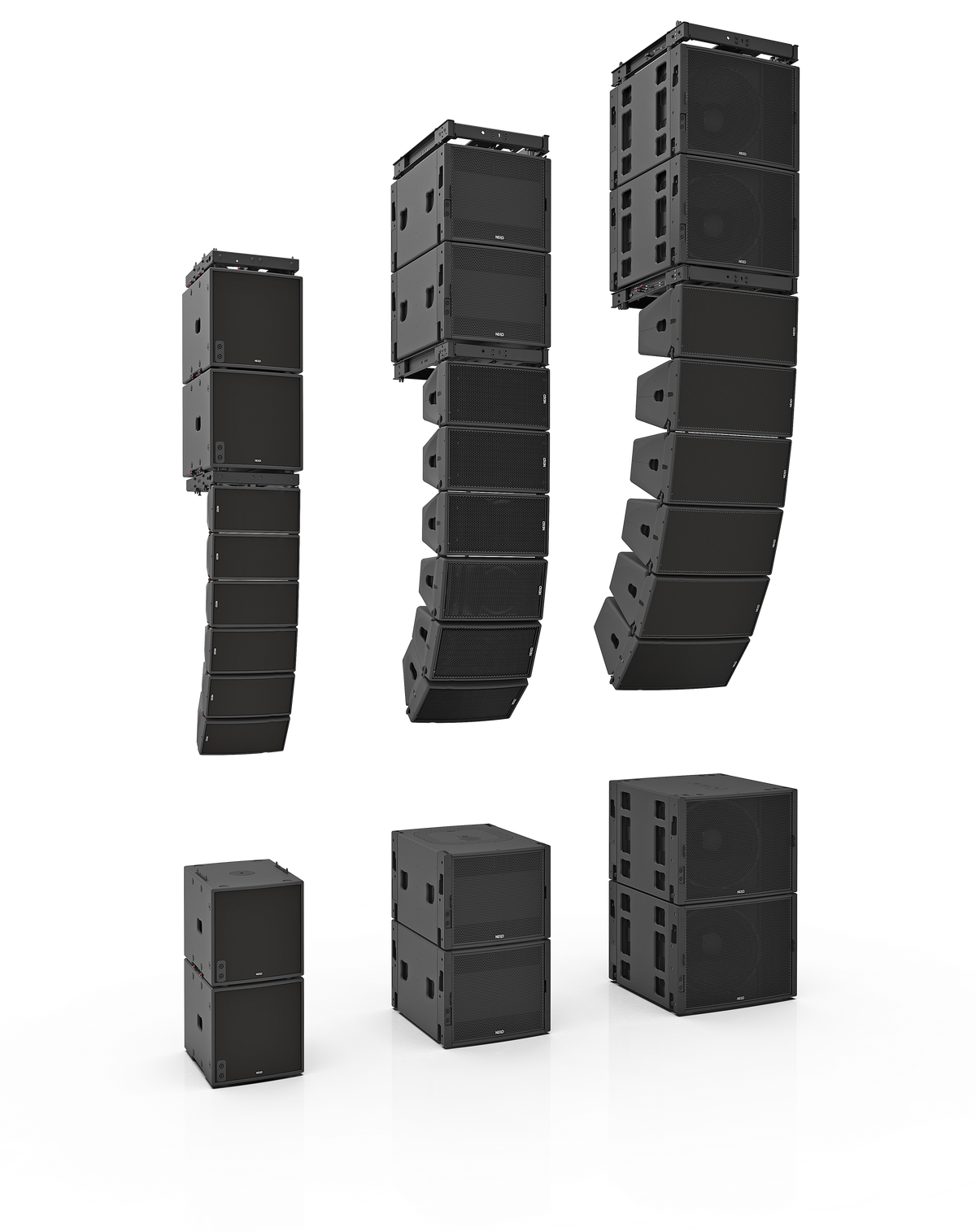

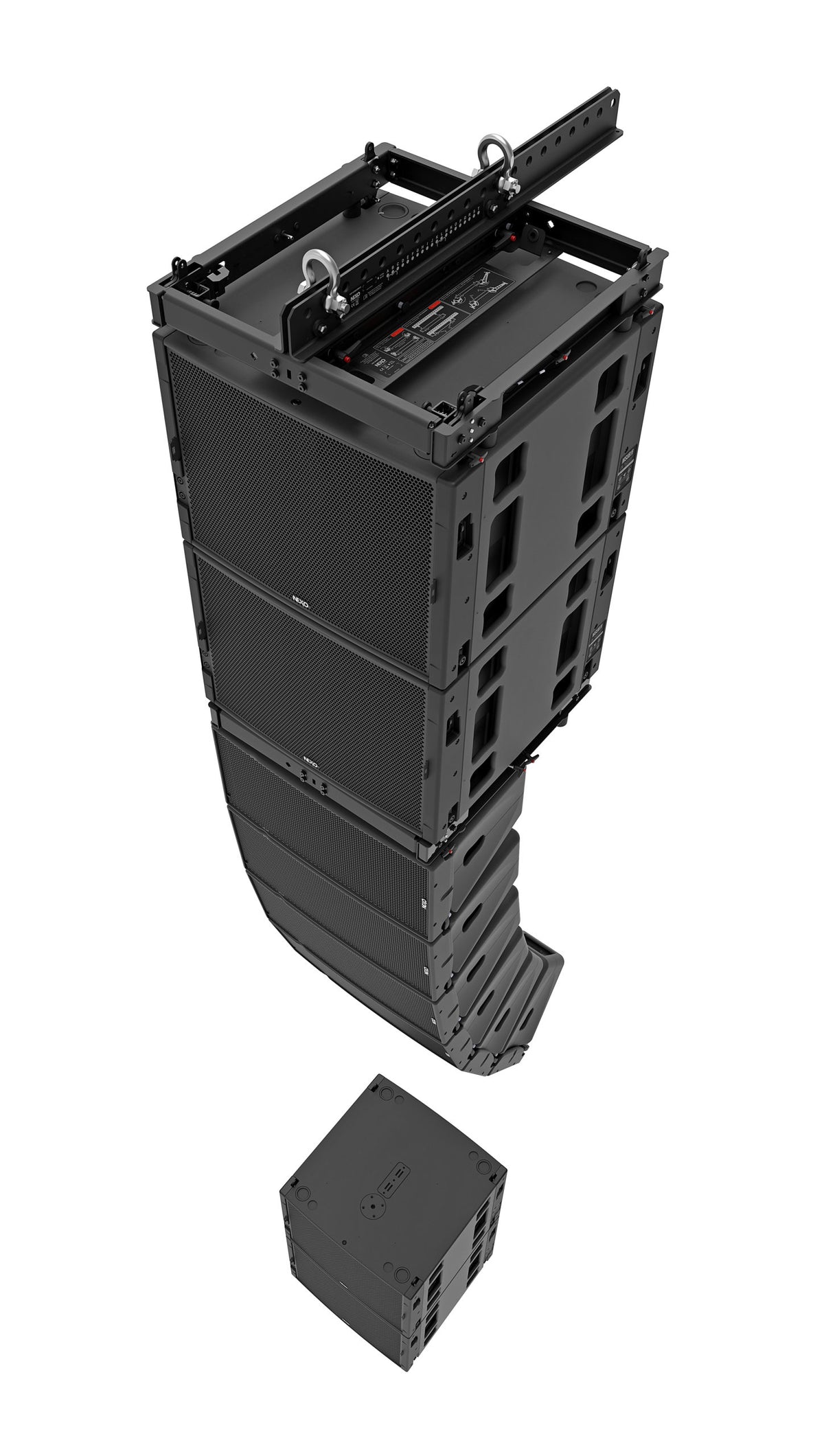

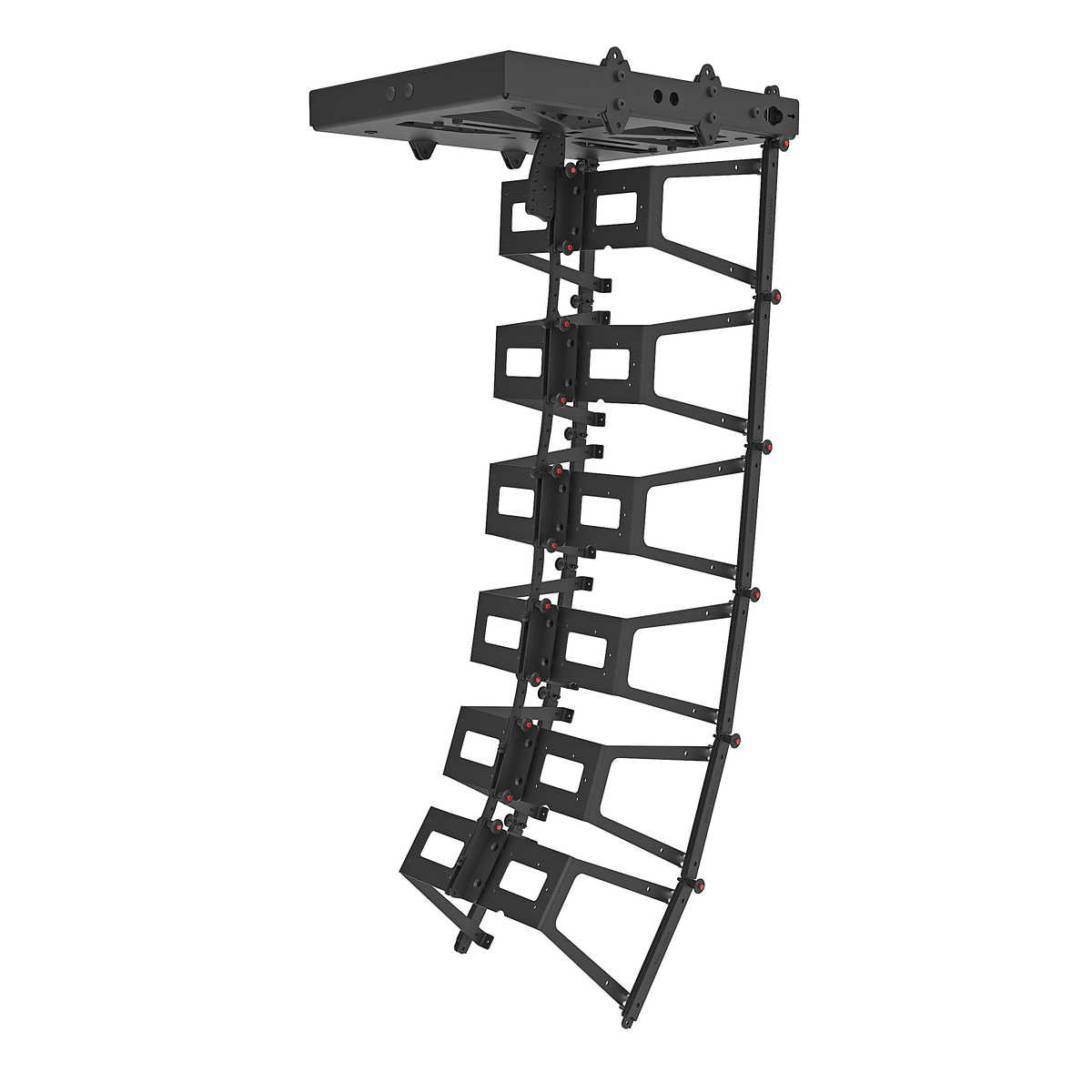

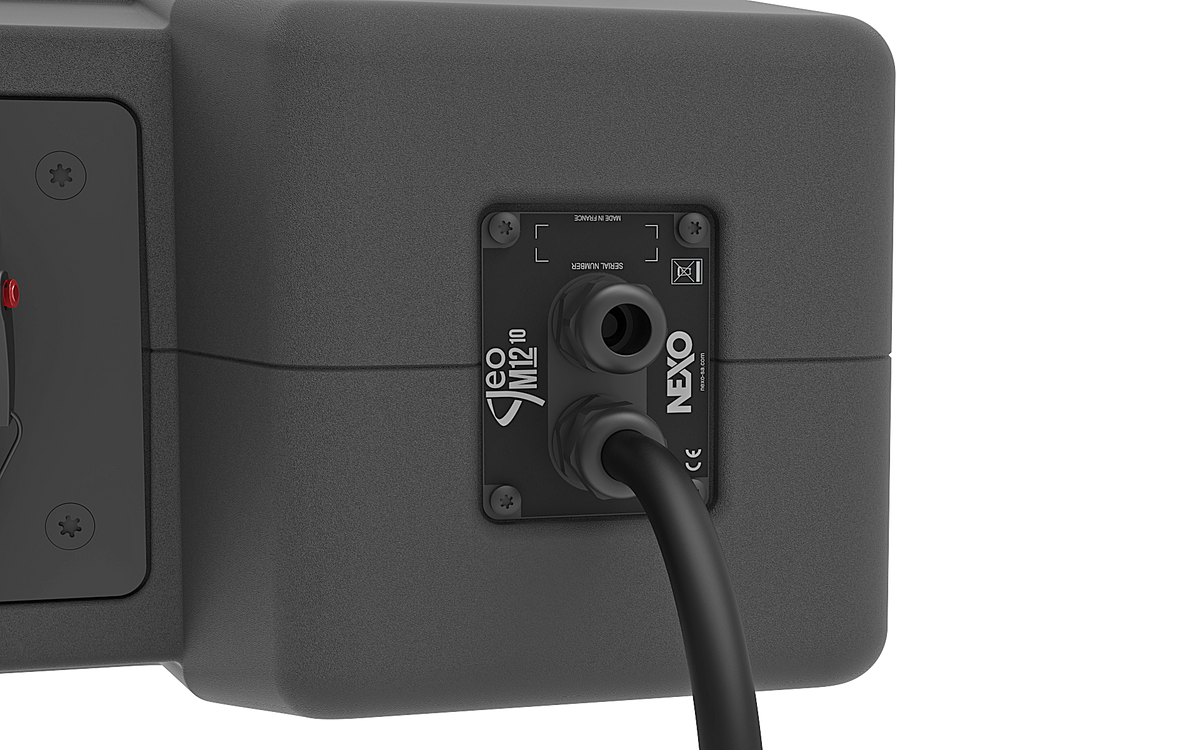

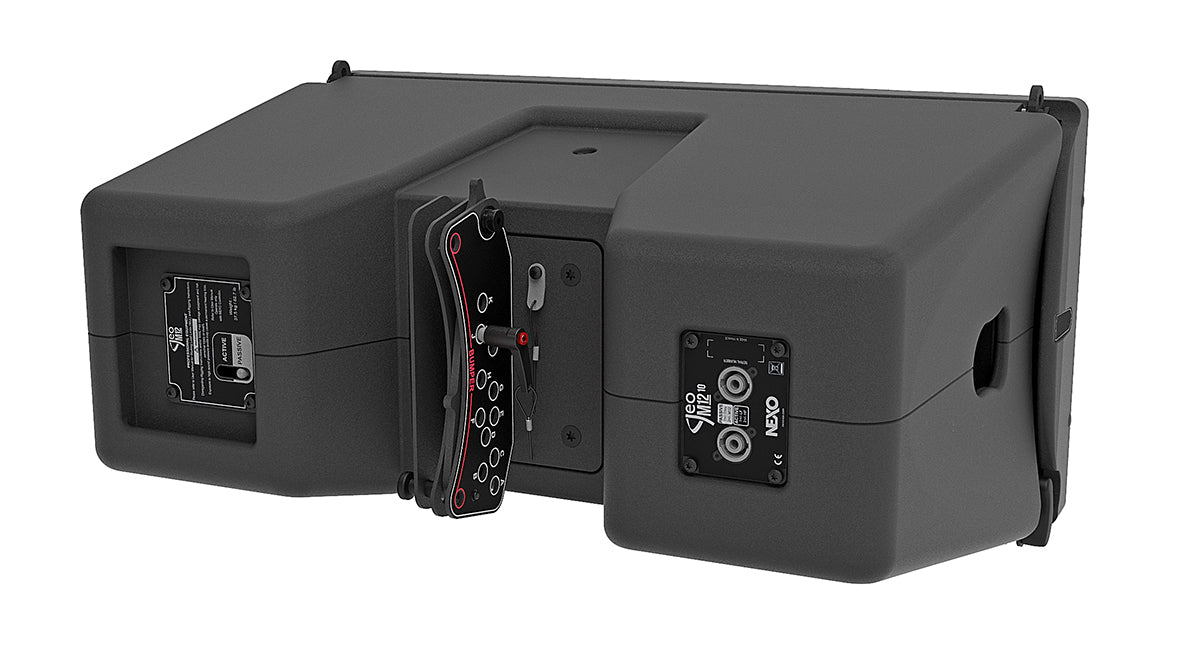

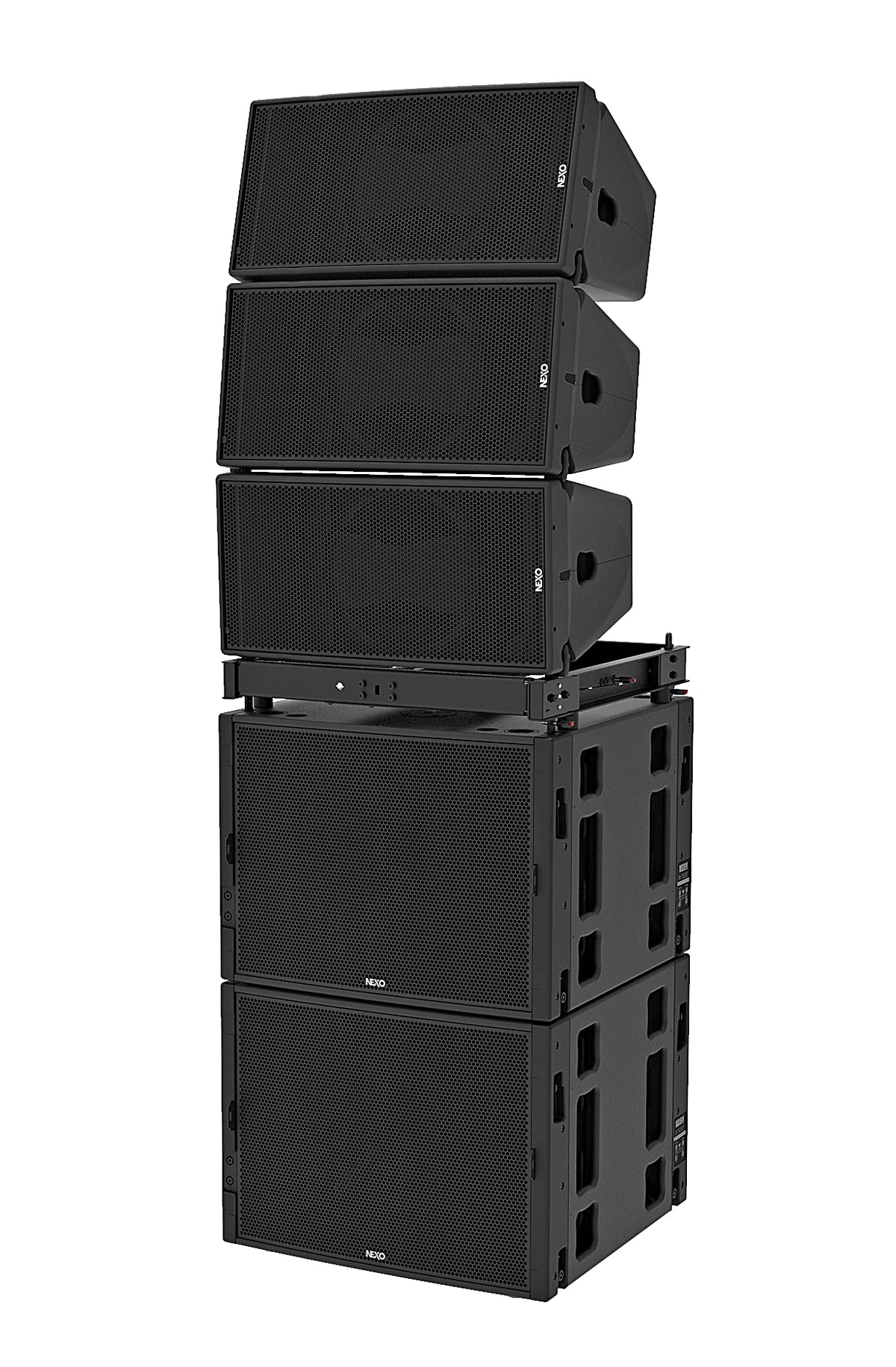

The enclosure can be run in active or passive mode via a ruggedized, recessed, waterproof switch, and connects through 2x NL4 4-pole connectors in this Touring version. Integrated rigging hardware with AutoRig allows fast, loose-part-free flying or stacking, either standalone or with the companion MSUB18 subwoofer.

• 12-inch Neodymium LF driver with 3-inch HF compression driver
• 140 dB max SPL, 105 dB sensitivity
• 20° vertical / 80° horizontal dispersion (120° with optional CD)
• Active or passive switchable operation
• 5-year manufacturer warranty
