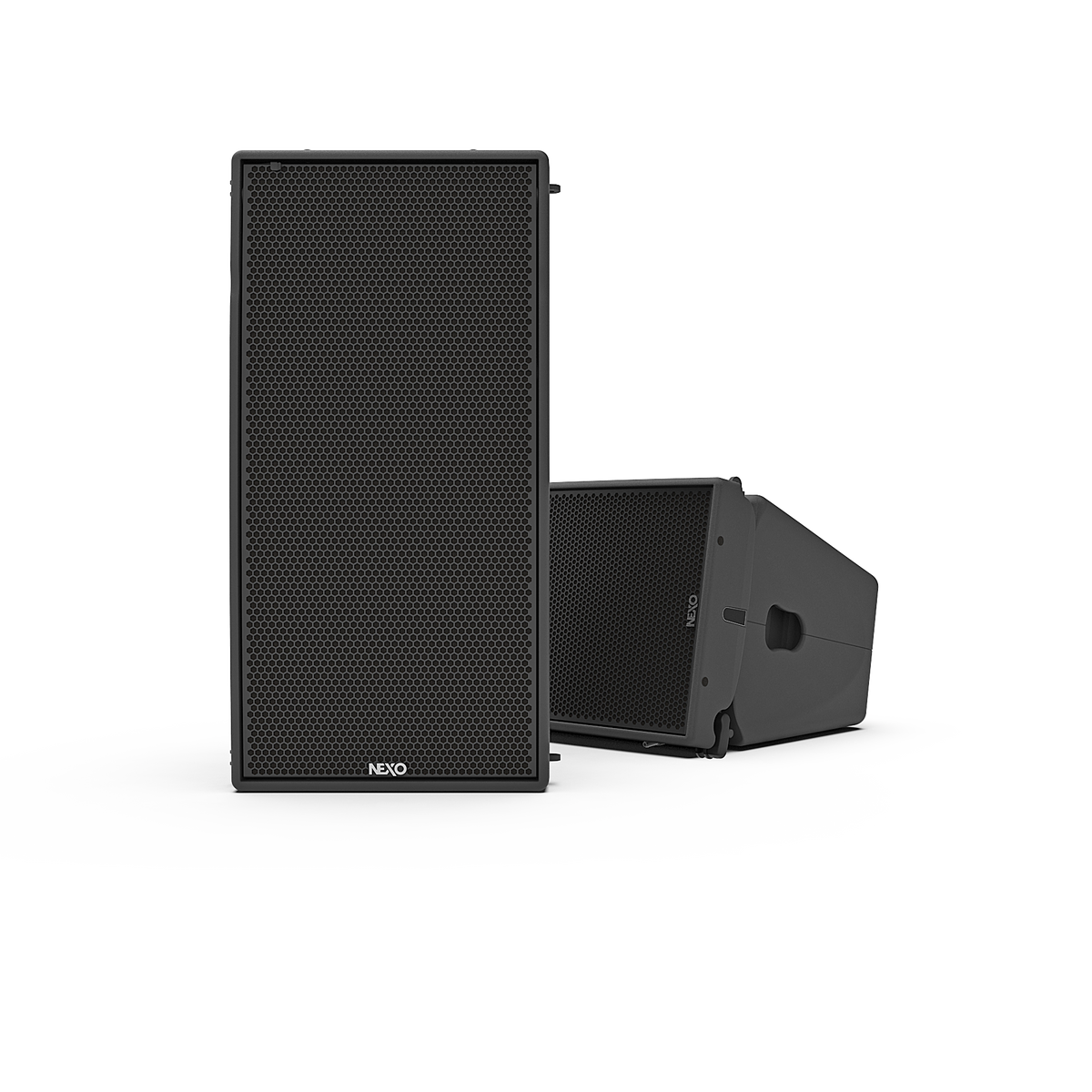

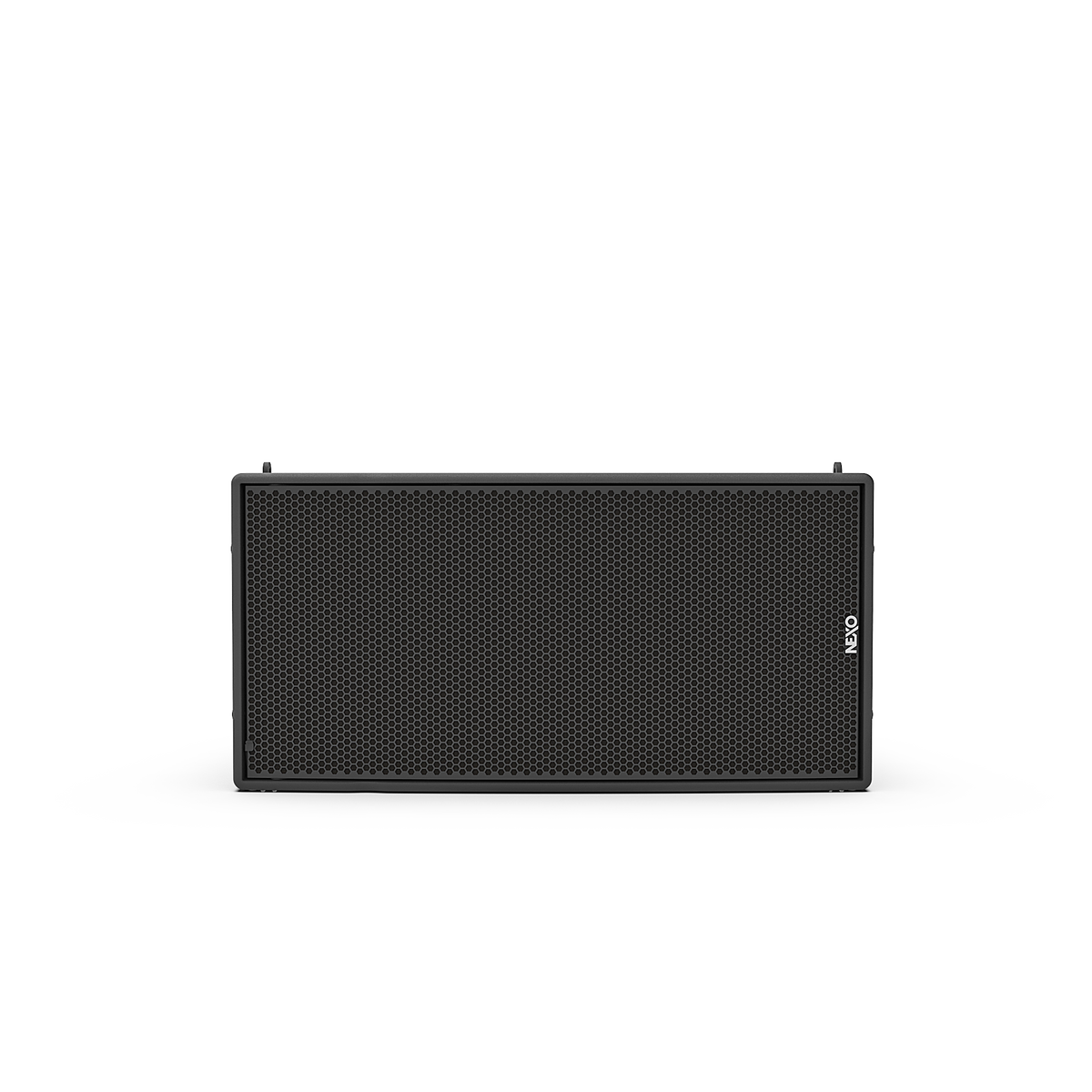

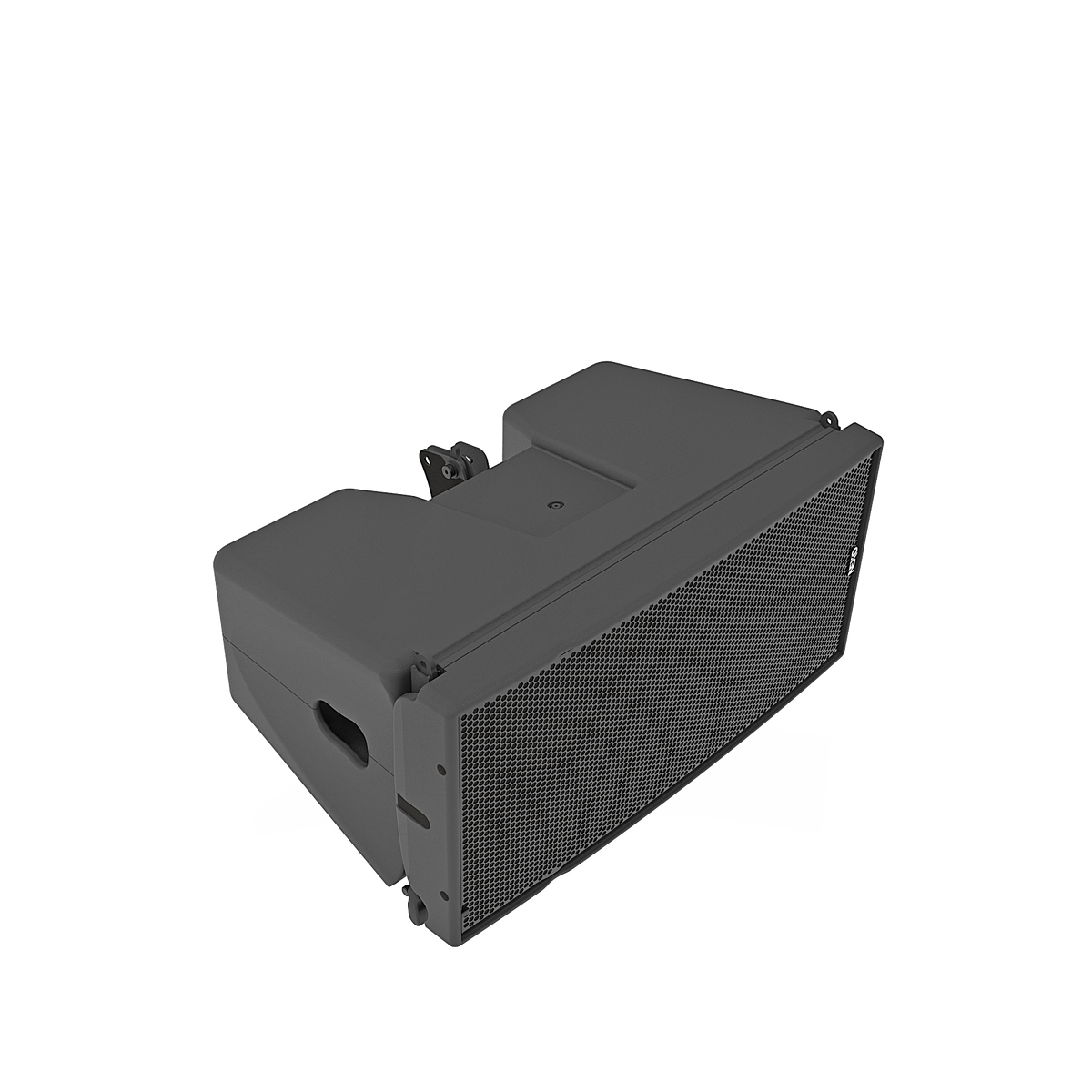

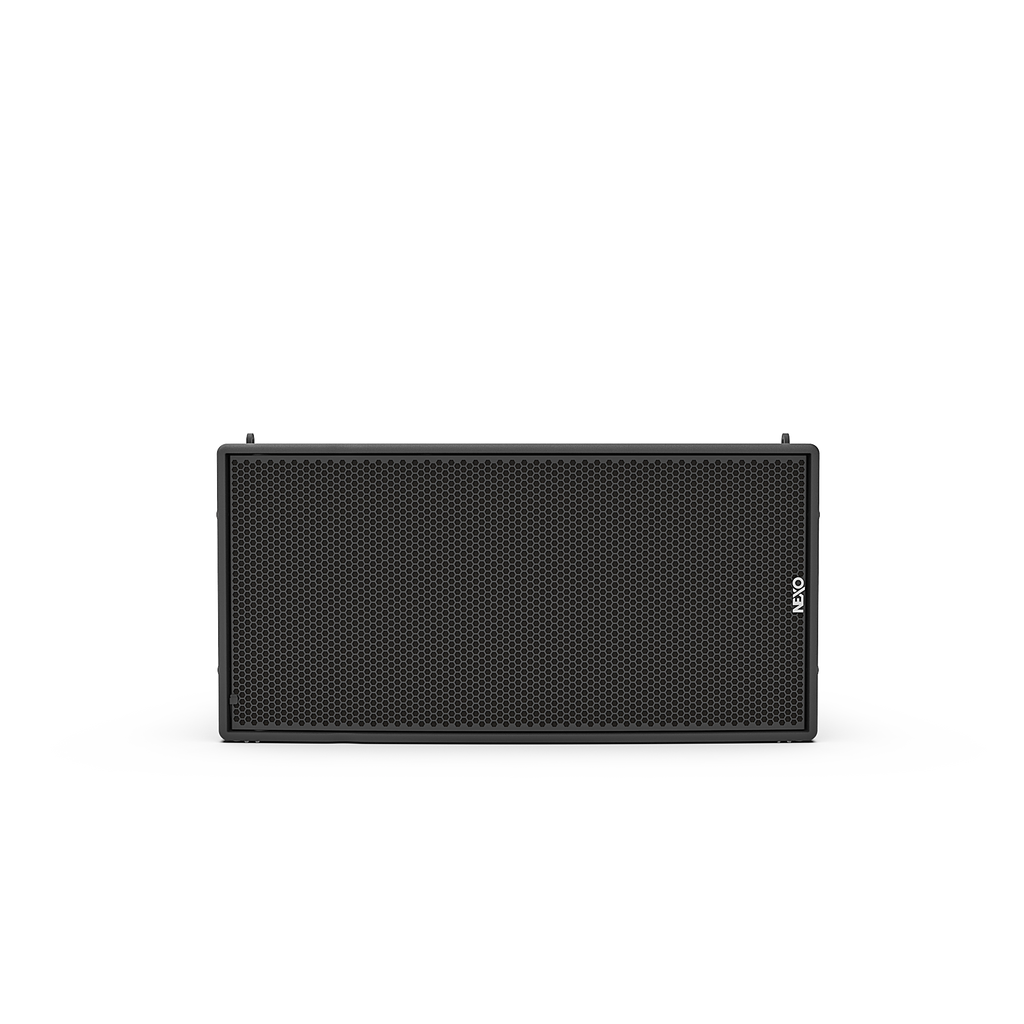

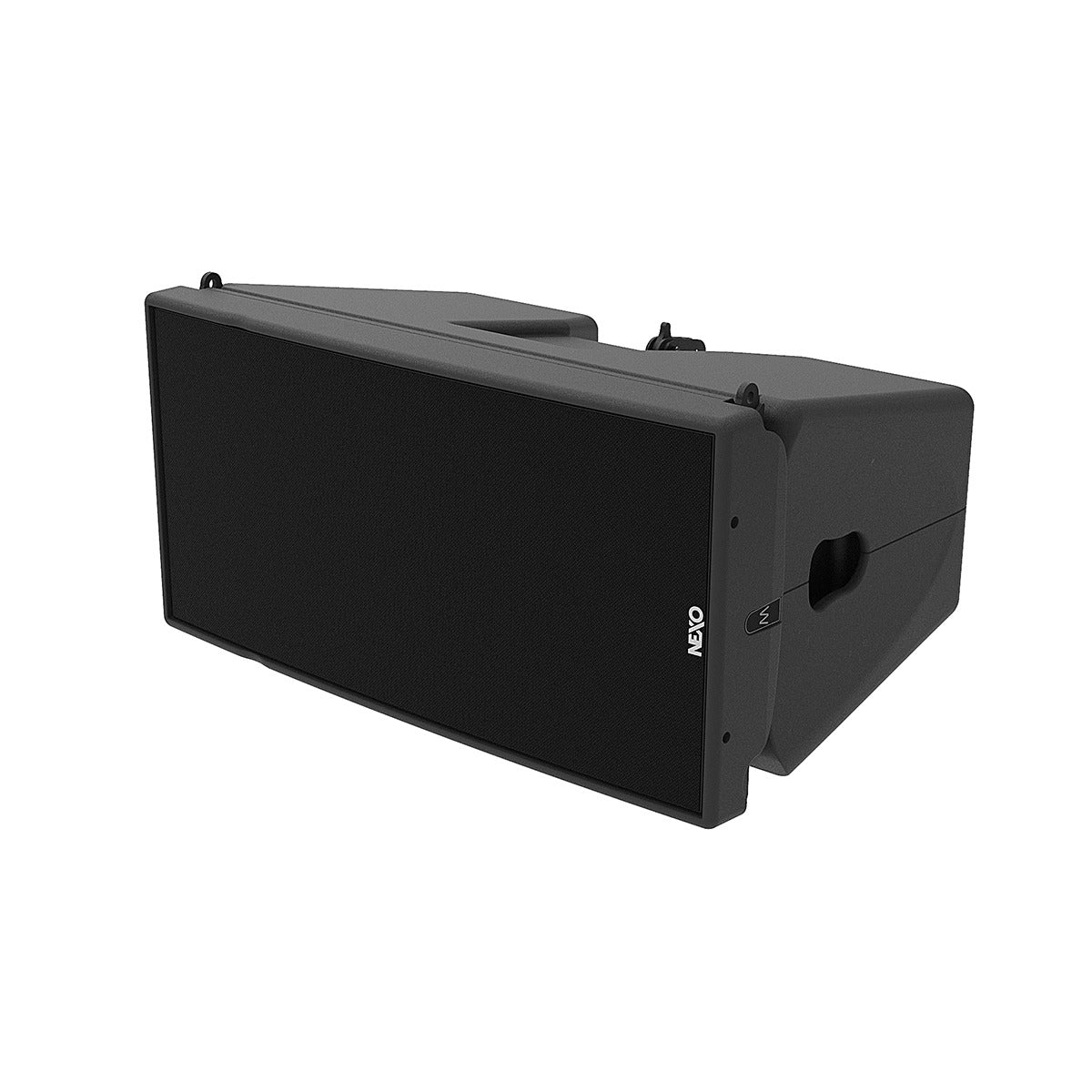

NEXO GEO M1210 12-inch 2-Way Line Array Element, Installation Version

Highlights

• 12-inch neodymium woofer with 3-inch/1.4-inch compression driver for high-output performance

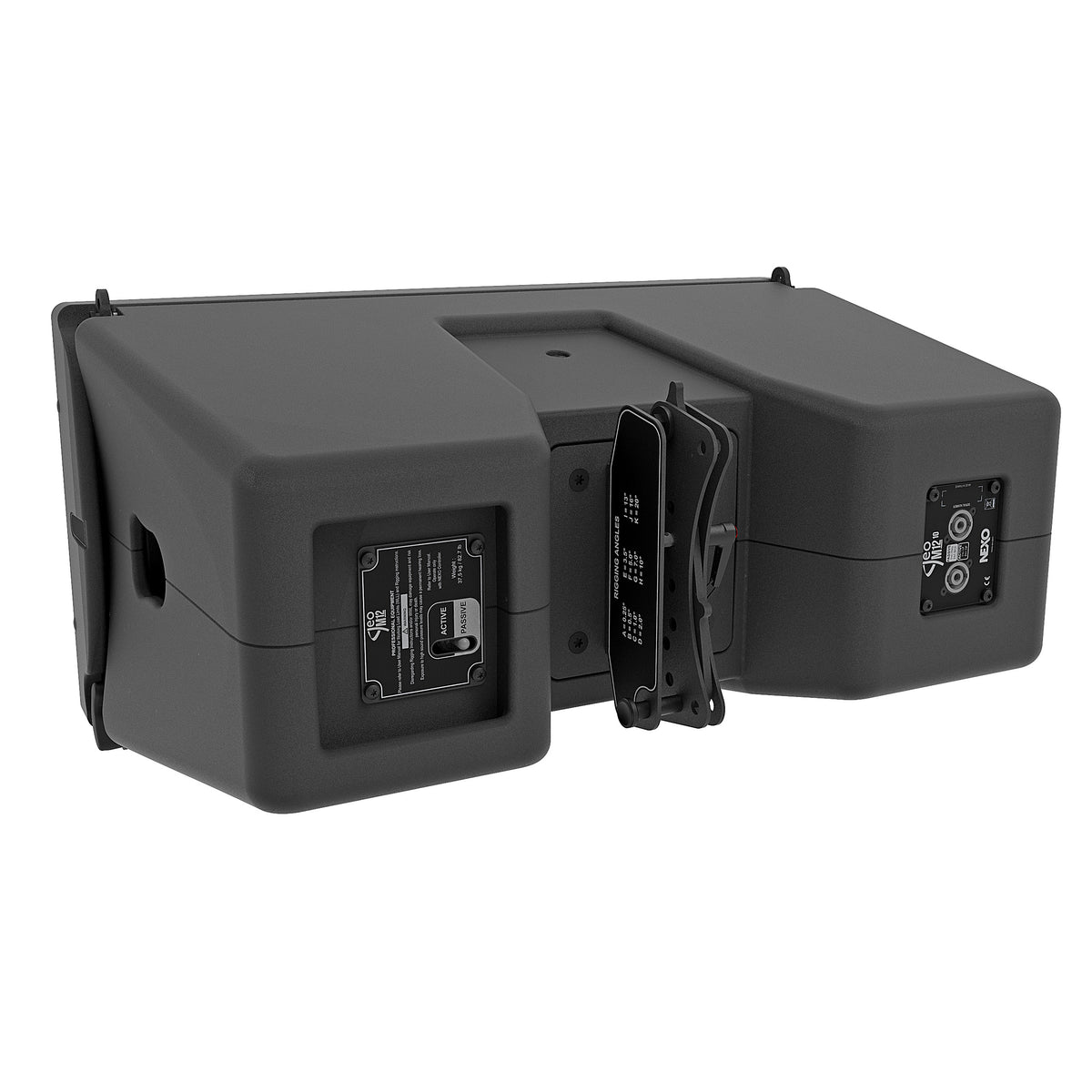

• Selectable Active or Passive operation via ruggedized waterproof switch
• 10° vertical x 80°/120° horizontal dispersion for precise coverage control
• 140 dB max SPL with 105 dB sensitivity for demanding installed applications

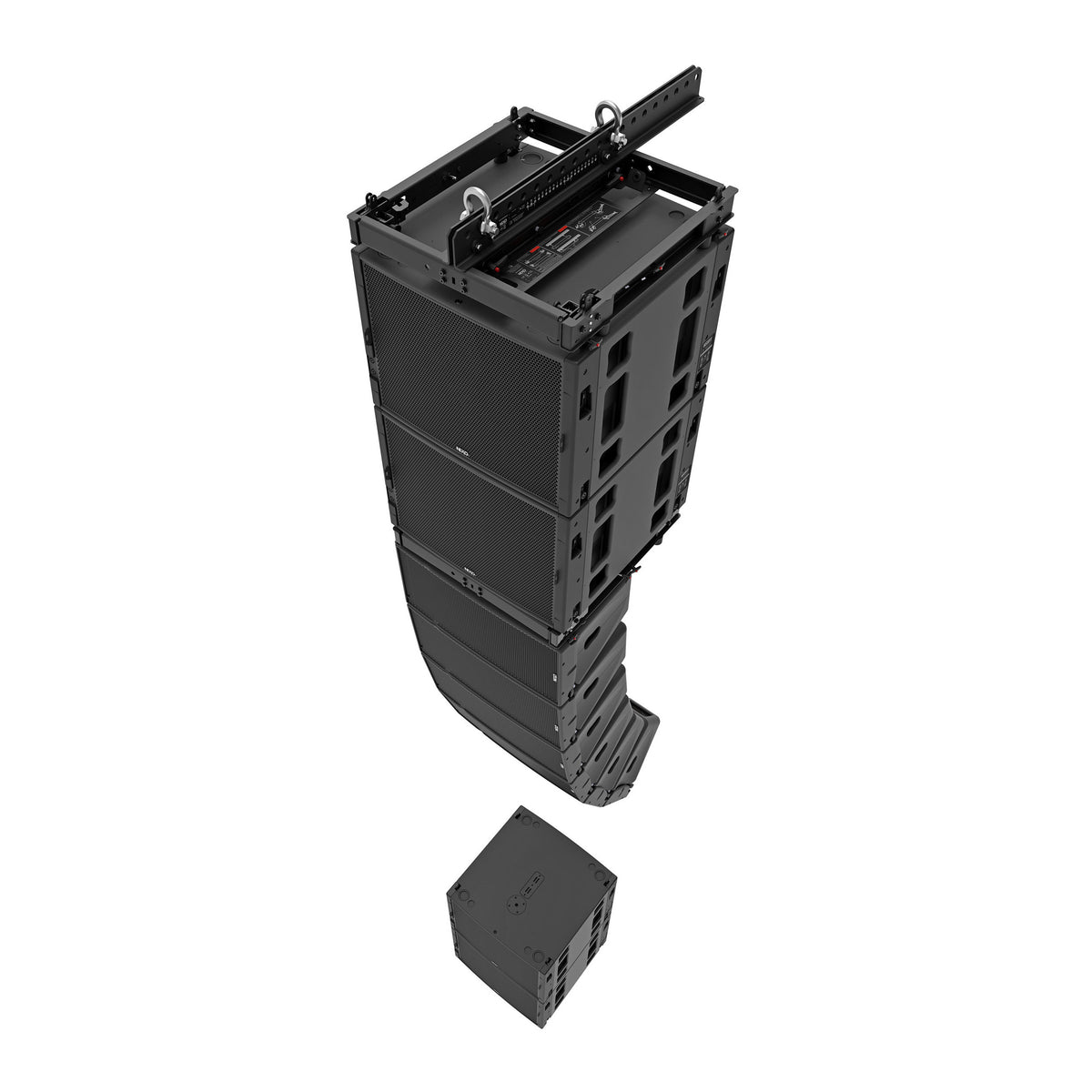

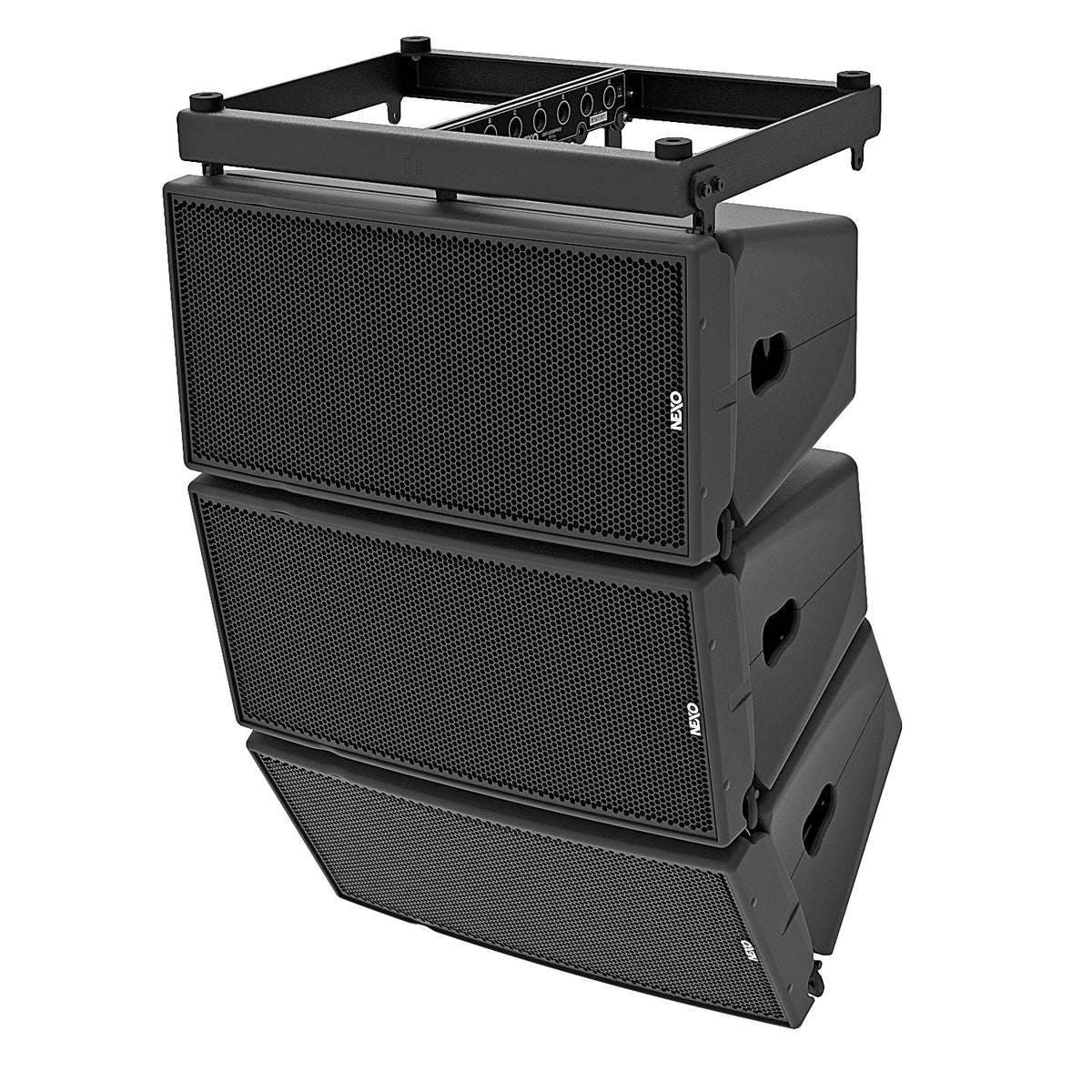

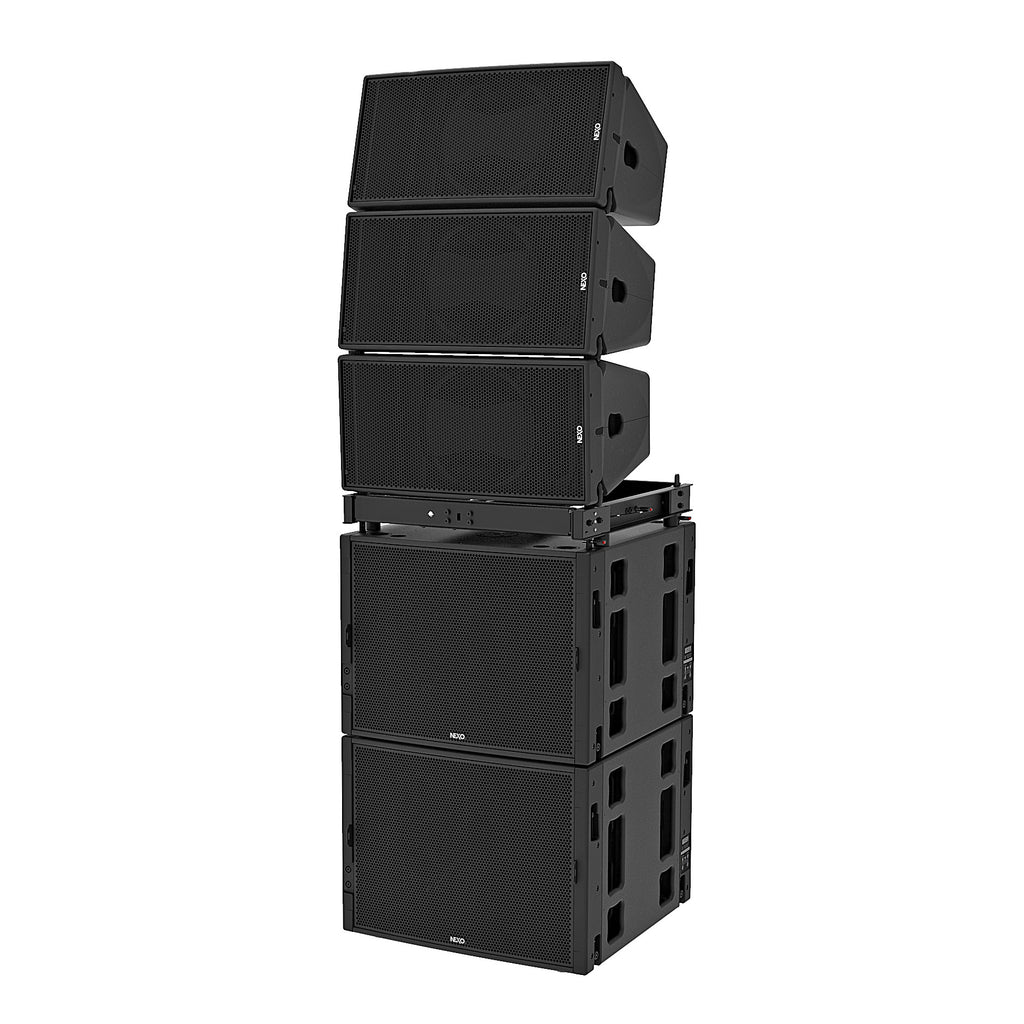

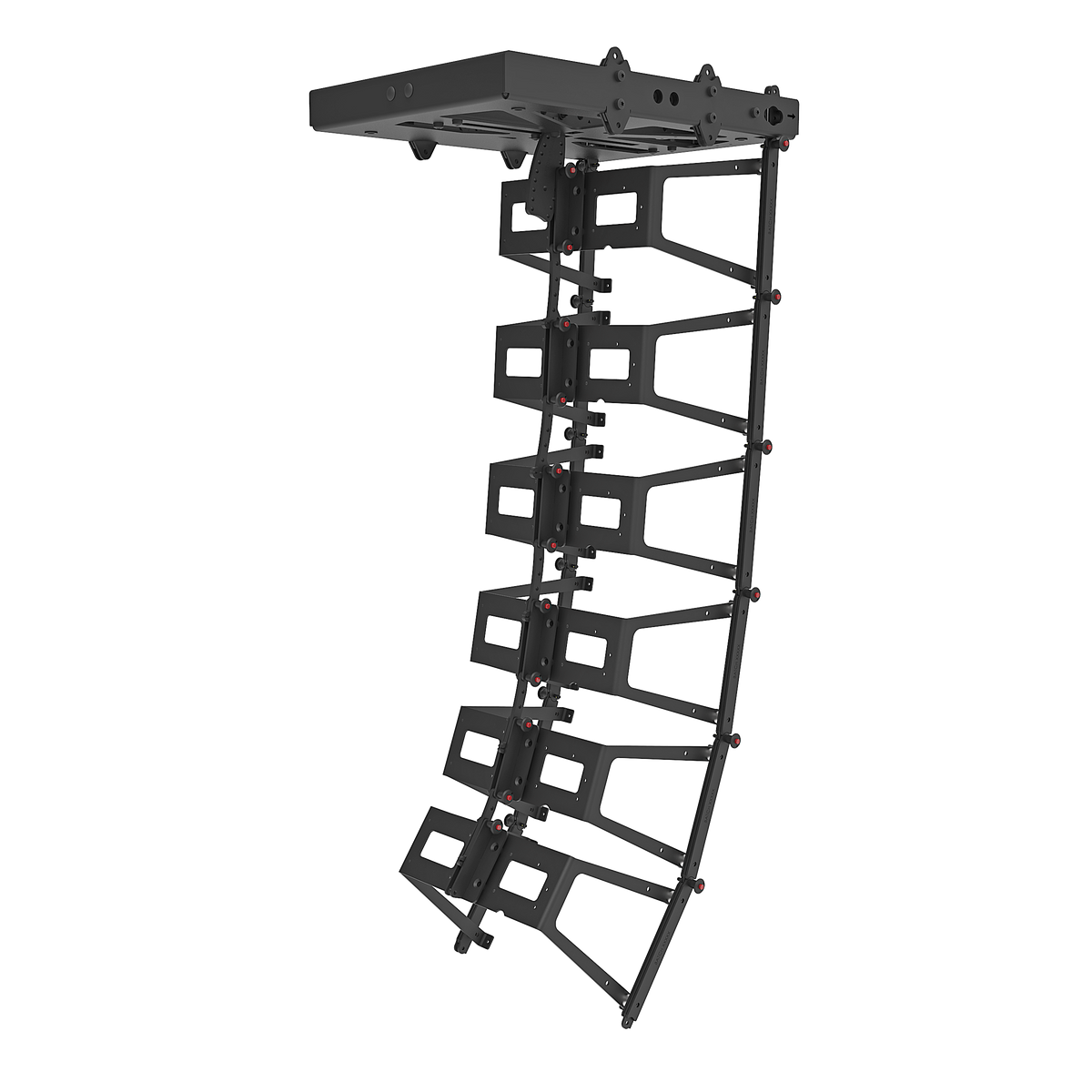

• Integrated rigging hardware with AutoRig feature for stacking or flying
• Lightweight polyurethane composite enclosure with honeycomb structure, 5-year warranty

Key specifications

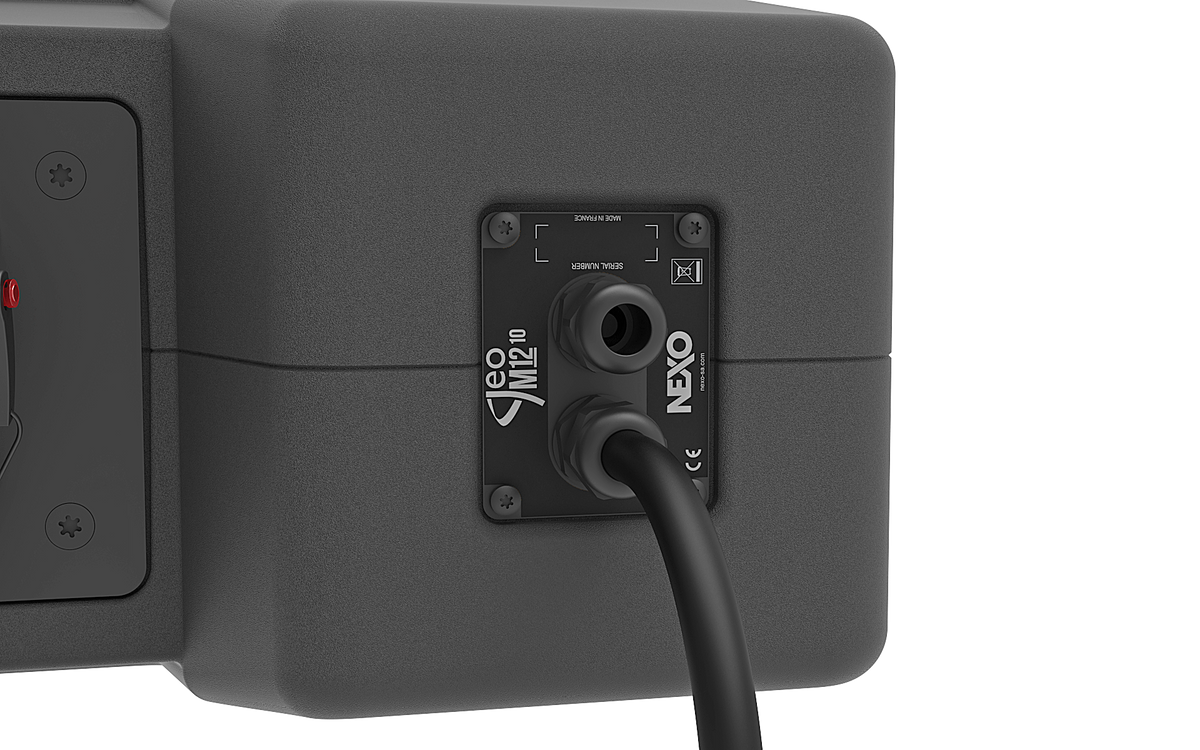

Nexo GEO M1210. Two-way passive or active line array element with 1x 12-inch long excursion Neodymium woofer and 1x 3-inch voice coil, 1.4-inch throat compression driver on a BEA/FEA optimized HR Wavesource waveguide. Dispersion: 10° vertical, 80° horizontal (120° with CDD). Frequency response: 50 Hz to 20 kHz. Sensitivity: 105 dB. Maximum SPL: 140 dB. Nominal impedance: 8 Ω LF + 16 Ω HF (active mode) or 8 Ω (passive mode). Recommended power: 1250 W LF + 625 W HF (active mode) or 1250 W (passive mode). Inputs: 2x cable gland with 4-core cables (Installation version). Control: ruggedized, recessed, waterproof 2-position switch for Active/Passive mode selection. Operating temperature: 0°C – 40°C. Dimensions: 700 x 370 x 446 mm; weight: 34 kg. Cabinet: lightweight polyurethane composite with honeycomb structure. 5-year warranty.
