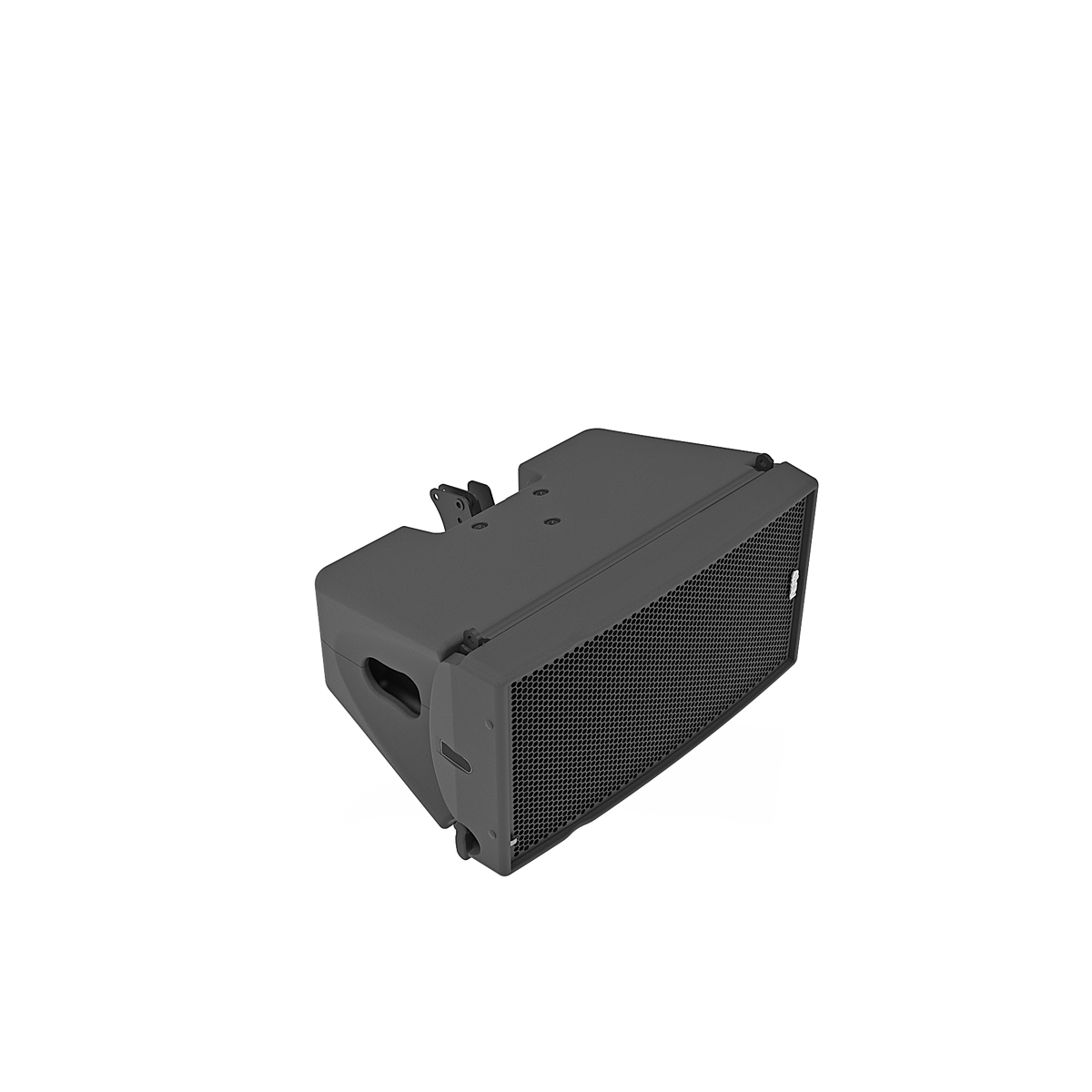

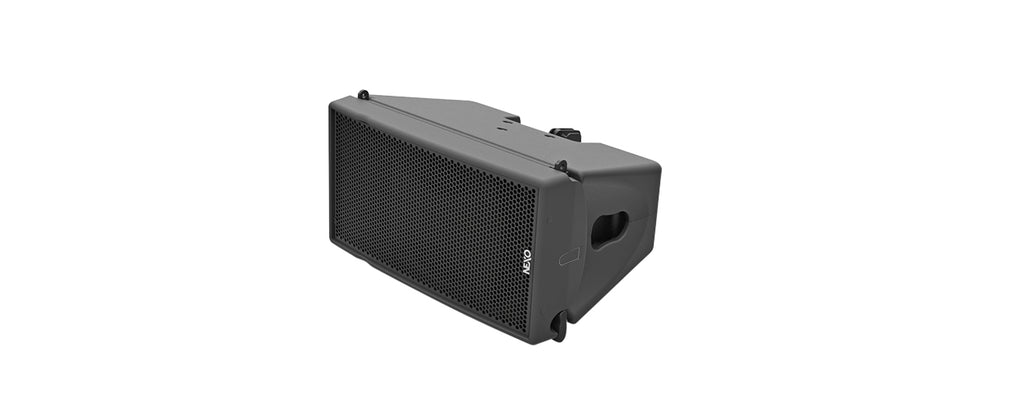

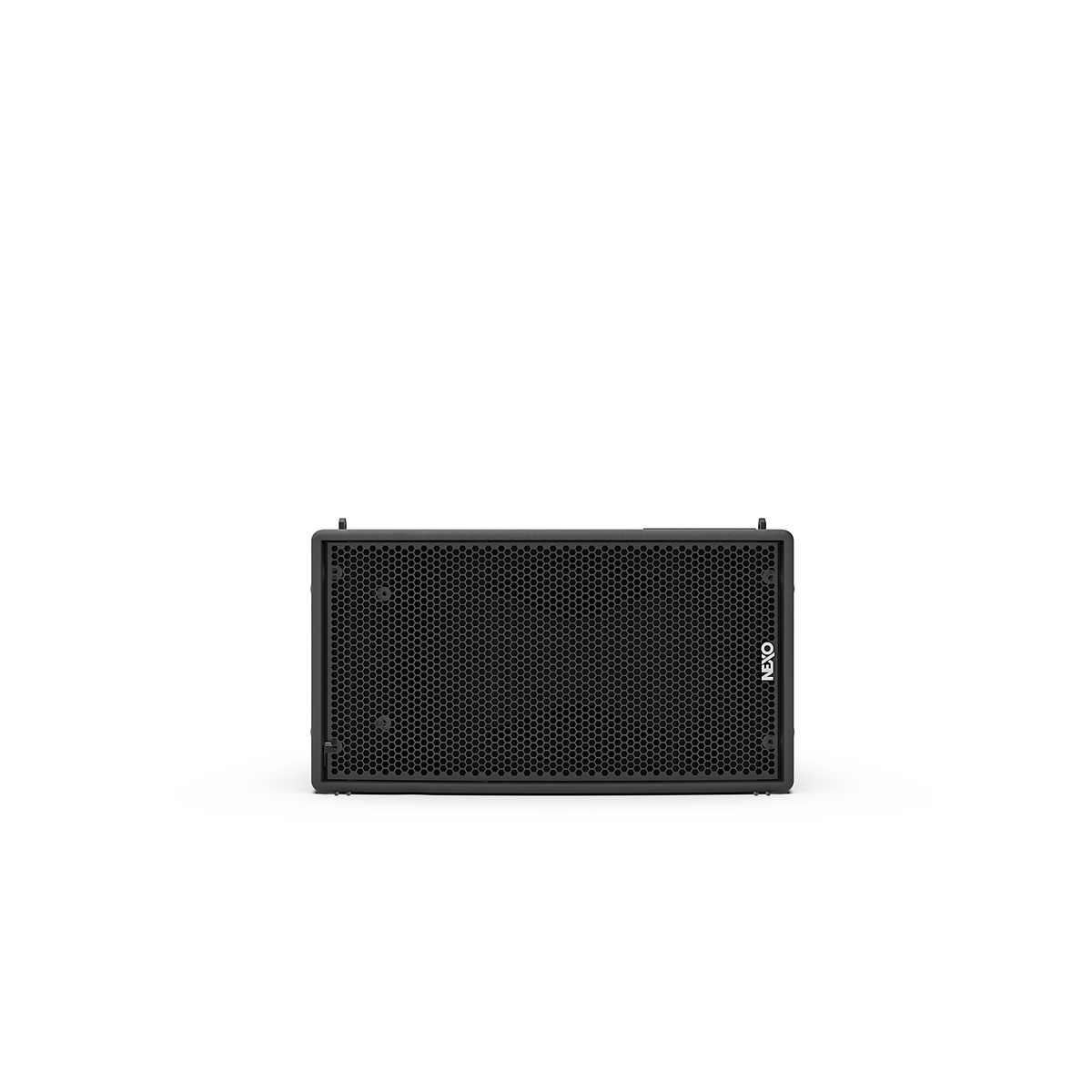

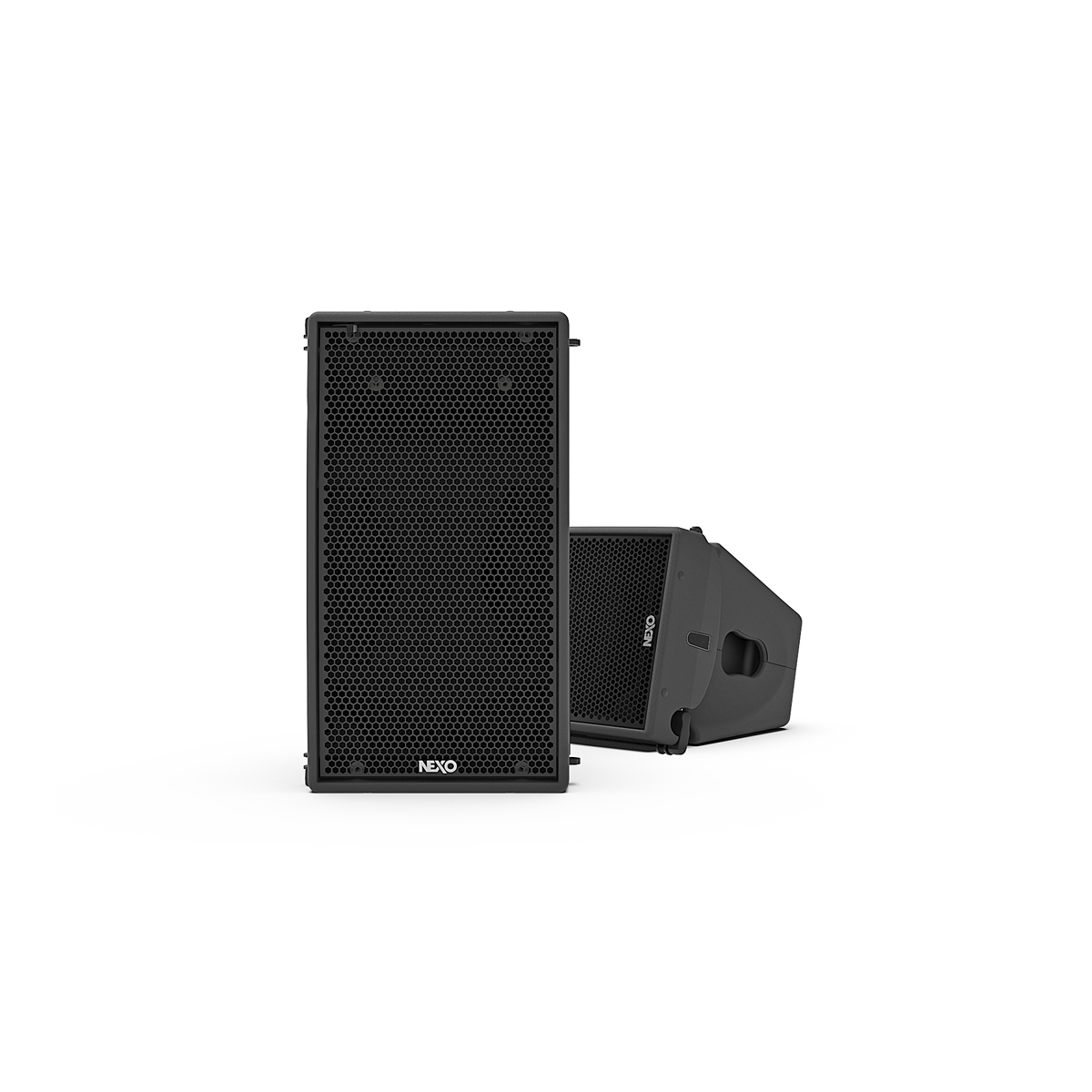

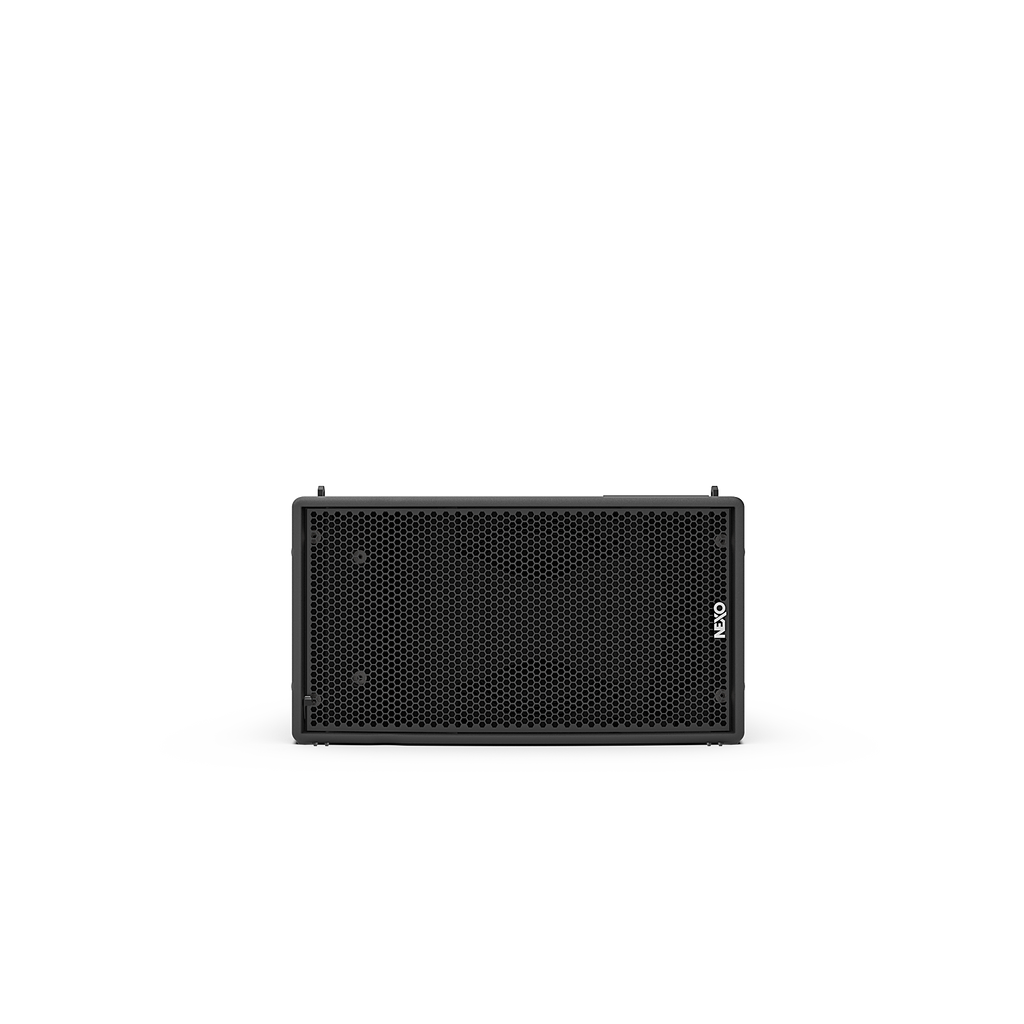

NEXO GEO M1012 2-Way Passive 12° Line Array Element, Touring Version

Highlights

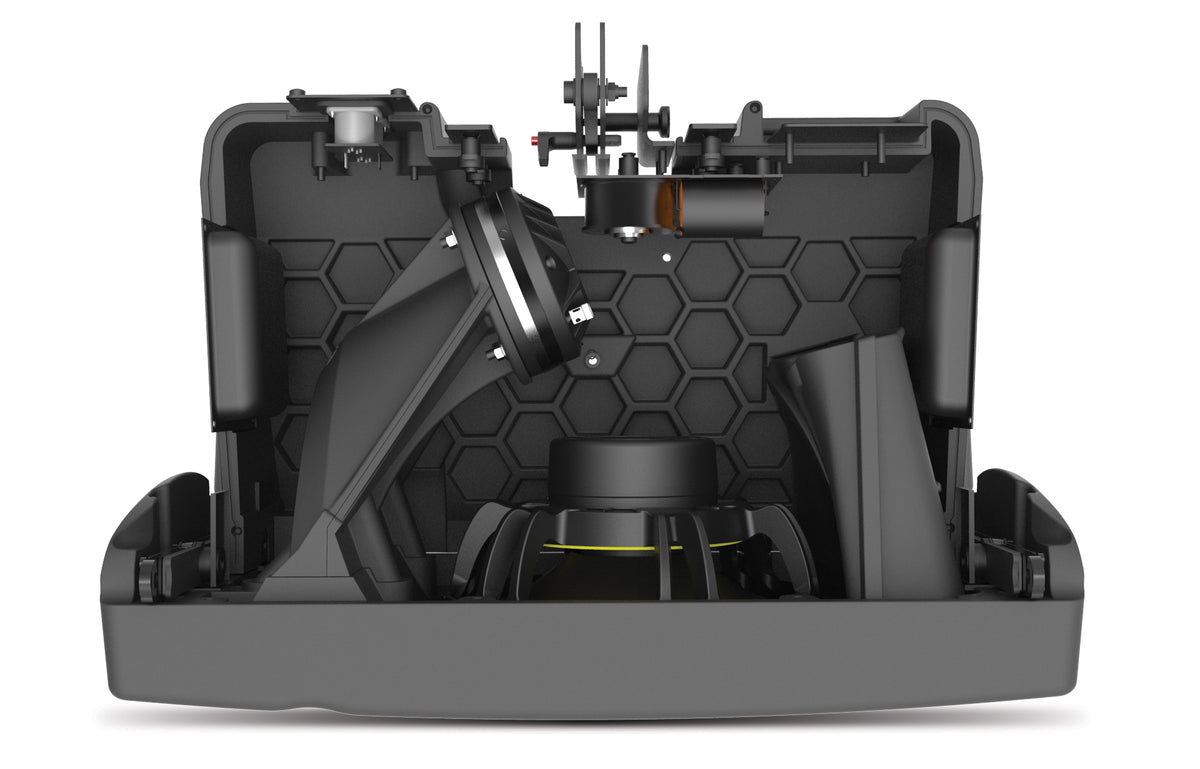

• 10" Neodymium LF driver with 1.4" HF compression driver on HRW Wavesource
• 136 dB max SPL with 100 dB sensitivity
• 12° vertical x 80° horizontal dispersion, expandable to 120° with optional CDDTM

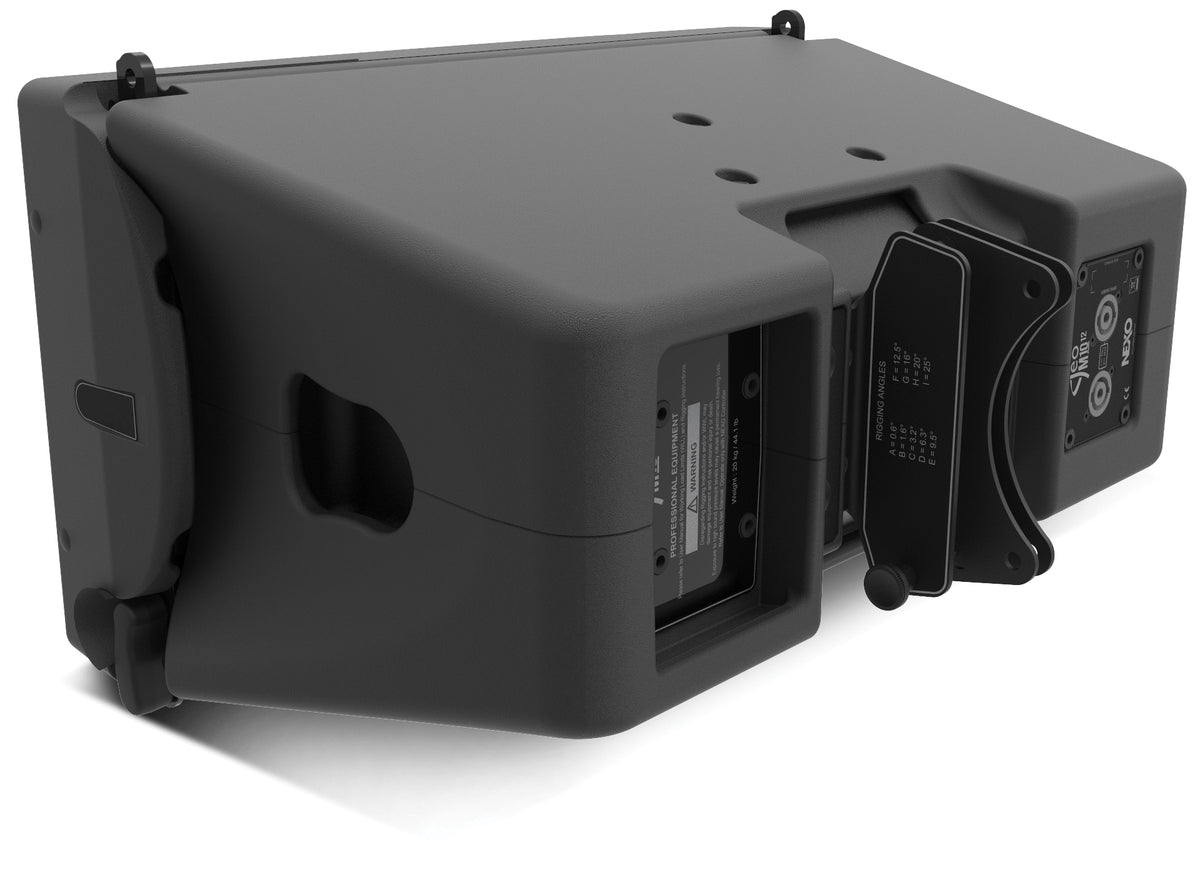

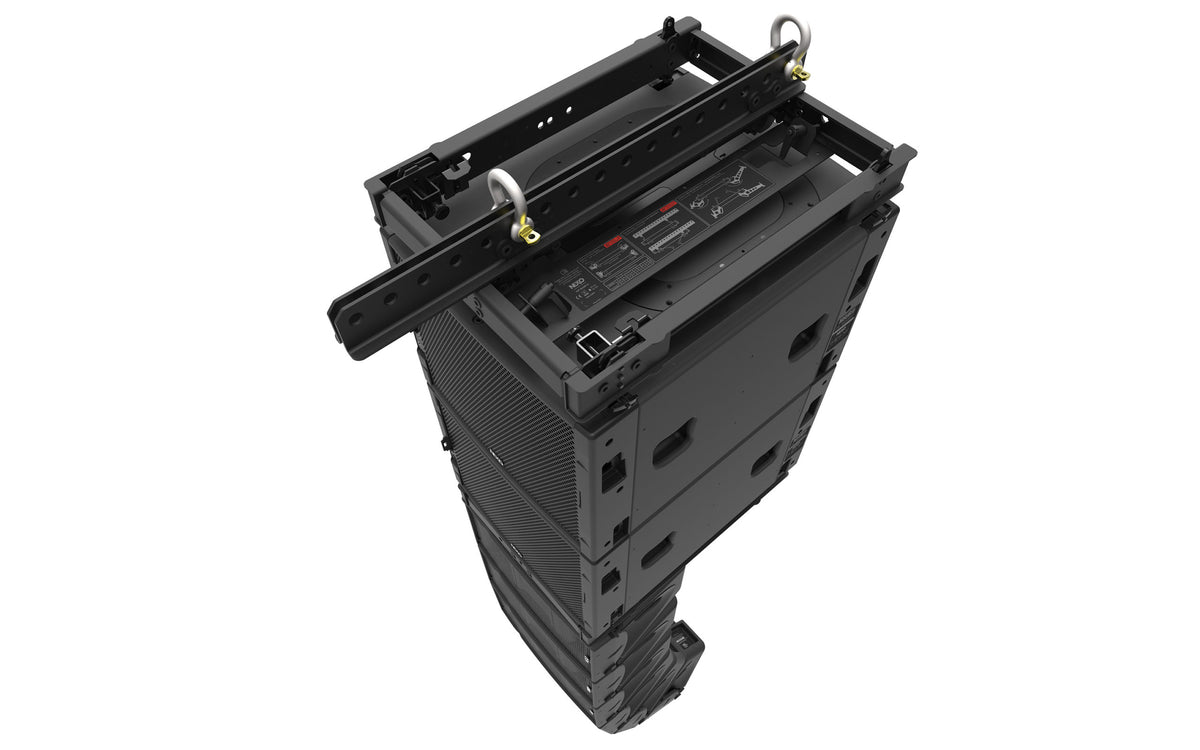

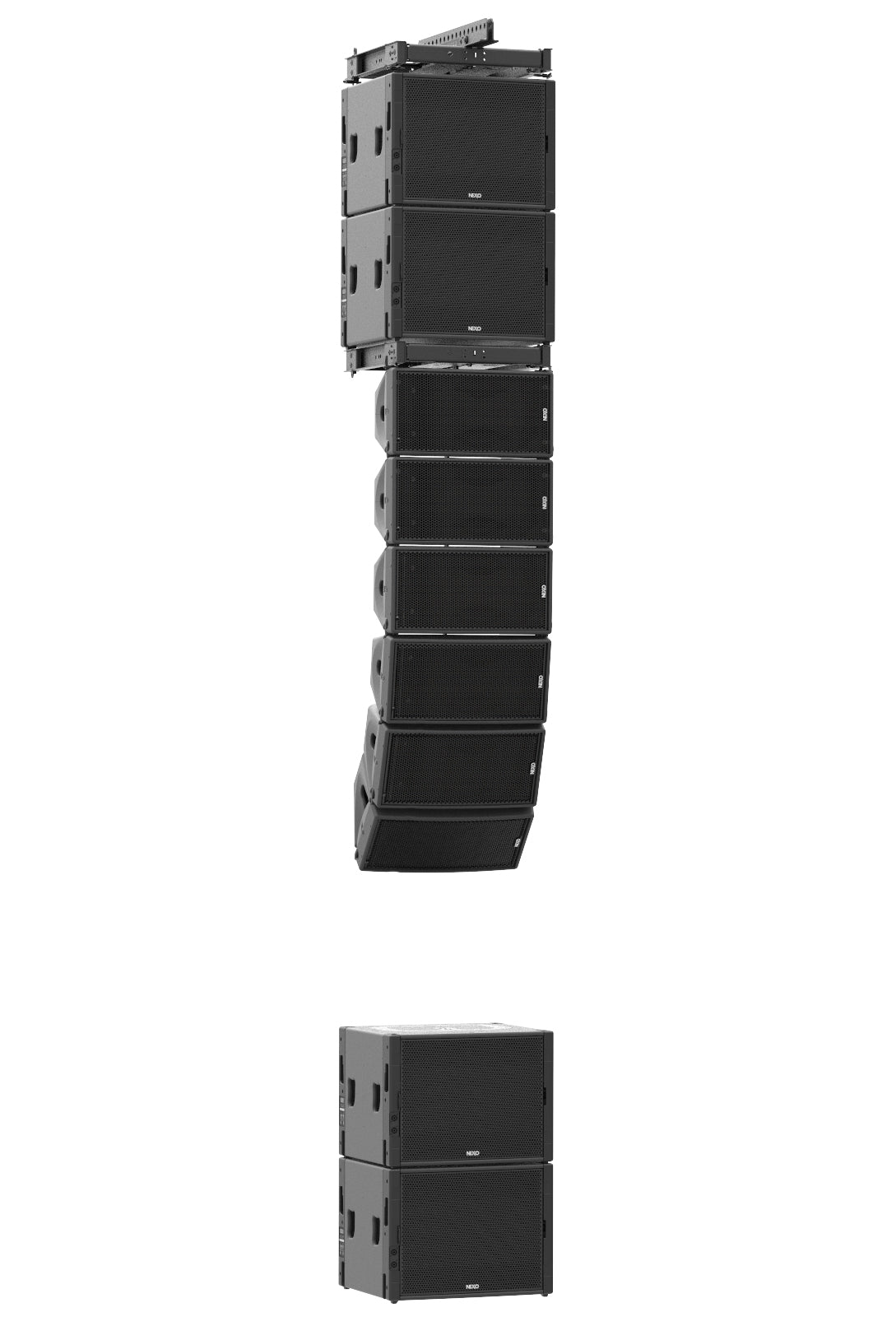

• Integrated rigging hardware with AutoRig for fast, safe flying or stacking

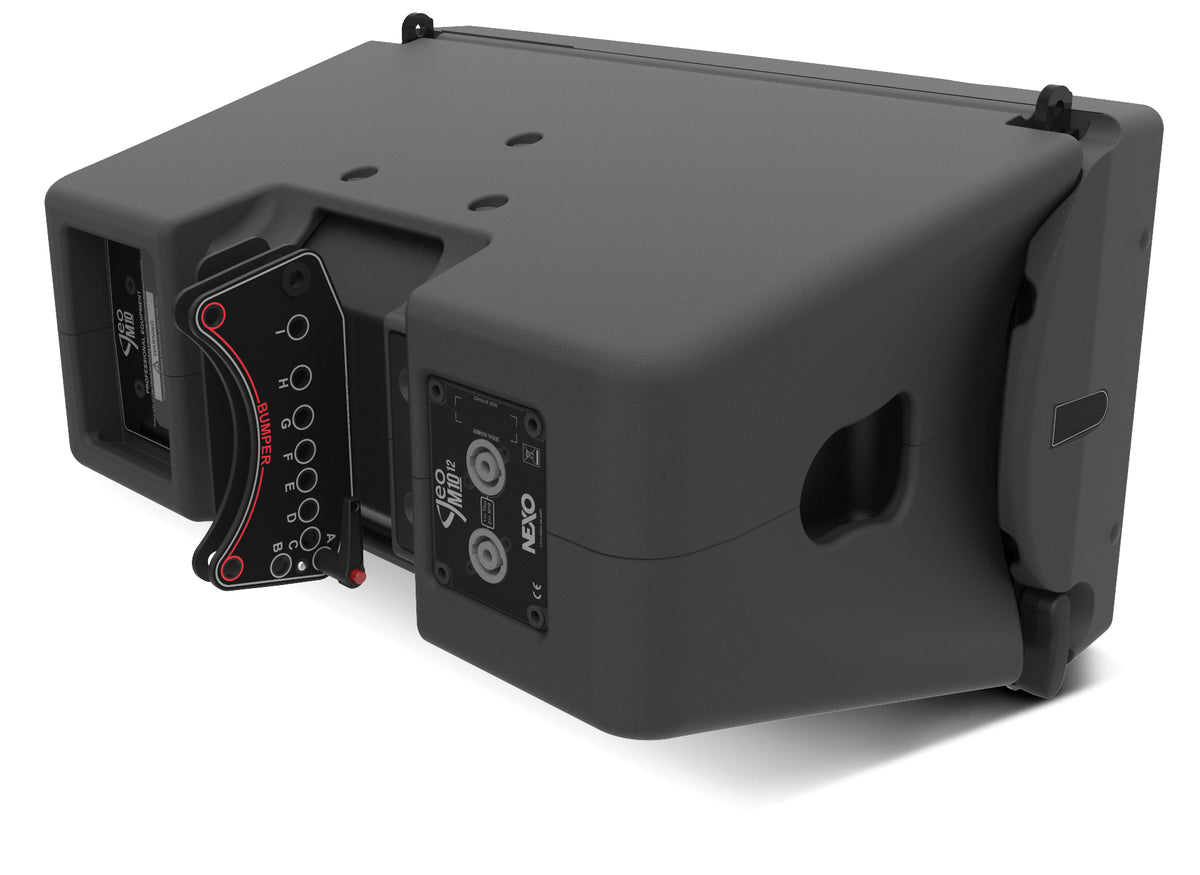

• Touring version with 2x NL4 4-pole connectors

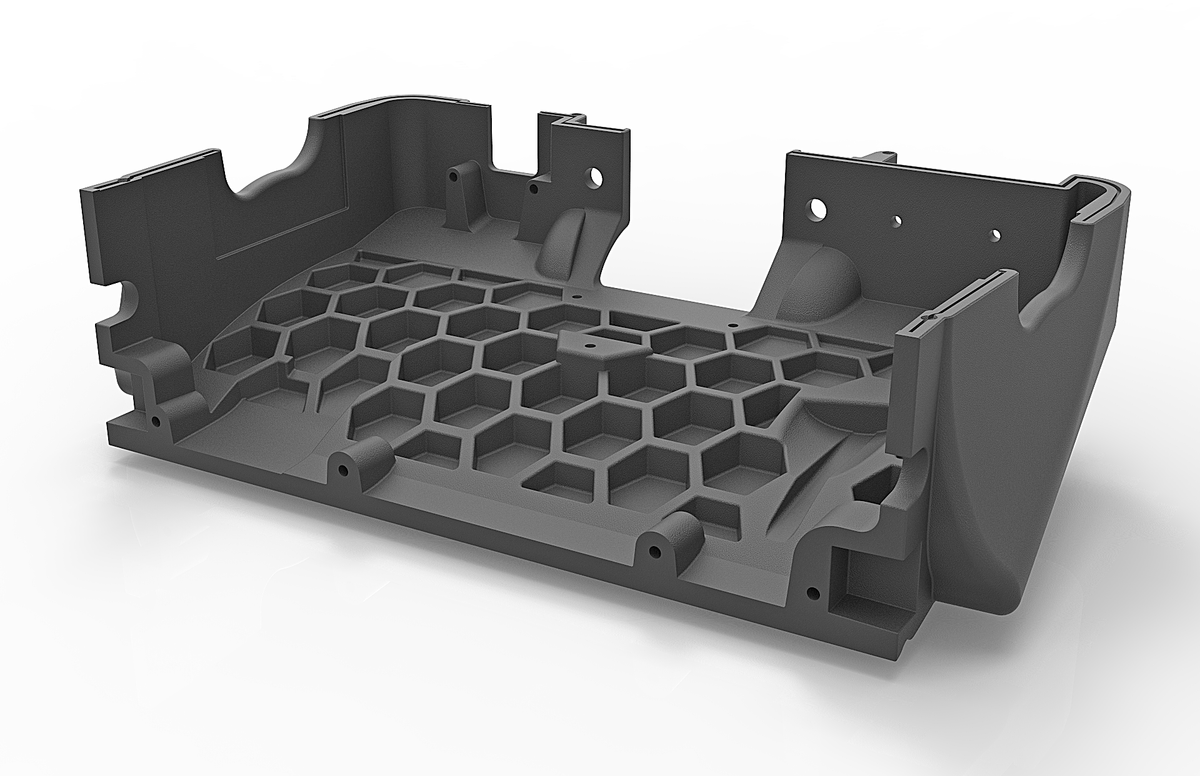

• Lightweight polyurethane composite enclosure, 21 kg

Key specifications

Nexo GEO M1012 (Touring Version). Line array element, 2-way passive, with 10" LF and 1.4" HF driver on HRW Wavesource. Driver configuration: 1 x 10" 8 Ohm long excursion Neodymium driver with PDDTM + 1 x 1.4" throat driver on HRW Wavesource. Frequency response: 59 Hz to 20 kHz. Sensitivity: 100 dB. Maximum SPL: 136 dB. Nominal impedance: 8 Ohm. Recommended amplifier power: 750 W. Dispersion: 12° vertical, 80° horizontal (120° with optional CDDTM). Inputs: 2x NL4 4-pole connectors (Touring version). Operating temperature: 0°C – 40°C. Dimensions: 531 x 288 x 355 mm; weight: 21 kg. Enclosure material: lightweight polyurethane composite. Warranty: 2 years.
