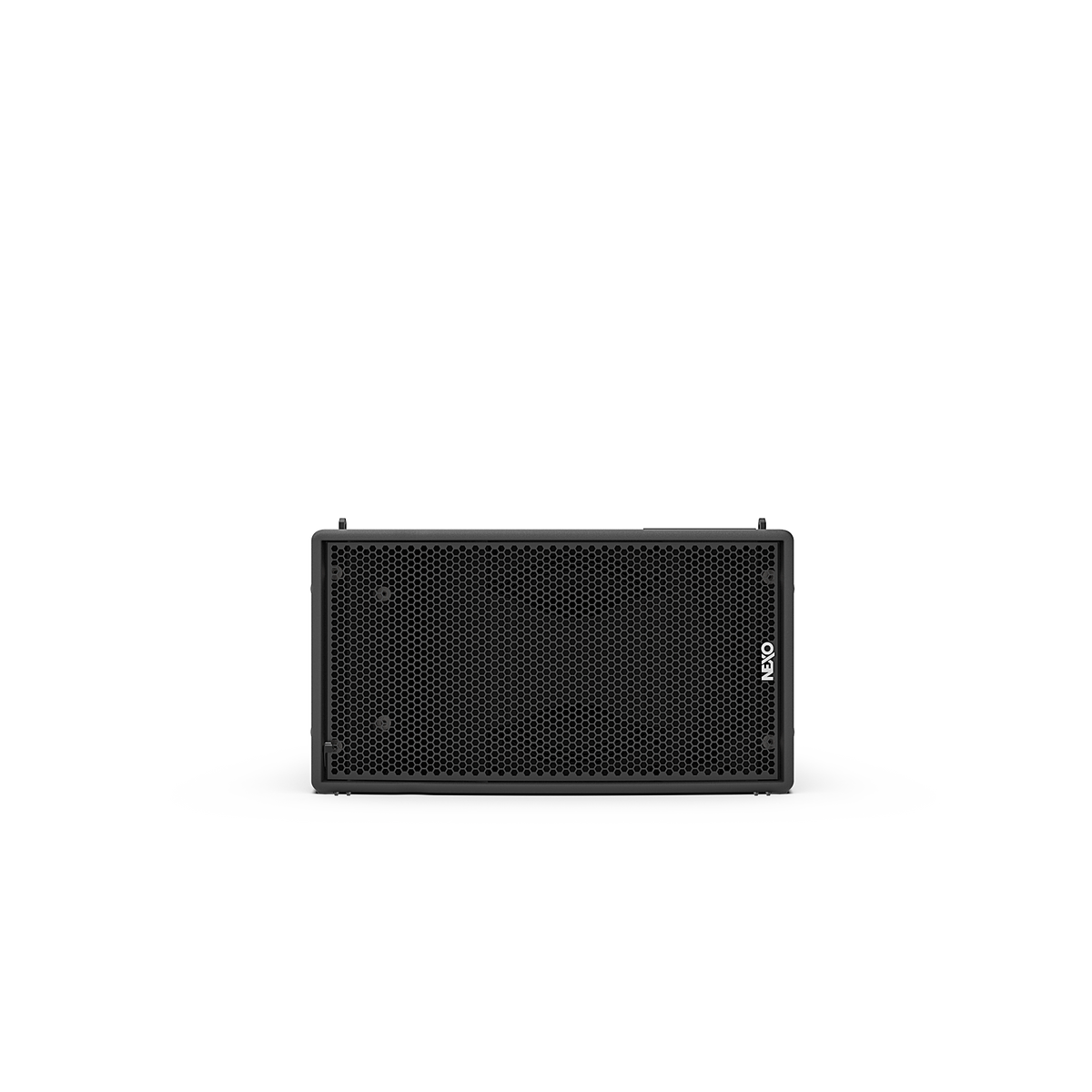

NEXO GEO M1012 10-inch 2-Way Line Array Element, Installation Version, White

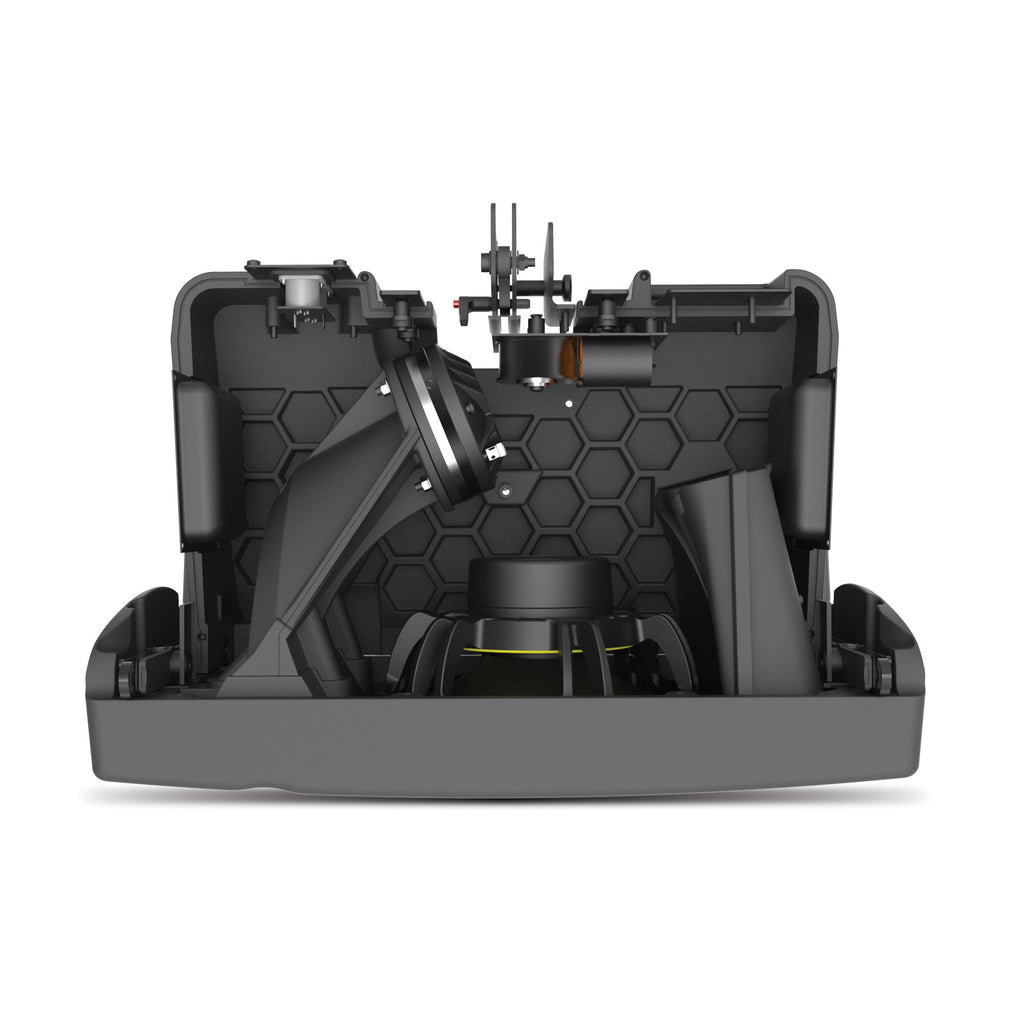

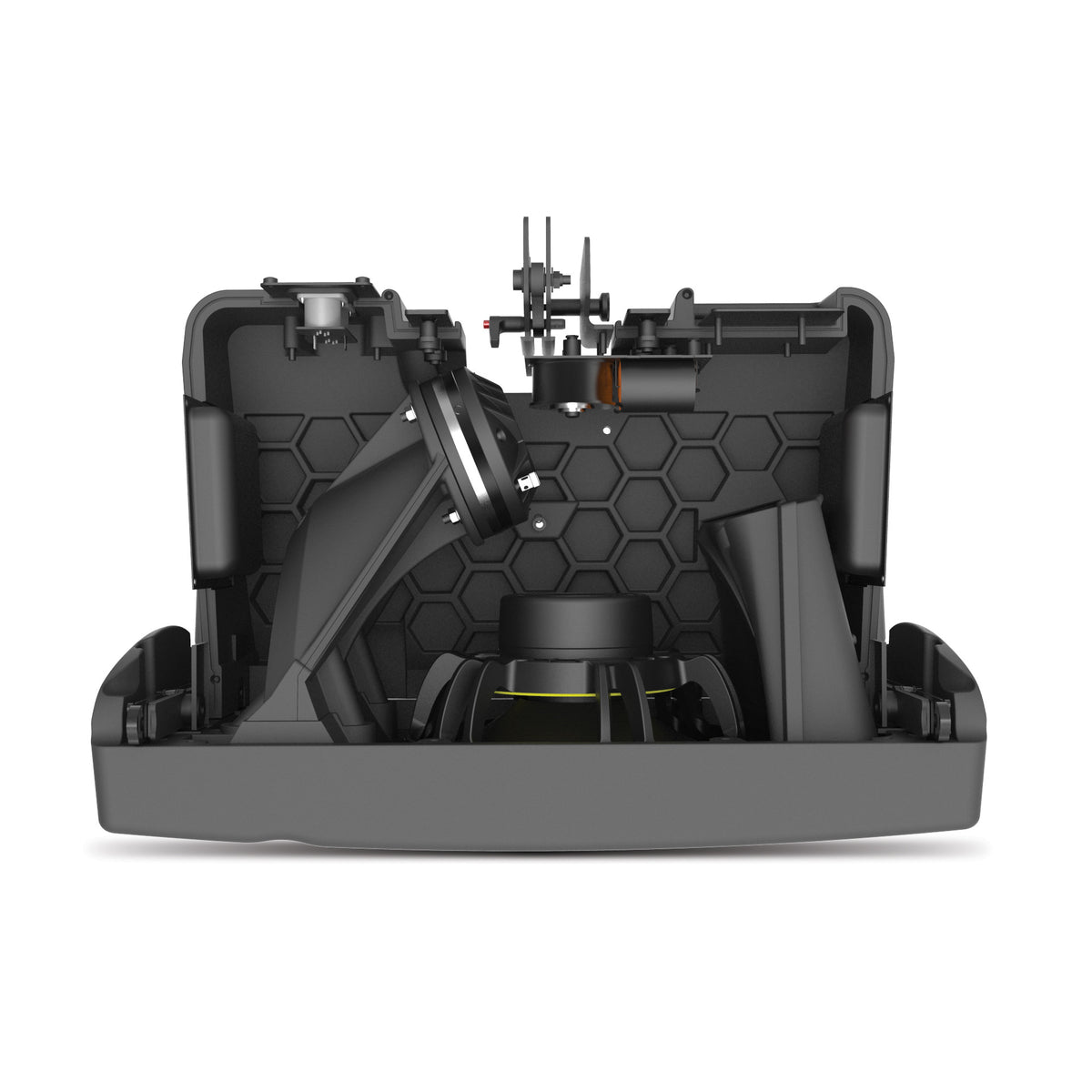

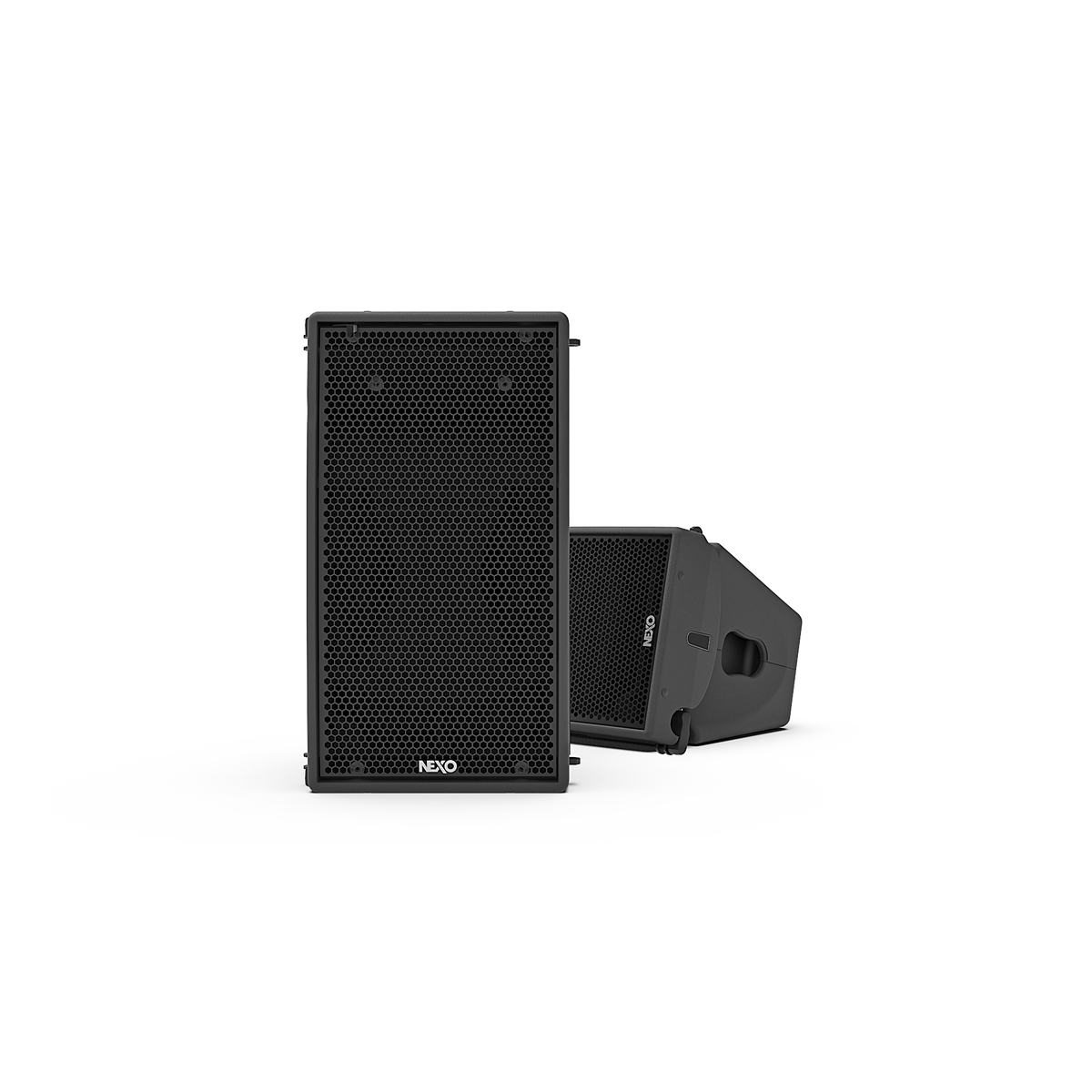

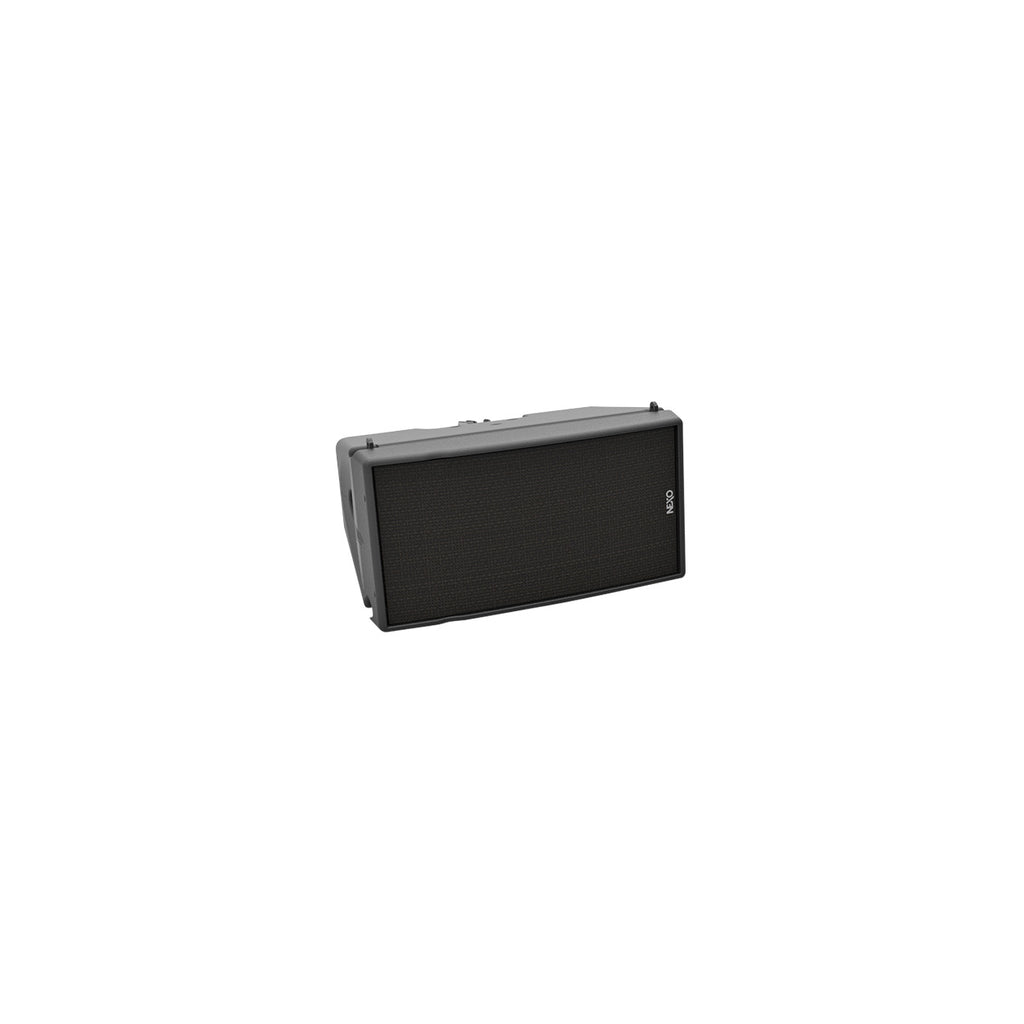

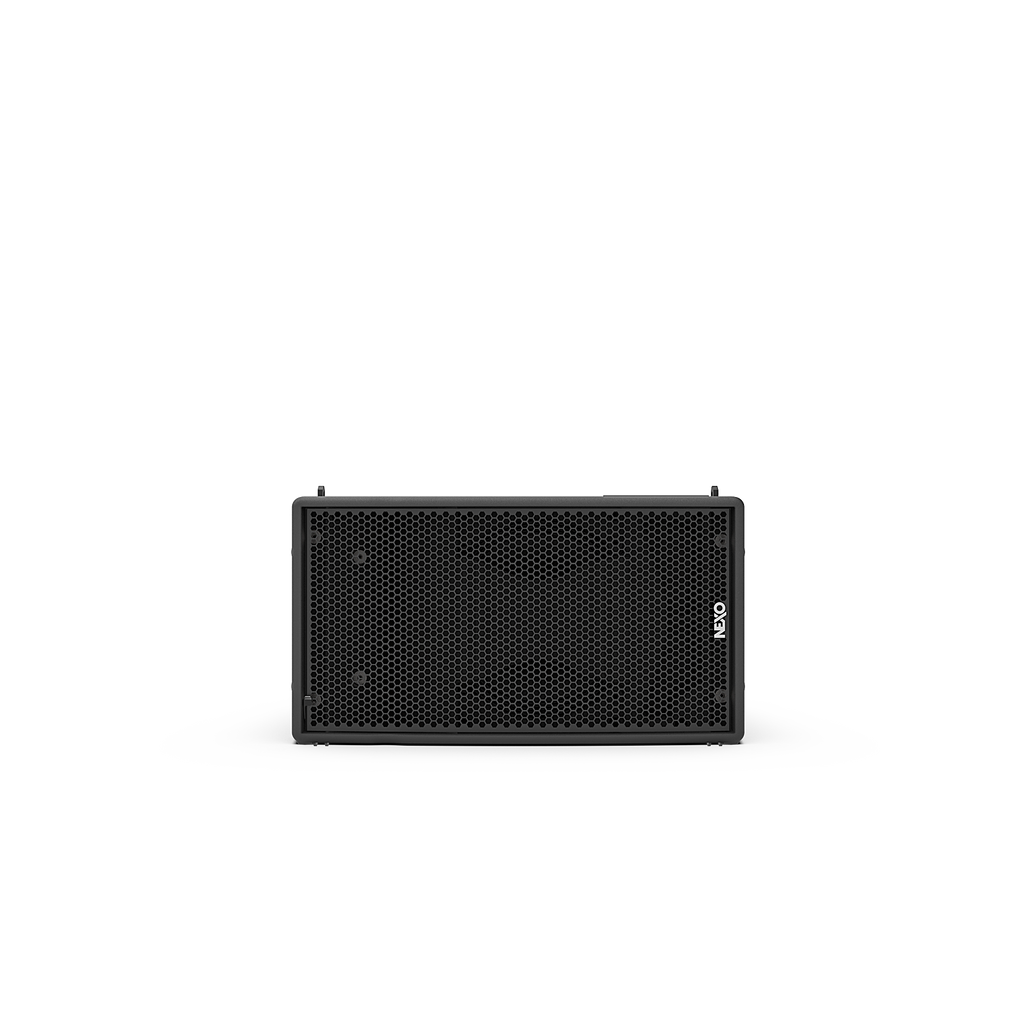

The NEXO GEO M1012 is a compact two-way passive line array element combining a 10-inch Neodymium long-excursion LF driver with a 1.4-inch throat HF driver mounted on an HR Wavesource waveguide. Finished in white, this Installation version is designed for permanent deployment in venues requiring consistent, high-quality coverage from a compact enclosure.

With a vertical dispersion of 12° and horizontal coverage of 80° (expandable to 120° with the optional CDD accessory), the GEO M1012 delivers controlled, even sound distribution. It reproduces a frequency range of 59 Hz to 20 kHz, reaches a maximum SPL of 136 dB, and offers a sensitivity of 100 dB at 8 Ω nominal impedance, with a recommended amplifier power of 750 W.

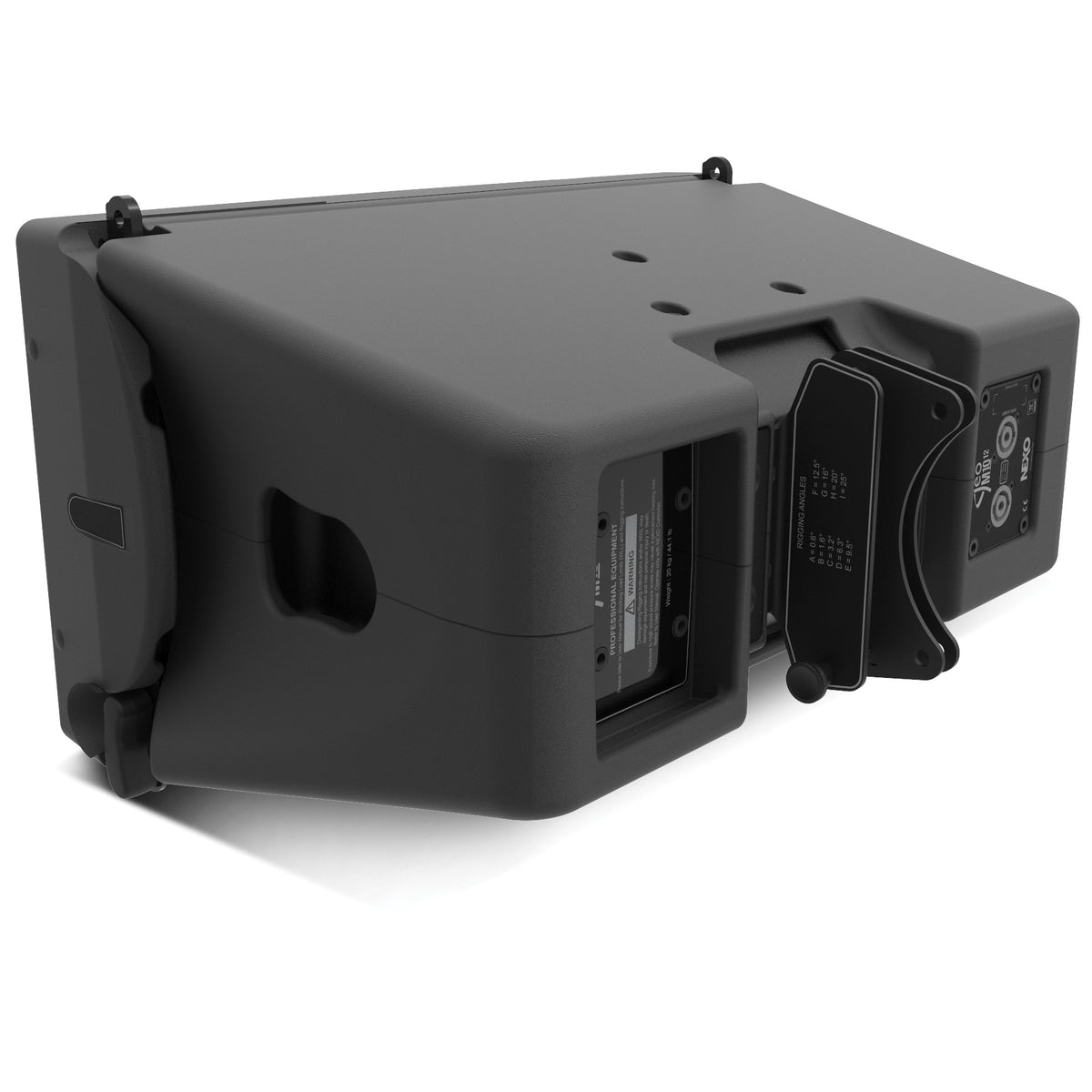

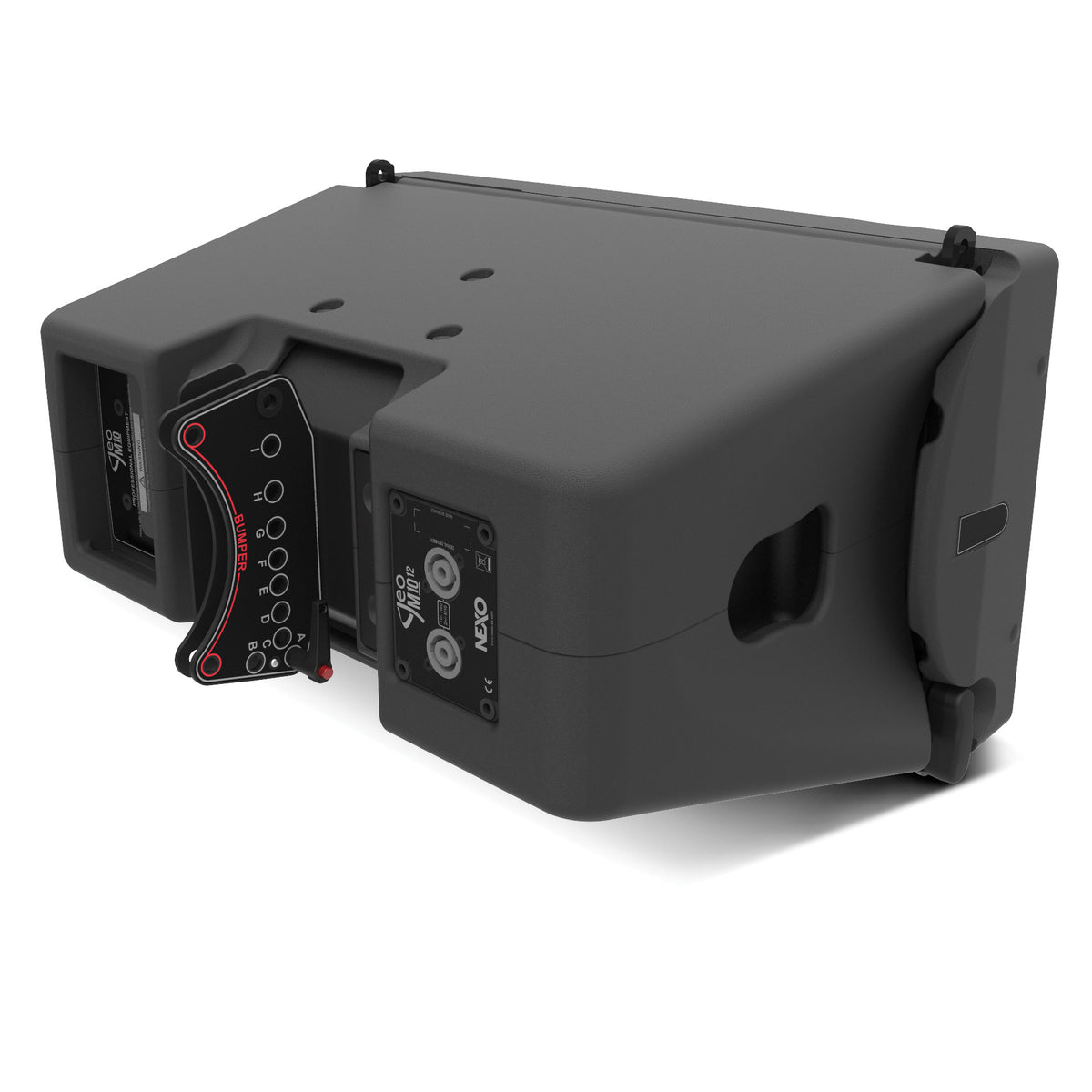

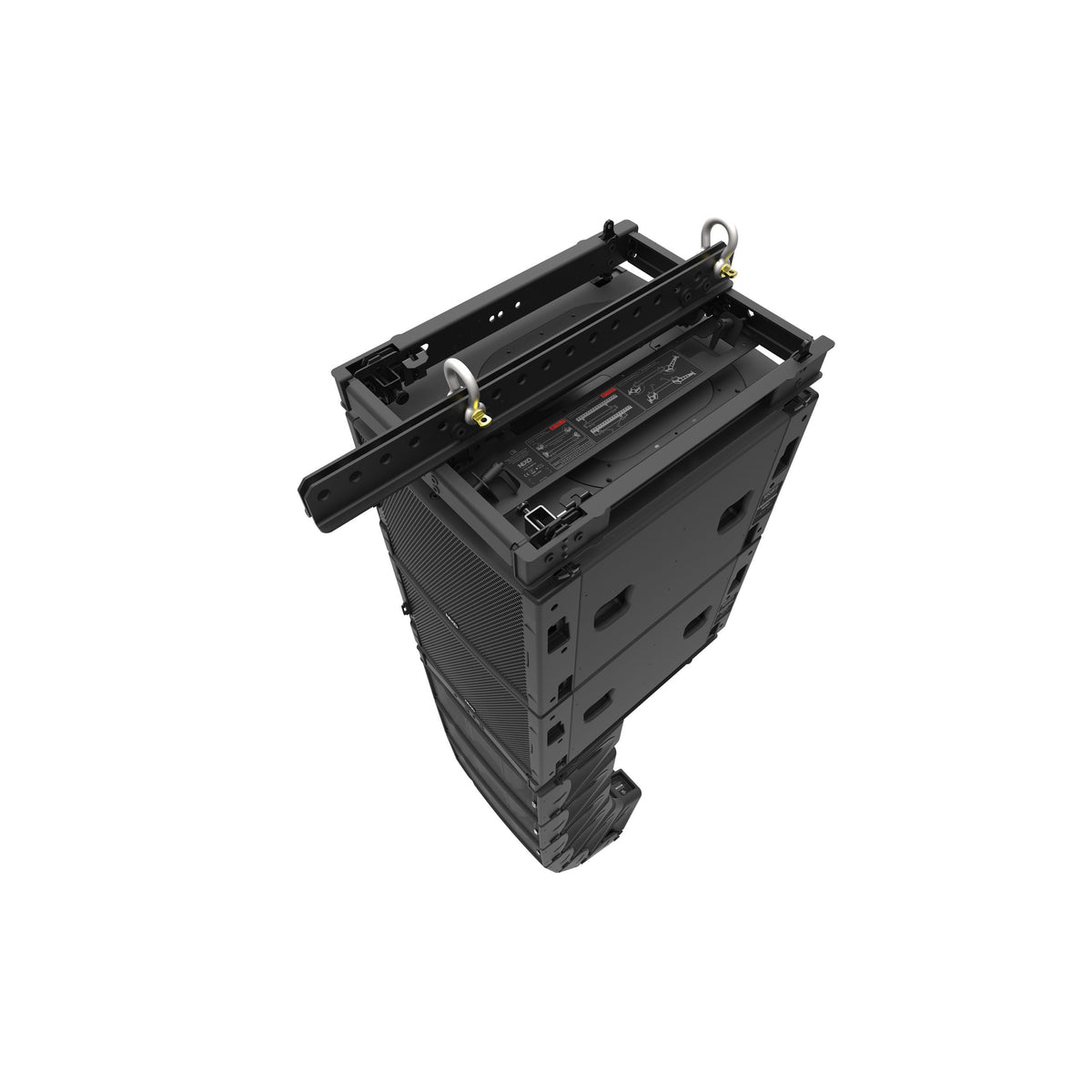

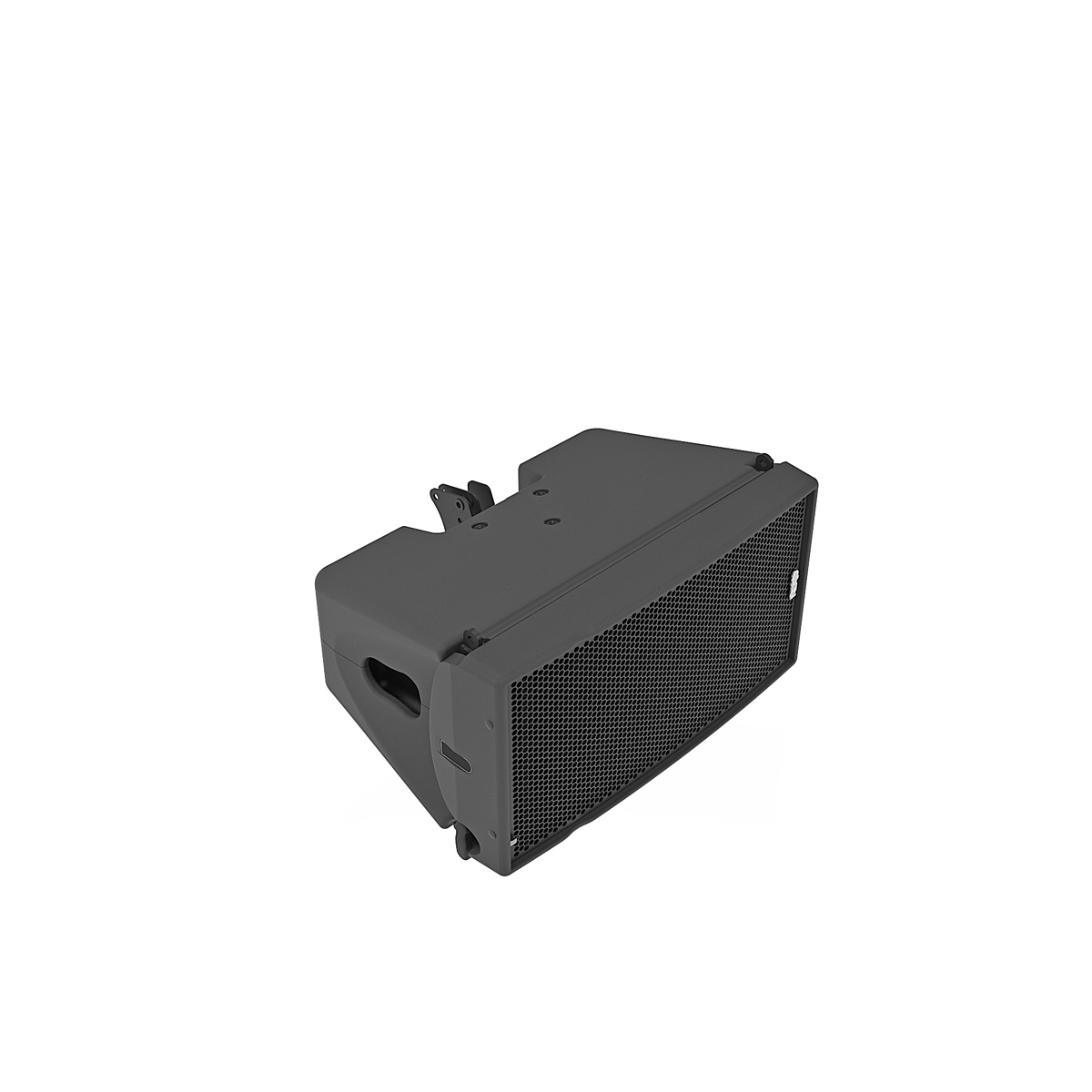

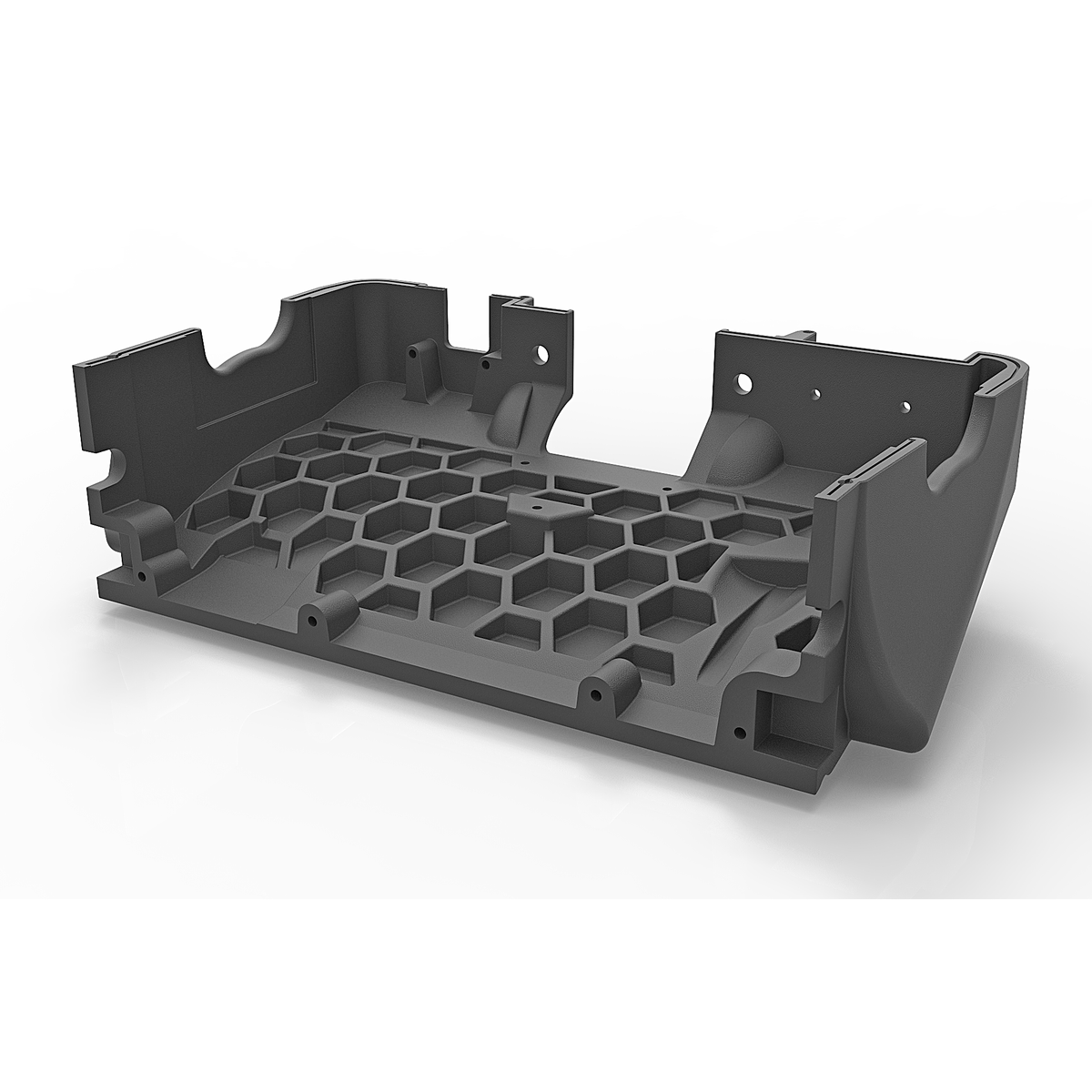

The Installation version features two cable gland connectors with 2-core cabling for fixed wiring, and integrates NEXO's AutoRig hardware for rigging without loose parts. Built from lightweight polyurethane composite, the enclosure operates across 0°C to 40°C and is backed by a 2-year manufacturer warranty.

• 10-inch Neodymium LF driver + 1.4-inch HF compression driver
• 136 dB maximum SPL
• 12° vertical / 80° horizontal dispersion
• 750 W recommended amplifier power
• Dimensions: 531 x 288 x 355 mm, 21 kg
