NEXO ePS6-EN54 6-inch 2-Way Horn-Loaded Loudspeaker, Installation Version, Black

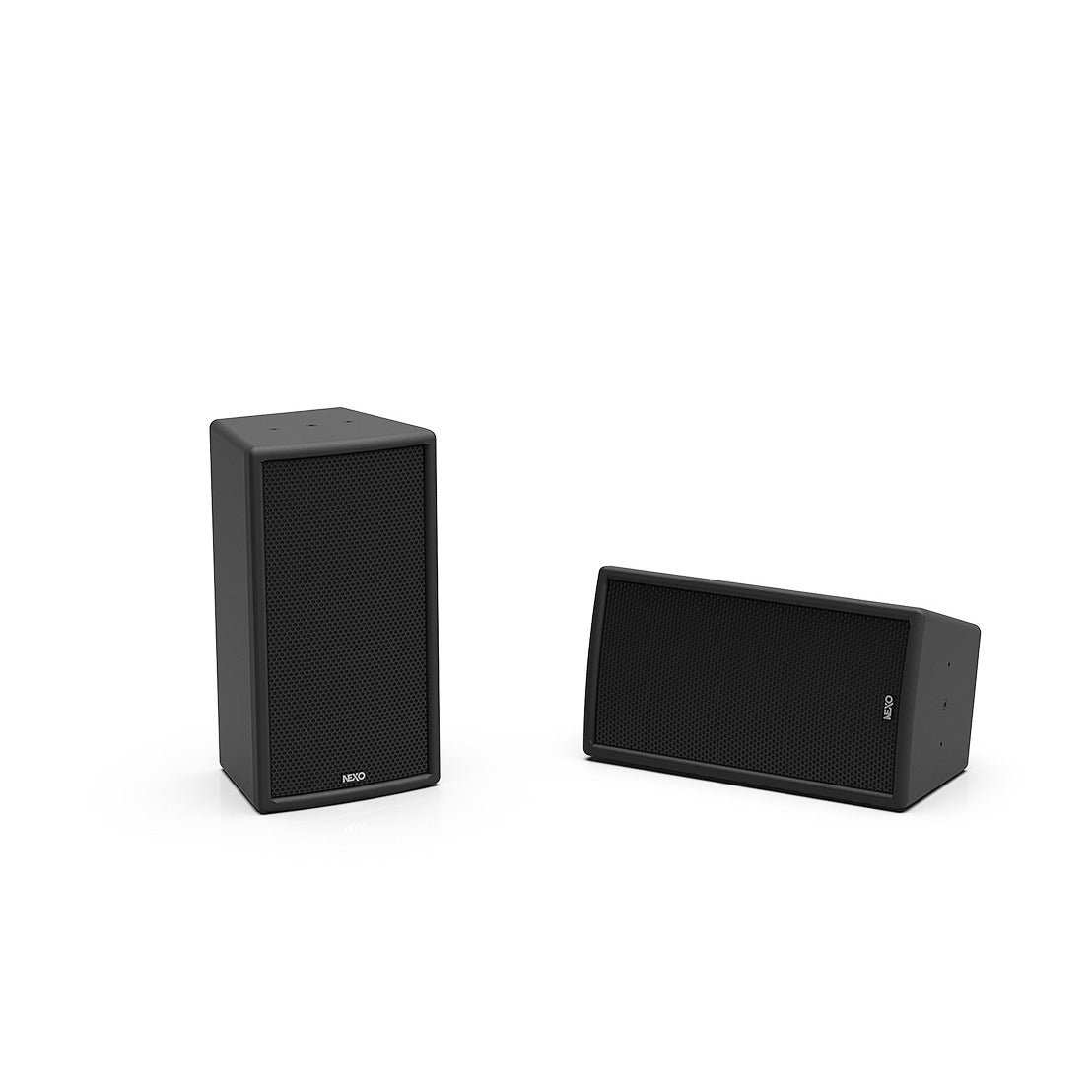

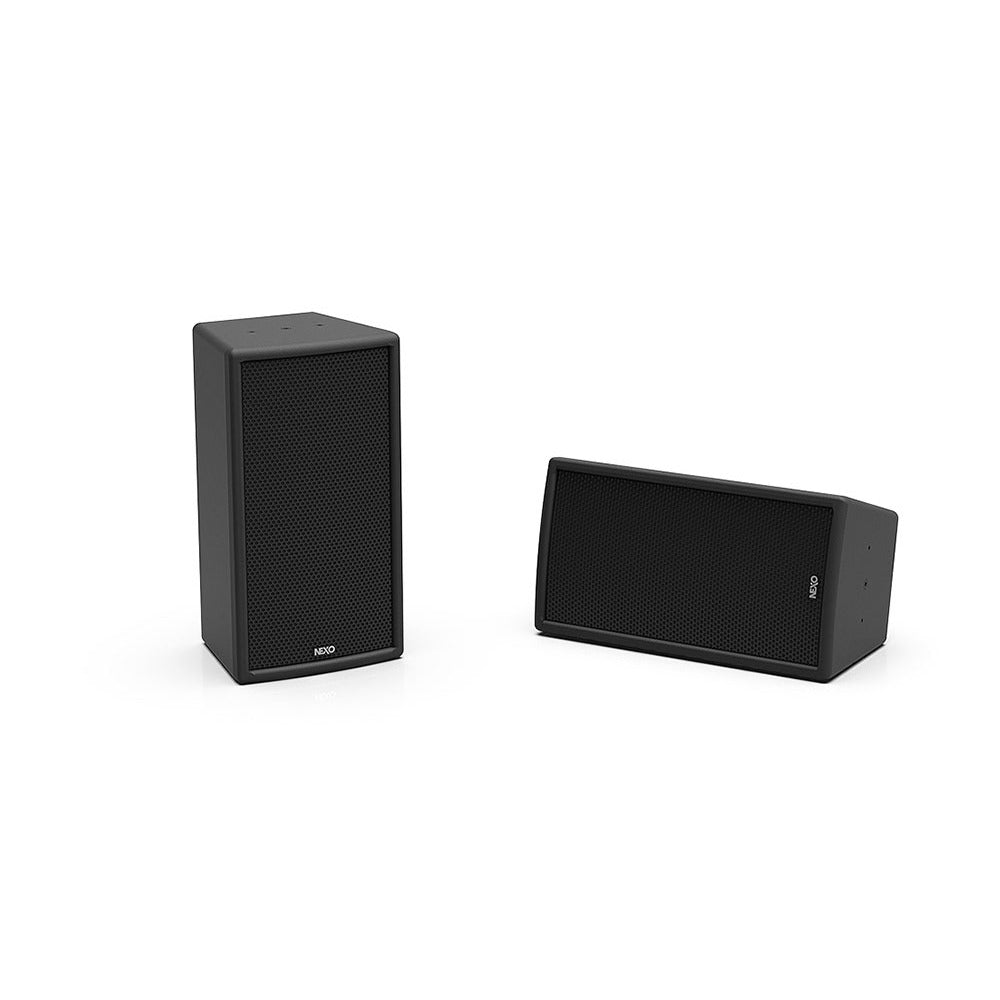

The NEXO ePS6-EN54 is a 2-way passive installation loudspeaker featuring a 6-inch long-excursion LF driver paired with a 1.4-inch diaphragm HF driver mounted on NEXO's rotatable Asymmetrical Dispersion (PS) horn. Housed in a 15 mm birch plywood enclosure with a galvanized grille, it is designed for fixed installation applications that require EN54-24 certification for life-safety voice alarm systems.

The ePS6-EN54 delivers a frequency response of 90 Hz to 20 kHz (+6 dB), a sensitivity of 98 dB SPL (1 W/1 m) and a maximum SPL of 125 dB, with a nominal impedance of 8 Ohms. Its asymmetrical horn provides +25°/-30° vertical and 50° to 100° adjustable horizontal dispersion, allowing flexible coverage patterns for a range of installation environments.

Connections are made via two pairs of 5 mm pitch push-in cage clamp terminal blocks (In/Out), with a recommended amplifier power of 490 W and a nominal EN54-24 input voltage of 22 Vrms. The cabinet operates across an extended -40°C to 70°C temperature range and weighs 7.1 kg. Finished in black, it ships with an IP cover for its connectors and is backed by a 5-year warranty.

• EN54-24 certified for life-safety voice alarm installations
• 6-inch LF driver with 1.4-inch HF diaphragm on rotatable PS horn
• 125 dB maximum SPL, 98 dB sensitivity
• 8 Ohms nominal impedance, 490 W recommended power
• 5-year warranty
