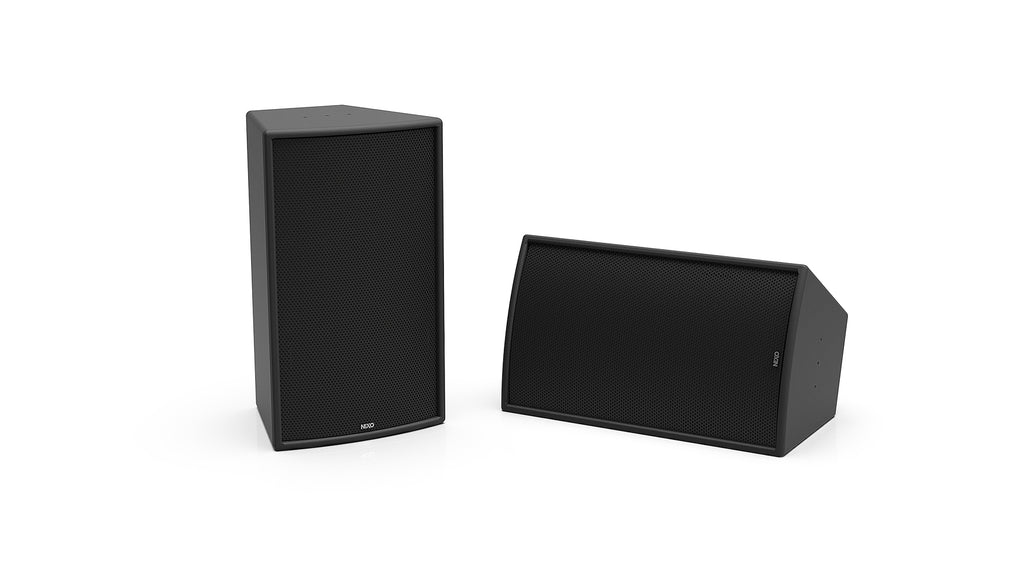

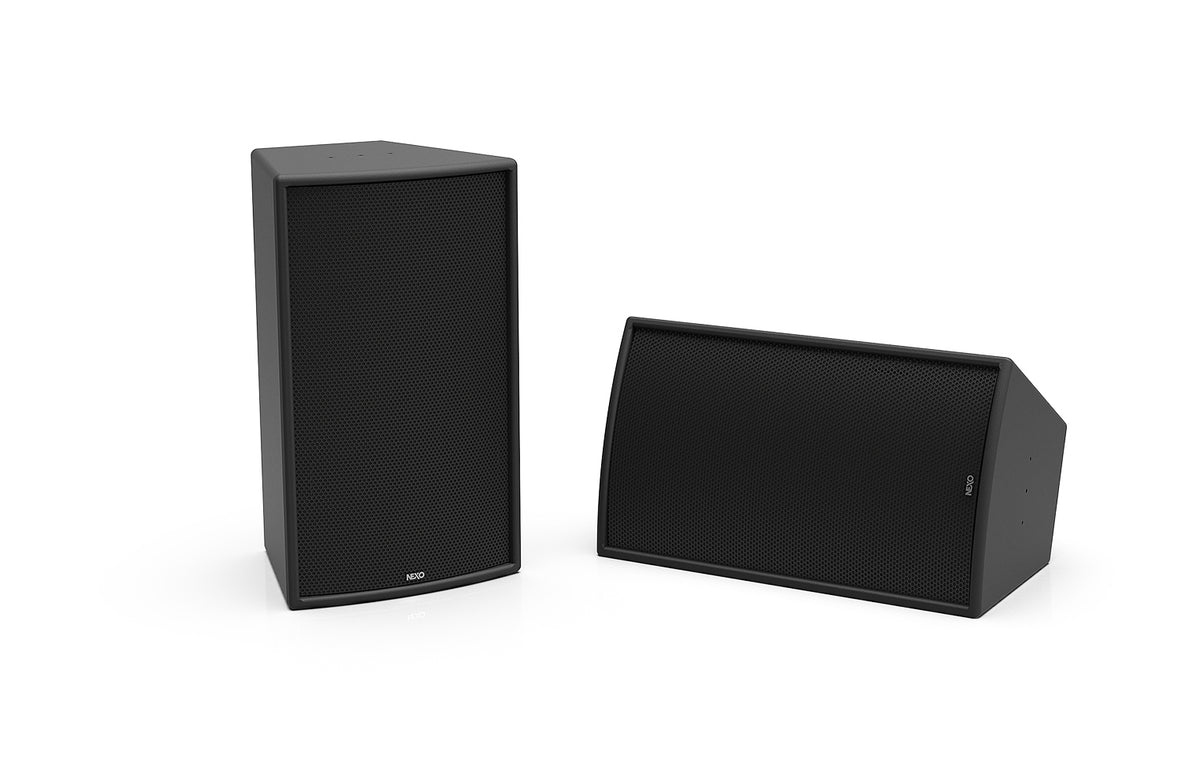

NEXO ePS10-EN54 10-inch Horn-Loaded 2-Way Loudspeaker, Installation Version, Black

The NEXO ePS10-EN54 is a compact, EN54-24 certified installation loudspeaker designed for fixed-install applications where life-safety voice alarm compliance is required. Its 2-way passive design pairs a 10-inch neodymium long-excursion LF driver with a 1.4-inch HF compression driver on NEXO's rotatable Asymmetrical Dispersion (PS) horn.

The ePS10-EN54 delivers 101 dB sensitivity and up to 130 dB peak SPL, with a frequency response of 70 Hz to 20 kHz (+6 dB) and 8 ohm nominal impedance. Horizontal dispersion is adjustable between 50° and 100°, with +25°/-30° vertical coverage, allowing the horn to be rotated for flexible installation.

Connections are made via two pairs of 5 mm pitch Push-in Cage Clamp terminal blocks for input and output loop-through. The enclosure is built from 15 mm birch plywood with a polyurethane coating and galvanized grille, rated for operation from -40°C to 70°C. The loudspeaker ships with an IP cover for connectors and is backed by a 5-year warranty.

• 10-inch 2-way passive, horn-loaded design
• 130 dB peak SPL, 101 dB sensitivity
• EN54-24 certified for life-safety installations
• Rotatable Asymmetrical Dispersion (PS) horn, 50°-100° horizontal
• Operating range -40°C to 70°C, IP cover included
