NEXO ePS10-EN54 10-inch 2-Way Horn-Loaded Loudspeaker, Installation Version, White

The NEXO ePS10-EN54 is a 2-way passive loudspeaker purpose-built for fixed installations requiring EN54-24 life-safety certification, such as voice alarm and evacuation sound systems. It pairs a 10-inch long-excursion neodymium LF driver with a 1.4-inch diaphragm HF driver mounted on NEXO's rotatable Asymmetrical Dispersion (PS) horn, delivering 50° to 100° horizontal and +25°/-30° vertical coverage.

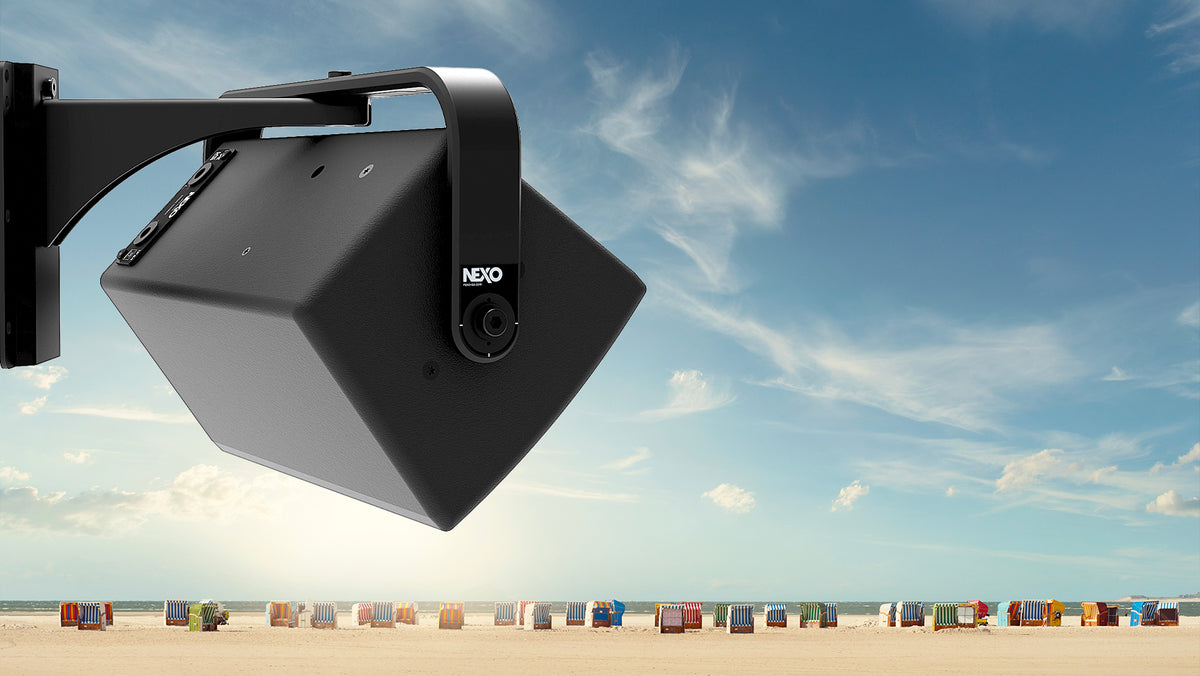

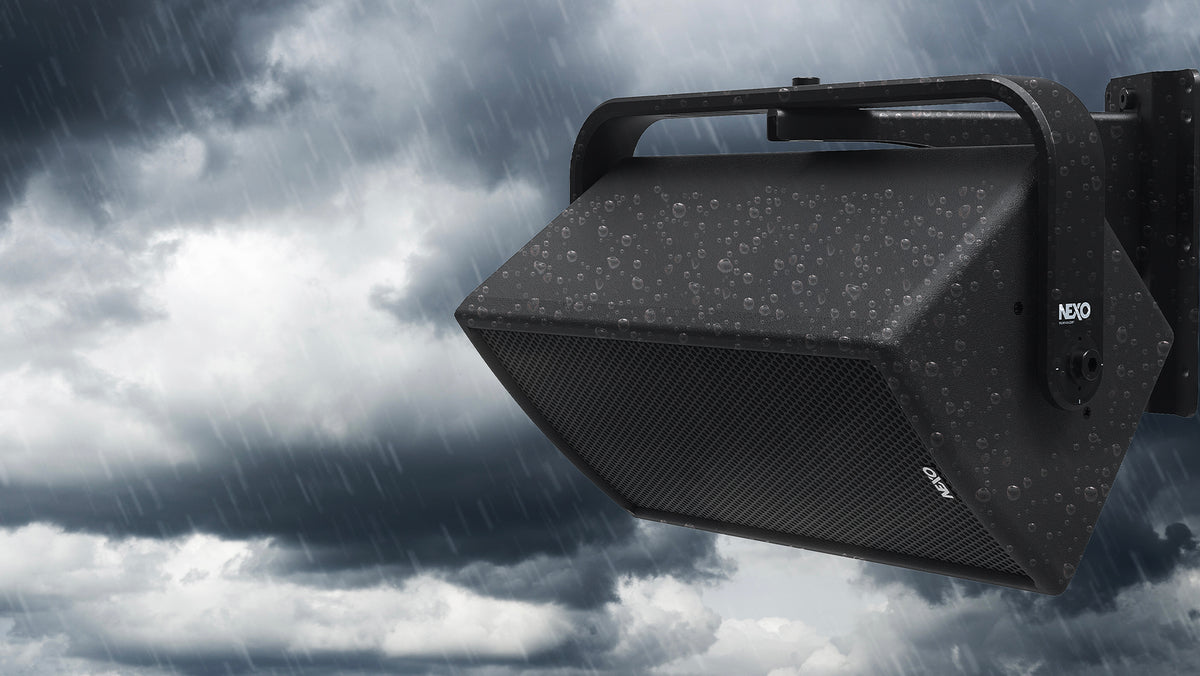

With a sensitivity of 101 dB and a maximum SPL of 130 dB peak, the ePS10-EN54 covers a frequency range of 70 Hz to 20 kHz (+6 dB) at 8 ohms nominal impedance, recommended for amplifiers up to 800 W. The enclosure is built from 15 mm birch plywood with a polyurethane coating and a galvanized grille, rated IP55 for all-weather resistance, and operates across a -40°C to 70°C temperature range.

Connections are made via two pairs of 5 mm pitch Push-in Cage Clamp terminal blocks (In/Out), simplifying daisy-chained installations. The white-finished cabinet weighs 14.8 kg and measures 316 x 531 x 285 mm, and ships with an IP cover for the connectors. NEXO backs the ePS10-EN54 with a 5-year warranty.

• EN54-24 certified, IP55 rated
• 10-inch LF driver + 1.4-inch HF driver on PS horn
• 130 dB peak SPL, 101 dB sensitivity
• 8 ohms, 800 W recommended power
• 316 x 531 x 285 mm, 14.8 kg
