NEXO 45N-12 12-inch Coaxial 2-Way Wedge Monitor, Black

The NEXO 45N-12 is a 12-inch coaxial wedge stage monitor designed for touring and live sound reinforcement, combining a high excursion Neodymium LF driver with a compression driver on a hyperboloid reflective wavesource to bring NEXO's line array technology directly to the stage.

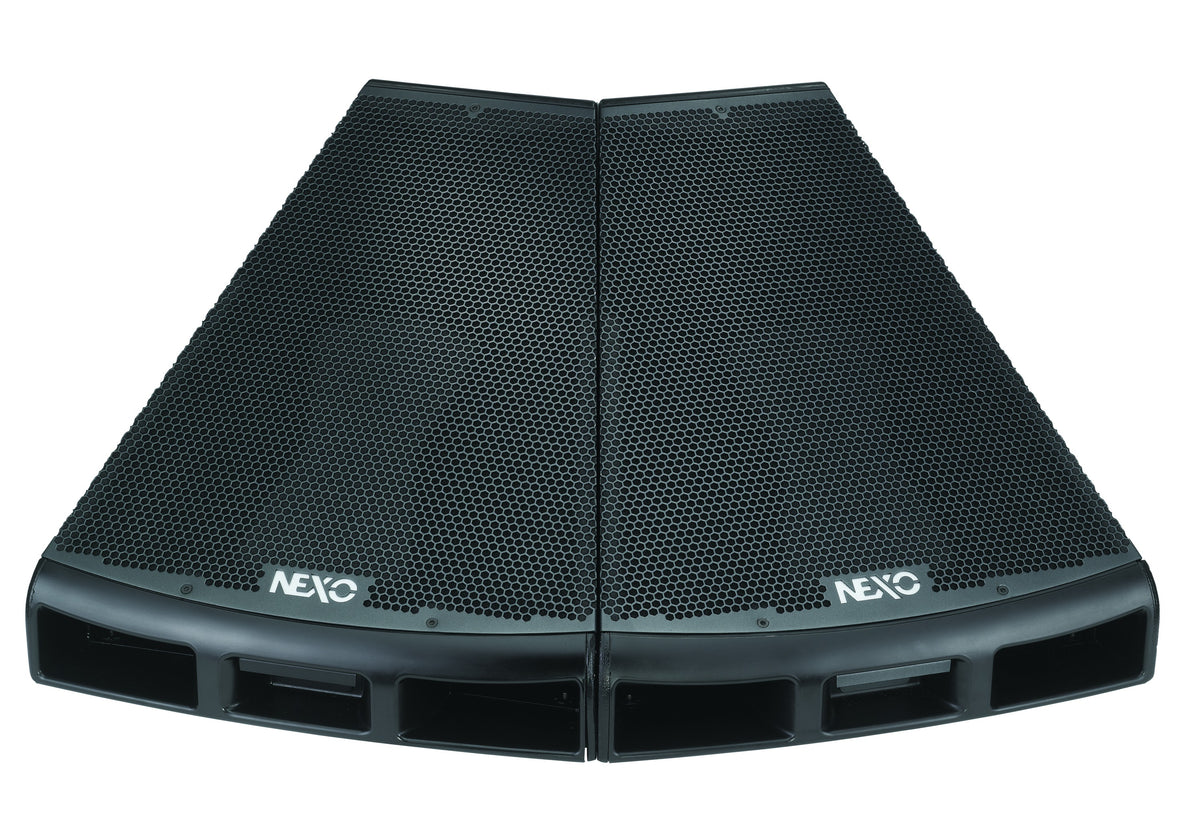

With a frequency response of 55 Hz – 19 kHz ±3 dB, a sensitivity of 106 dB and a maximum SPL of 140 dB peak, the 45N-12 delivers high headroom before feedback while focusing coverage only where needed, reducing acoustic spill on stage. Multiple units can be joined into arrays for wider coverage and higher SPL.

The enclosure features a low-profile design with a magnetic locking system for joining units, a non-slip base with skid system and an ergonomic handle for easy repositioning. Connection is via 2x NL4MP Speakon 4-pole inputs, with a recommended amplifier power of 2,000 W.

• Driver configuration: 1x 12-inch Neodymium LF + 1x 3-inch Neodymium compression driver
• Frequency response: 55 Hz – 19 kHz ±3 dB
• Max SPL: 140 dB peak
• Dispersion: 30° horizontal, 60° vertical (asymmetrical)
• Dimensions: 492 x 392 x 576 mm, 24 kg
