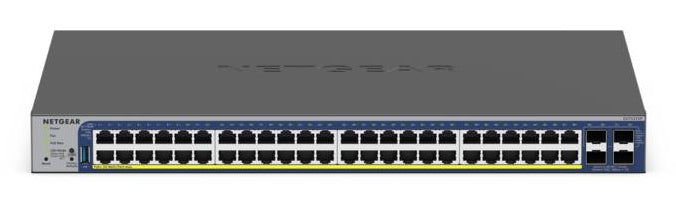

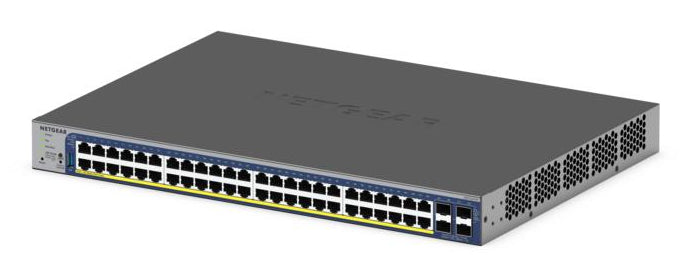

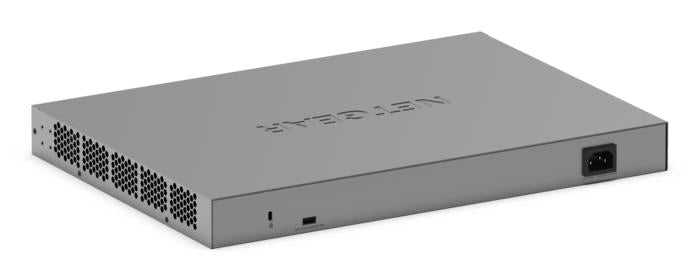

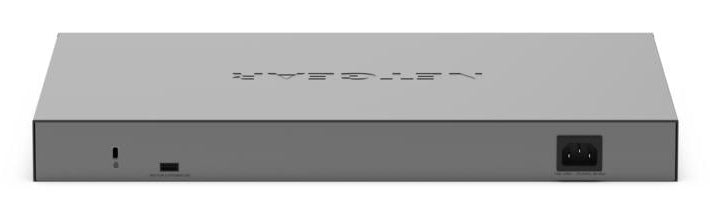

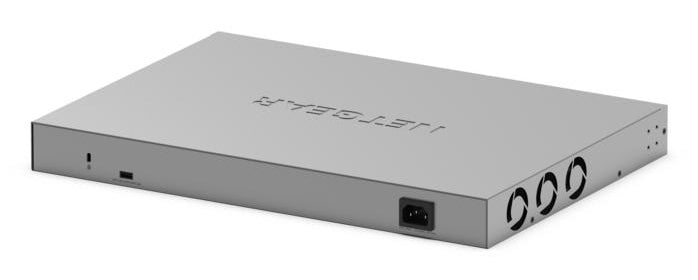

Netgear GS752TXP 52-Port PoE+ Switch with 10G SFP+

Specifications

Management features

• Switch type: Managed
• Switch layer: L2/L3/L4

Ports & interfaces

• Basic switching RJ-45 Ethernet ports quantity: 48
• Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
• SFP+ module slots quantity: 4

Network

• Networking standards: IEEE 802.1ab, IEEE 802.1as, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• 10G support: Yes
• Port mirroring: Yes
• Full duplex: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Broadcast storm control: Yes
• Rate limiting: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: Voice VLAN

Data transmission

• MAC address table: 16000 entries
• Latency (10 Gbps): 4.107 µs
• Static route: Yes
• Number of static routes: 32
• Packet buffer memory: 16 MB

Security

• DHCP features: DHCP client
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• MAC address filtering: Yes
• SSH/SSL support: Yes

Design

• Rack mounting: Yes
• Stackable: Yes
• Product colour: Black

Performance

• Built-in processor: Yes
• Flash memory: 64 MB
• Noise level: 36.6 dB
• Mean time between failures (MTBF): 1296949 h

Power

• Power source: AC
• Power supply included: Yes
• Power consumption (max): 51 W

Power over Ethernet (PoE)

• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 48
• Total Power over Ethernet (PoE) budget: 380 W

Operational conditions

• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -20 - 70 °C
• Operating relative humidity (H-H): 0 - 95%
• Storage relative humidity (H-H): 0 - 95%
• Operating altitude: 0 - 3000 m
• Non-operating altitude: 0 - 3000 m
• Heat dissipation: 2944.6 BTU/h

Weight & dimensions

• Width: 440 mm
• Depth: 345 mm
• Height: 43 mm
• Weight: 5.54 kg
