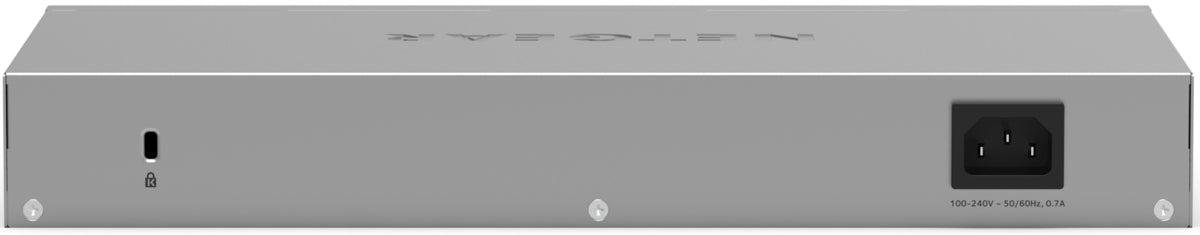

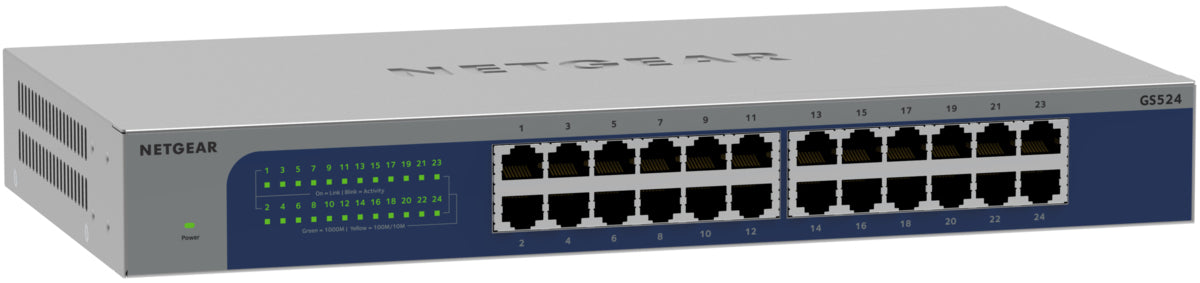

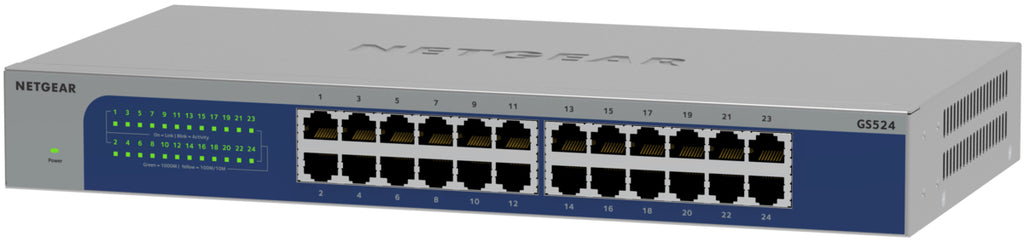

Netgear GS524 24-Port Gigabit Unmanaged Switch

Key features

• 16 or 24 ports deliver up to 2000Mbps of dedicated, non-blocking bandwidth per port
• Instant Plug-N-Play connectivity with Auto-negotiation and Auto MDI/MDI-X
• Easily combine new or existing 10- 100- and 1000Mbps devices within your network
• 802.1p QoS support for prioritizing voice and video in the network
• Jumbo Frame Support up to 9KB
• Fast, auto-switching and auto-sensing 10/100/1000Mbps Ethernet connection
• 16 or 24 switched ports provide bandwidth for PCs, servers or switches
• Auto Uplink™ automatically adjusts for straight-through or crossover cables
• Plug and play—begins working as soon as it is powered on
• Compact size for desktop, wall mount or rack mount in a standard 19-inch rack
• Secure, durable metal housing includes a Kensington locking slot for theft prevention
• Backed by a NETGEAR Limited Lifetime Warranty
• Honors TOS/802.1p prioritization
• Up to 50% lower power consumption
• Auto power-down mode saves energy when port is unused
• Auto green mode detects cable length and adjusts power usage to save energy
• Packaging manufactured with at least 80% recycled materials

Specifications

Management features

• Switch type: Unmanaged

Ports & interfaces

• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

• Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• Full duplex: Yes

Data transmission

• Switching capacity: 48 Gbit/s
• MAC address table: 8000 entries
• Latency (10-100 Mbps): 35 µs
• Latency (1 Gbps): 15 µs

Protocols

• Switching protocols: Ethernet

Design

• Product colour: Grey

Performance

• Mean time between failures (MTBF): 1016877 h

Power

• Power source: AC
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Power consumption (max): 12 W

Power over Ethernet (PoE)

• Power over Ethernet (PoE): No

Operational conditions

• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -20 - 70 °C
• Operating relative humidity (H-H): 0 - 90%
• Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

• Width: 328 mm
• Depth: 169 mm
• Height: 43 mm
• Weight: 1.47 kg

Certificates

• Compliance certificates: CE, Federal Communications Commission (FCC), ISED, UKCA, VCCI
