Netgear

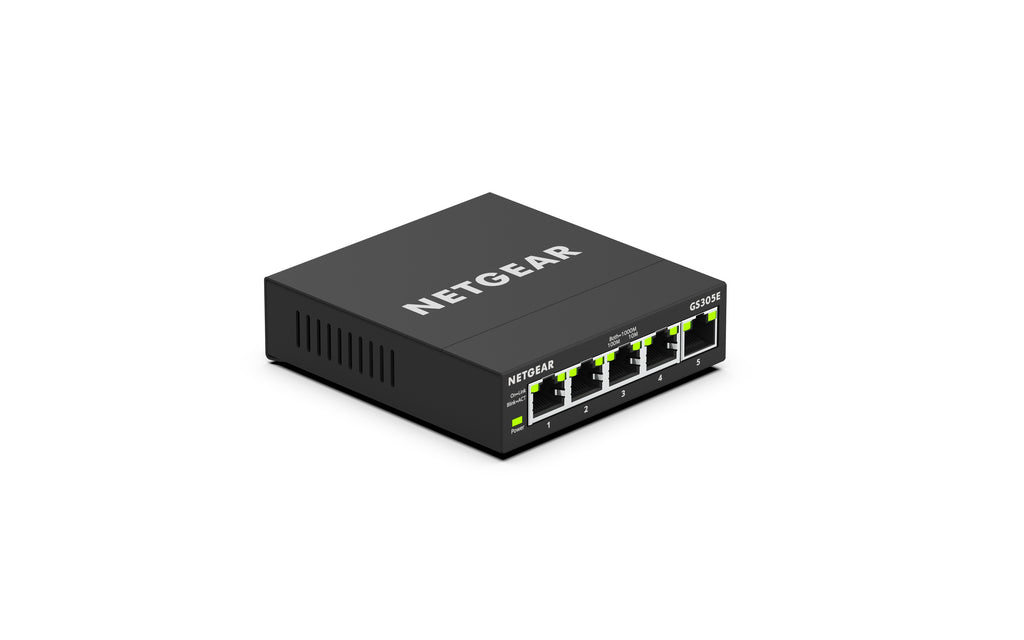

Netgear GS305E 5-Port Switch
Manufacturer Part No.: GS305E-100PESSKU: 35020
NETGEAR ® Smart Managed Plus Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. Smart Managed Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.
Key features
- Enable network configuration and management at the price point of Unmanaged Switches
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Flexible management via easy-to-use web browser-based management GUI or using the PC-based Utility application
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto “denial-of-service” (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop detection and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Virtual Cable Test (VCT): Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: No
- Rate limiting: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN, Port-based VLAN
- Number of VLANs: 64
Data transmission
- Switching capacity: 10 Gbit/s
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
- Loop protection: Yes
- Password protection: Yes
- DoS attack prevention: Yes
Design
- Rack mounting: No
- Product colour: Black
- LED indicators: Activity, Link, Power, Speed, System
Performance
- Noise level: 0 dB
- Buffer size: 128 KB
- Mean time between failures (MTBF): 2531294 h
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Other features
- Warranty period: 3 year(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 3000 m
Weight & dimensions
- Width: 94 mm
- Depth: 100 mm
- Height: 27 mm
- Weight: 250 g
Technical details
- Shipping (inner) case height: 28 cm
- Shipping (inner) case width: 49.7 cm
- Shipping (inner) case length: 34.4 cm
- Shipping (inner) case net weight: 10.1 kg
- Products per shipping (inner) case: 15 pc(s)
